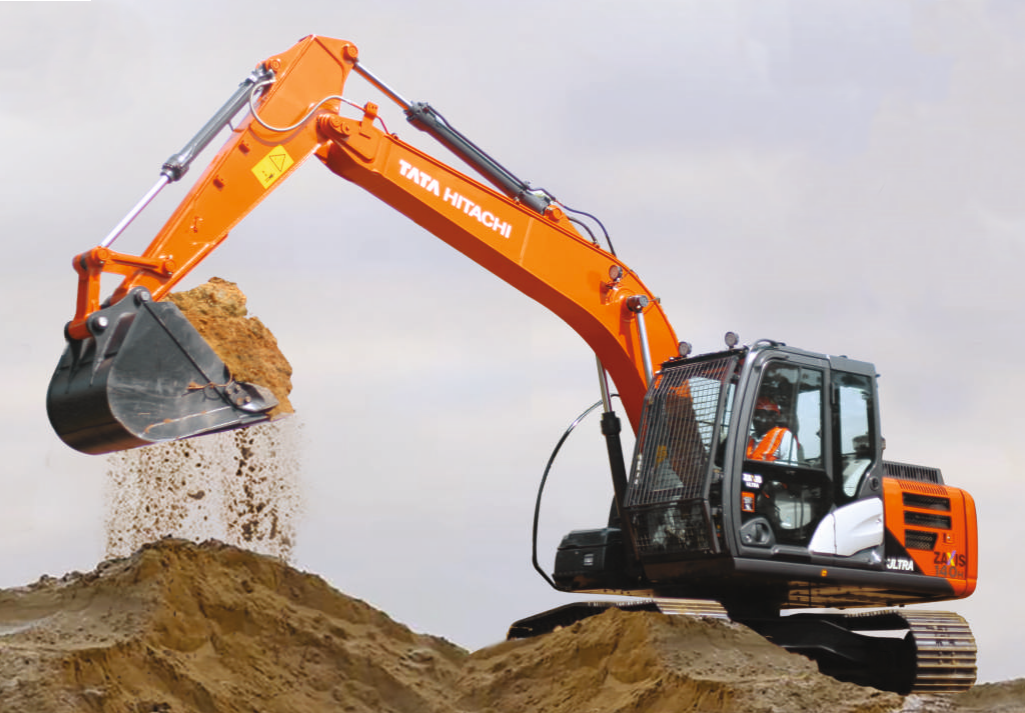

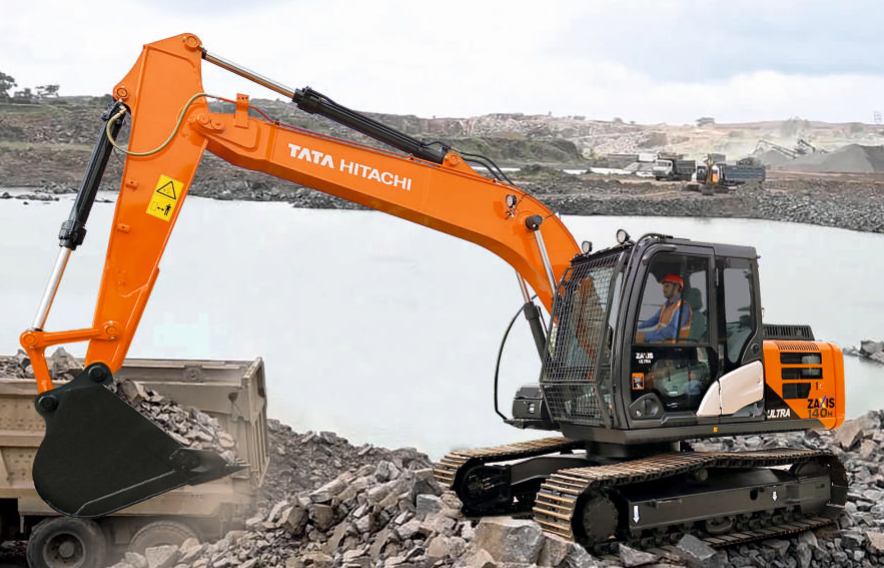

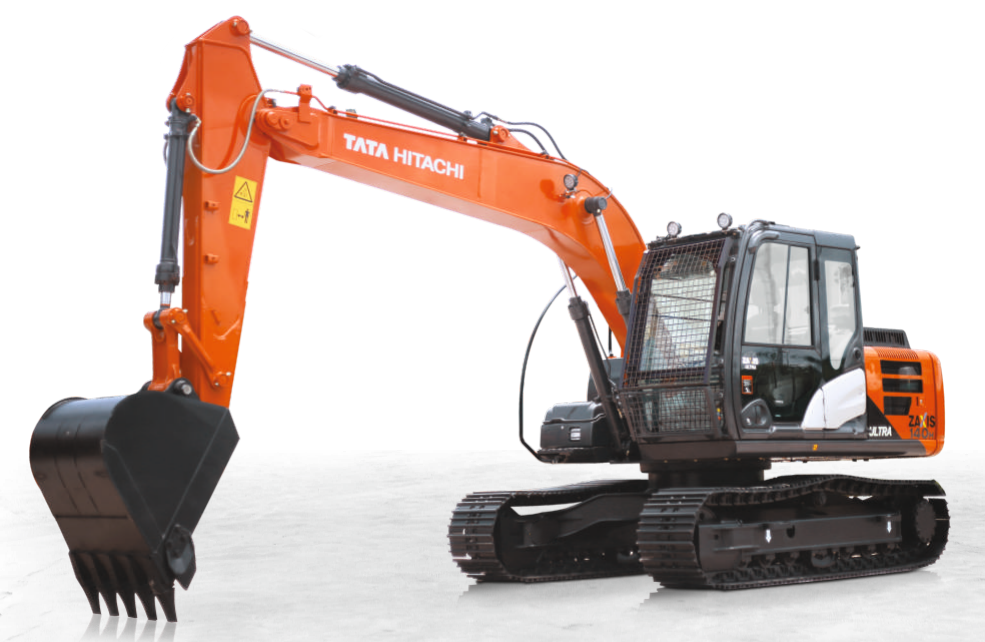

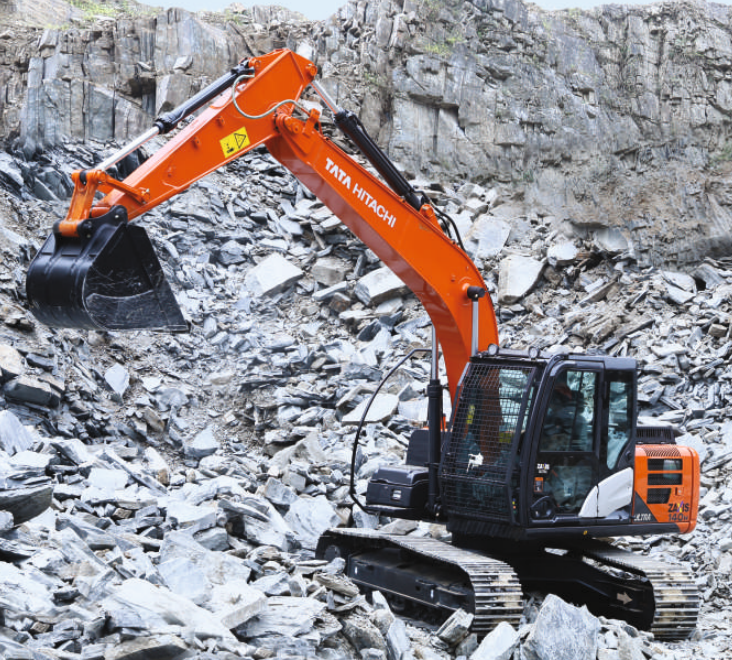

Tata Hitachi ZAXIS 140H ULTRA

Tata Hitachi ZAXIS 140H Ultra Hydraulic Excavator is a reliable partner for large-scale projects, whether in municipal tasks, desilting operations, or construction sites. With a focus on fuel efficiency and hydraulic innovations, it delivers maximum output while minimizing operating expenses. ZAXIS 140H Ultra hydraulic excavator provides power, efficiency, and precision, enabling you to complete your projects with confidence and effectiveness. Tata Hitachi ZAXIS 140H Ultra features a powerful engine with a gross power of 88.5 HP and an operating weight of 13,360 kg, designed to handle tough tasks effortlessly. With a versatile bucket capacity of 0.45 to 0.7 m³, it is suitable for various excavation needs, from light material handling to demanding applications. Its impressive bucket digging force of 10,600 kgf ensures efficient digging in challenging conditions, while a maximum digging depth of 5150 mm to 6060 mm provides exceptional reach and precision for deep excavation projects. Tata Hitachi ZAXIS 140H Ultra features the advanced HIOS 3 Hydraulic System, which enhances hydraulic efficiency for faster cycle times and smoother operation. Combined with the hydraulic boosting system, this technology ensures higher production with reduced fuel consumption, making it a cost-effective solution. Additionally, the Eco Mode further decreases fuel usage, contributing to lower operating costs and greater environmental sustainability.

Tata Hitachi ZAXIS 140H ULTRA Features

Engine
Model	Isuzu CC-4BG1T	Type	4-cycle water-cooled, direct injection
Engine Gross Power	88.5 HP(66.0 KW) @ 2150 rpm	Max. Torque	347 Nm @ 1600 rpm
Displacement	4.329 L

Undercarriage
No. of Shoes	44	No. of Upper Rollers	1
No. of Bottom Rollers	7	Track Shoe Width	500 mm

Swing System
Max. Swing Speed	13.7 rpm	Min. Swing Radius	2310-2590 mm

Drive and Brake
Max. Travel Speed	5.5 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps	Main Pump max. Oil Flow	2x105 lpm
Swing Circuit	330 kgf/cm²	Travel Circuit	350 kgf/cm²

Refill Capacity
Fuel Tank Capacity	250 L	Engine Oil and Filter	18.5 L
Hydraulic System	170 L	Hydraulic Tank Capacity	69 L

Weight and Ground Pressure
Operating Weight	13360 kg	Ground Pressure	0.42 kgf/cm²

Dimensions
Overall Length	7658-7710 mm	Overall Height	2718 mm
Bucket Capacity	0.45-0.7 m³	Track Gauge	1990 mm
Ground Clearance	440 mm

Working Ranges
Max. Dumping Height	5960-6490 mm	Max. Digging Depth	5150-6060 mm
Max. Vertical Wall Digging Depth	4650-5500 mm	Max. Digging Reach	7900-8740 mm
Max. Digging Reach at Ground Level	7770-8620 mm	Arm Length	2.10-3.01 m
Bucket Digging Force	10600 kgf	Arm Crowding Force	7900 kgf

Engine
Model	Isuzu CC-4BG1T
Type	4-cycle water-cooled, direct injection
Engine Gross Power	88.5 HP(66.0 KW) @ 2150 rpm
Max. Torque	347 Nm @ 1600 rpm
Displacement	4.329 L

Undercarriage
No. of Shoes	44
No. of Upper Rollers	1
No. of Bottom Rollers	7
Track Shoe Width	500 mm

Swing System
Max. Swing Speed	13.7 rpm
Min. Swing Radius	2310-2590 mm

Drive and Brake
Max. Travel Speed	5.5 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps
Main Pump max. Oil Flow	2x105 lpm
Swing Circuit	330 kgf/cm²
Travel Circuit	350 kgf/cm²

Refill Capacity
Fuel Tank Capacity	250 L
Engine Oil and Filter	18.5 L
Hydraulic System	170 L
Hydraulic Tank Capacity	69 L

Weight and Ground Pressure
Operating Weight	13360 kg
Ground Pressure	0.42 kgf/cm²

Dimensions
Overall Length	7658-7710 mm
Overall Height	2718 mm
Bucket Capacity	0.45-0.7 m³
Track Gauge	1990 mm
Ground Clearance	440 mm

Working Ranges
Max. Dumping Height	5960-6490 mm
Max. Digging Depth	5150-6060 mm
Max. Vertical Wall Digging Depth	4650-5500 mm
Max. Digging Reach	7900-8740 mm
Max. Digging Reach at Ground Level	7770-8620 mm
Arm Length	2.10-3.01 m
Bucket Digging Force	10600 kgf
Arm Crowding Force	7900 kgf
