Tata Hitachi EH 3500AC-3
Tata Hitachi EH 3500AC-3

Tata Hitachi EH 3500AC-3

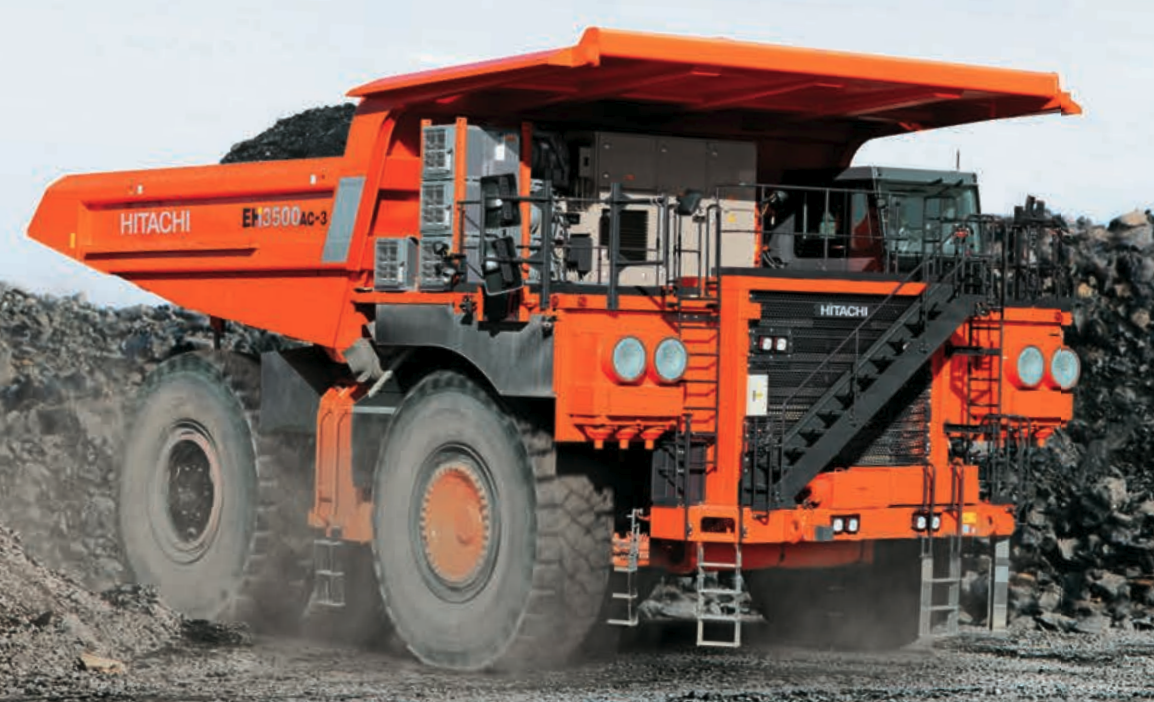

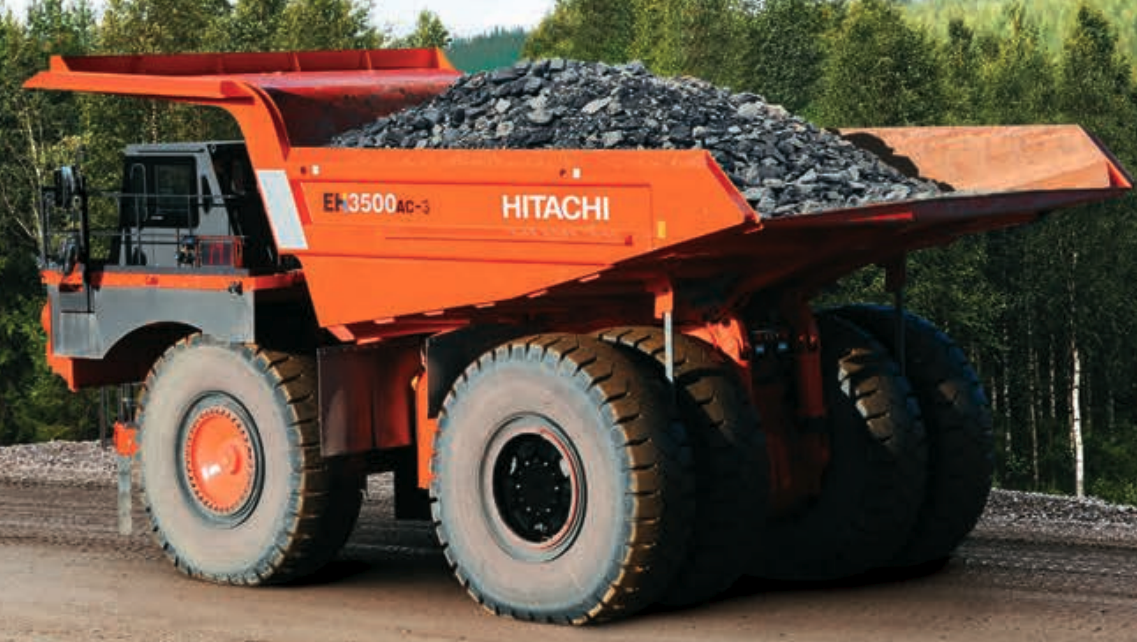

The Tata Hitachi EH3500AC-3 is designed for heavy-duty work such as the oil industry, large construction sites, the gas industry, forestry, and many more. Its large bucket size helps in material handling tasks as well.


The EH3500AC-3 dump truck has the latest technology, like an electric braking system, auto cruise control, a side skid control system, an auto retreading system, and many more. It is built from hard materials, which can help to smoothly operate tasks in difficult terrain.


The Tata Hitachi EH3500AC-3 dump truck comes with a 2000 hp engine for faster machine movement, a 322,000 kg operating weight capacity, and a standard fuel tank capacity of 2040 L, providing fewer transport cycles.

Tata Hitachi EH 3500AC-3 Key Specifications

Tata Hitachi EH 3500AC-3 Features

Engine

Model Cummins QSKTA50-CE
Engine Gross Power 2000 HP(1491 KW) @ 1900 rpm
Max. Torque 7871 Nm @ 1500 rpm
No. of Cylinders 16
Displacement 50.3 L

Electrical System

Battery 24 V, 140 Ah
Alternator MTU engine driven Alternator
Starting Motor 24 Volt electronic

Drive and Brake

Service Brake Dry disc
Parking Brake Spring applied, hydraulically released brake

Tyres

Tyre size 37.00R57
Rim size 736.6 mm

Susepension

Front Suspension Type Independent Trailing arms make up the front axle
Rear Suspension Type "A" frame Structure, integral with axle housing

Refill Capacity

Fuel Tank Capacity 2040 L
Cooling System Capacity 531 L

Operating Specifications

Gross Vehicle Weight 324000 kg
Payload Weight 178 T

Dimensions

Overall Length 13560 mm
Overall Height 7000 mm
Overall Width 6040 mm
Ground Clearance 1040 mm
Wheelbase 5620 mm
