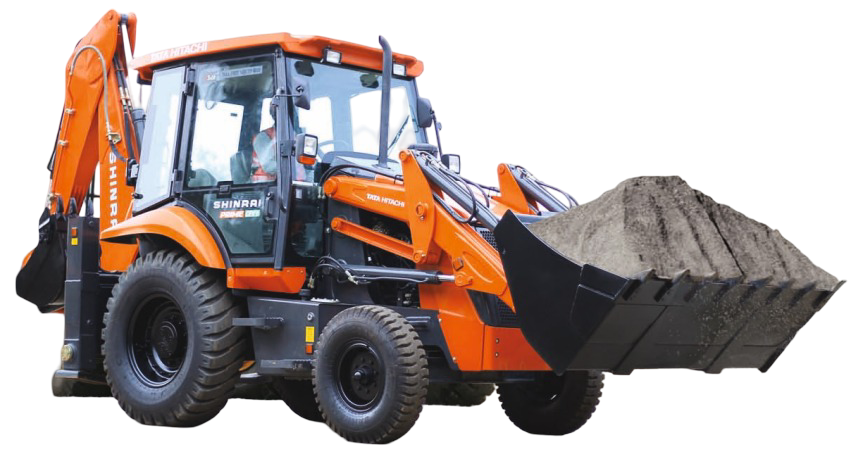

Tata Hitachi Shinrai Prime is a premier backhoe loader designed to excel in various applications, including solid waste management, building construction, quarry operations, agriculture, and crusher tasks. With its powerful performance and precision engineering, Tata Hitachi Shinrai Prime enhances productivity and efficiency across diverse projects. Ensuring your tasks are completed with the reliability and performance that only Tata Hitachi Shinrai Prime can deliver. Experience the perfect blend of power and versatility with the Shinrai Prime Backhoe Loader for all your heavy-duty needs. Tata Hitachi Shinrai Prime is powered by a robust 74.3 HP engine and features an impressive operating weight of 8050 KG (standard) or 8150 KG (4WD), ensuring stability and strength on any job site. Designed for versatile material handling, Shinrai Prime backhoe loader has a backhoe bucket capacity ranging from 0.26 to 1.1 m³ and offers a remarkable maximum digging depth of 4700 mm for deep excavations. Additionally, with a powerful bucket digging force of 5685 kgf, the Shinrai Prime Backhoe Loader guarantees efficiency and productivity for all your digging and lifting tasks, making it the ideal choice for construction, agriculture, and various heavy-duty applications. Tata Hitachi Shinrai Prime Backhoe Loader stands out with its advanced Engine Control Unit (ECU), which incorporates a Common Rail Direct Injection (CRDI) system to optimize fuel efficiency and reduce emissions. This sophisticated technology, along with the engine-mounted after-treatment device (DOC - Diesel Oxidation Catalyst), not only ensures superior performance but also aligns with environmental standards, making the Shinrai Prime Backhoe Loader a top choice for eco-friendly and efficient operations in modern construction and agricultural projects.
Engine | |||
---|---|---|---|
Make | Tata Hitachi | Model | V3800-TIE4B |
Engine Gross Power | 74.3 HP(55.4 KW) @ 2200 rpm | Max. Torque | 305 Nm @ 1500 rpm |
Electrical System | |||
---|---|---|---|
Battery | 12 V, 130 Ah |
Transmission | |||
---|---|---|---|
Max. Forward Speed | 32 km/h | Max. Reverse Speed | 9 km/h |
Transmission Type | Carraro-make synchro-shuttle transmission |
Steering System | |||
---|---|---|---|
Steering Type | Hydraulic actuation with priority for smooth control |
Drive and Brake | |||
---|---|---|---|
Service Brake | Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces | Parking Brake | Hand-operated disc brake on the rear axle |
Tyres | |||
---|---|---|---|
Front Tyre size | 9x16, 16 PR | Rear Tyre size | 16.9x28, 12 PR |
Hydraulic System | |||
---|---|---|---|
Max. Pump Flow | 113 lpm @ 1950 rpm | Hydraulic System Relief Pressure | 245 bar |
Axles | |||
---|---|---|---|
Front Axle Type | Heavy-duty, non-powered axle | Rear Axle Type | rear heavy-duty Carraro axle |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 128 L | Engine Oil Capacity | 13.2 L |
Transmission Oil Capacity | 16 L | Rear Axle Oil Capacity | 17.1 L |
Dimensions | |||
---|---|---|---|
Dump Height | 2690 mm | Load over Height | 3305 mm |
Reach at Ground Level | 1620 mm | Max. Reach at Full Height | 1332 mm |
|
Engine | |
---|---|
Make | Tata Hitachi |
Model | V3800-TIE4B |
Engine Gross Power | 74.3 HP(55.4 KW) @ 2200 rpm |
Max. Torque | 305 Nm @ 1500 rpm |
Electrical System | |
---|---|
Battery | 12 V, 130 Ah |
Transmission | |
---|---|
Max. Forward Speed | 32 km/h |
Max. Reverse Speed | 9 km/h |
Transmission Type | Carraro-make synchro-shuttle transmission |
Steering System | |
---|---|
Steering Type | Hydraulic actuation with priority for smooth control |
Drive and Brake | |
---|---|
Service Brake | Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces |
Parking Brake | Hand-operated disc brake on the rear axle |
Tyres | |
---|---|
Front Tyre size | 9x16, 16 PR |
Rear Tyre size | 16.9x28, 12 PR |
Hydraulic System | |
---|---|
Max. Pump Flow | 113 lpm @ 1950 rpm |
Hydraulic System Relief Pressure | 245 bar |
Axles | |
---|---|
Front Axle Type | Heavy-duty, non-powered axle |
Rear Axle Type | rear heavy-duty Carraro axle |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 128 L |
Engine Oil Capacity | 13.2 L |
Transmission Oil Capacity | 16 L |
Rear Axle Oil Capacity | 17.1 L |
Dimensions | |
---|---|
Dump Height | 2690 mm |
Load over Height | 3305 mm |
Reach at Ground Level | 1620 mm |
Max. Reach at Full Height | 1332 mm |
Arm Loader Break-out Force | 5488 kgf |
Loader Bucket Capacity | 1.1 m³ |
Max. Digging Depth | 4700 mm |
Bucket Pin Height | 3550 mm |
Below Ground Level Dig Depth | 110 mm |
Bucket Loader Breakout Force | 6580 kgf |
Side Reach to Center Line of Machine | 6050 mm |
|
