Hyundai R340L SMART
Hyundai R340L SMART

Hyundai R340L SMART

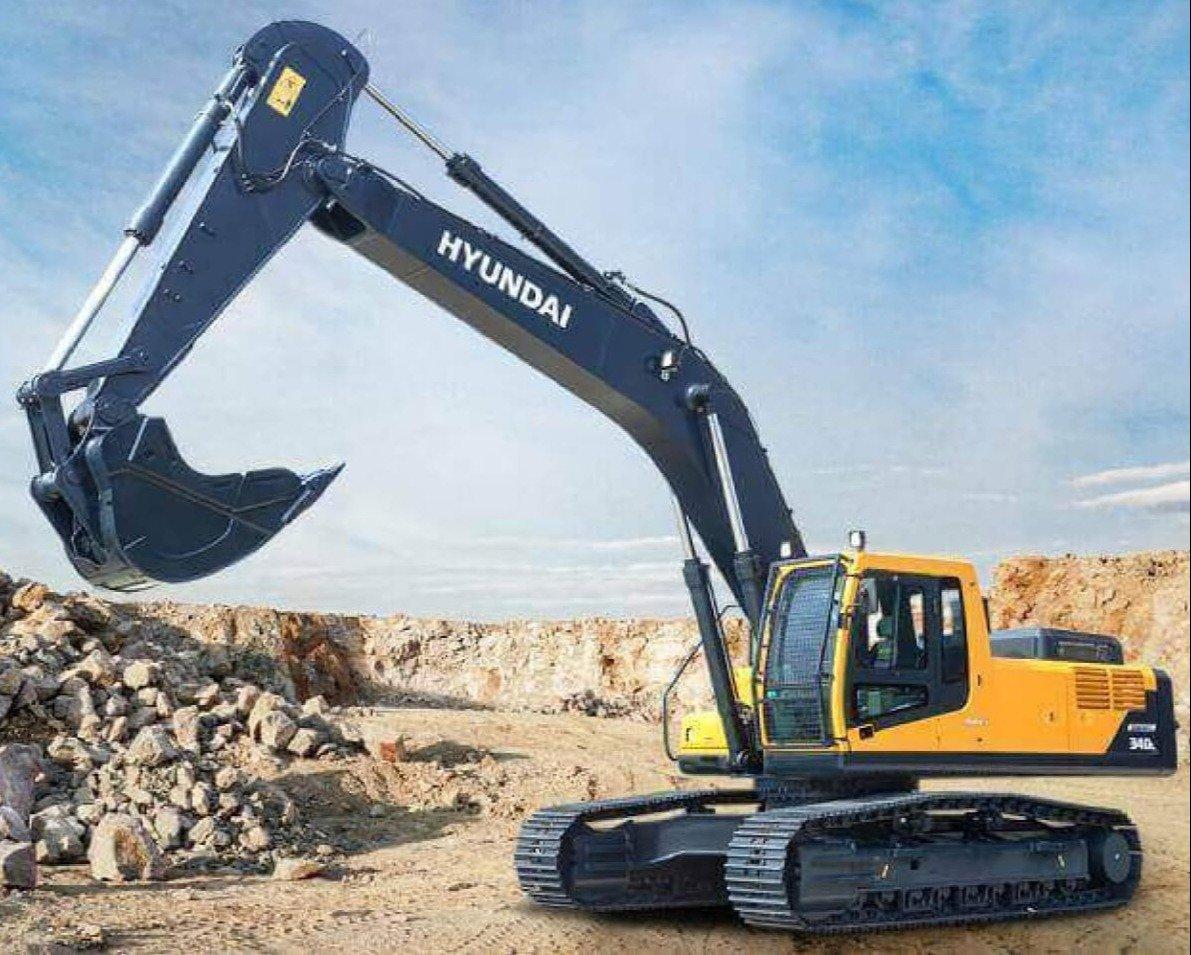

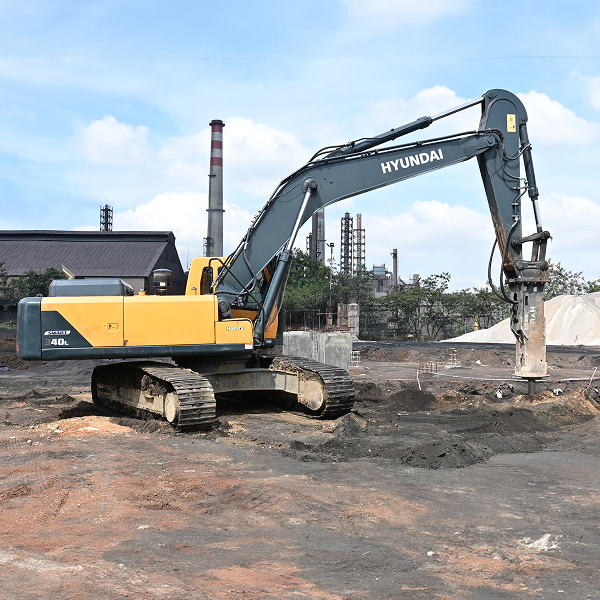

Hyundai R340L Smart Hydraulic Excavator is engineered for versatility, excelling in a broad spectrum of applications, including flood control, where it effectively manages and mitigates flood risks by digging trenches, ditches, and channels. It also excels in rubble removal, quickly and efficiently clearing debris from construction sites to ensure a clean and safe working environment. R340L Smart hydraulic Excavator is ideal for environmental remediation, capable of excavating contaminated soil and facilitating restoration projects that help restore the environment. Additionally, Hyundai R340L Smart supports agricultural development by assisting in various activities, including land clearing and preparation for farming operations, making it an invaluable asset across multiple industries.


Hyundai R340L Smart is powered by a robust engine with a gross power output of 276 hp, providing the strength needed for heavy-duty operations. It features a bucket capacity ranging from 1.44 to 2.1 m³, making R340L Smart Hydraulic Excavator highly versatile for various digging and material handling tasks. With a maximum digging depth of 6,305 to 6,820 mm, this excavator excels in deep excavation projects. Weighing in at 33,800 kg, it is designed to tackle demanding applications with stability and efficiency, making Hyundai R340L Smart Hydraulic Excavator a reliable choice for construction, environmental, and agricultural tasks.


Hyundai R340L Smart Hydraulic Excavator boasts several unique selling points that enhance its performance and efficiency on the job site. Powered by the Hyundai D6AC-C1 Diesel Engine, it delivers outstanding fuel efficiency and power, ensuring optimal performance while keeping operational costs low. The 2 Variable Displacement Piston Pump Type Hydraulic Main Pump provides precise control and superior hydraulic performance, significantly enhancing productivity across a range of applications. Its Axial Piston Motor Type Swing Motor ensures smooth operation and high torque, facilitating efficient maneuverability even in challenging environments. Additionally, the Multi Wet Disc Brake Type Swing Brake improves safety and reliability, offering better control of the excavator, particularly in complex working conditions.

Hyundai R340L SMART Key Specifications

Hyundai R340L SMART Features

Engine

Model HYUNDAI D6AC-C1
Engine Gross Power 276 HP(206 KW) @ 1900 rpm
Max. Torque 1176 Nm @ 1400 rpm

Undercarriage

No. of Shoes 48
No. of Upper Rollers 2
No. of Bottom Rollers 9
Track Shoe Width 600 mm

Swing System

Max. Swing Speed 9.5 rpm
Min. Swing Radius 4620-4840 mm

Drive and Brake

Max. Travel Speed 5.4 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement piston pumps
Main Pump max. Oil Flow 2x260 Ipm
Swing Circuit 265 kgf/cm²
Travel Circuit 330 kgf/cm²

Refill Capacity

Fuel Tank Capacity 570 L
Engine Oil and Filter 27.3 L
Hydraulic System 380 L
Hydraulic Tank Capacity 210 L

Weight and Ground Pressure

Operating Weight 33800 kg
Ground Pressure 0.65 kgf/cm²

Dimensions

Overall Length 11200-11310 mm
Overall Height 3090 mm
Bucket Capacity 1.44-2.1 m³
Track Gauge 2680 mm
Ground Clearance 500 mm

Working Ranges

Max. Dumping Height 6840-7120 mm
Max. Digging Depth 6305-6820 mm
Max. Vertical Wall Digging Depth 6320-5110 mm
Max. Digging Reach 10210-10710 mm
Max. Digging Reach at Ground Level 10010-10580 mm
Boom Length 6450 mm
Arm Length 2200-2650 mm
Bucket Digging Force 23000 kgf
Arm Crowding Force 16600 kgf
