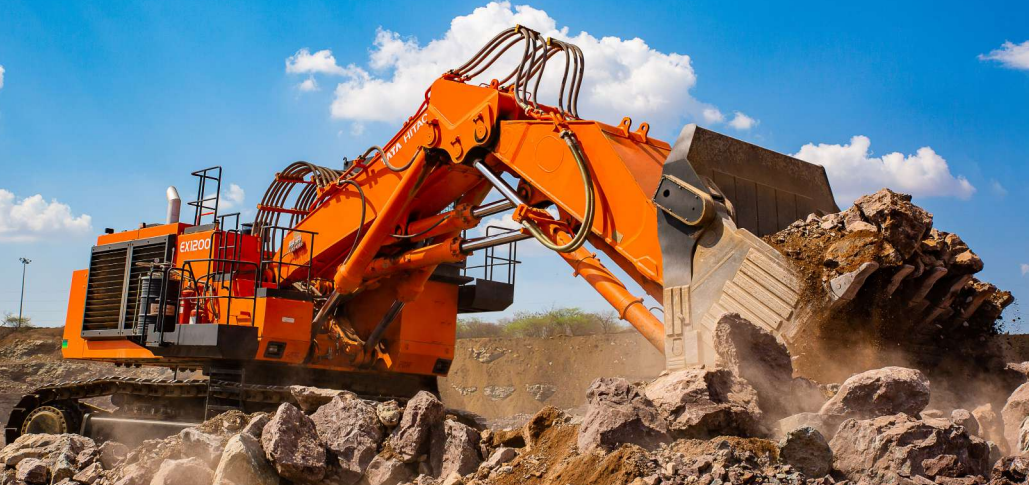

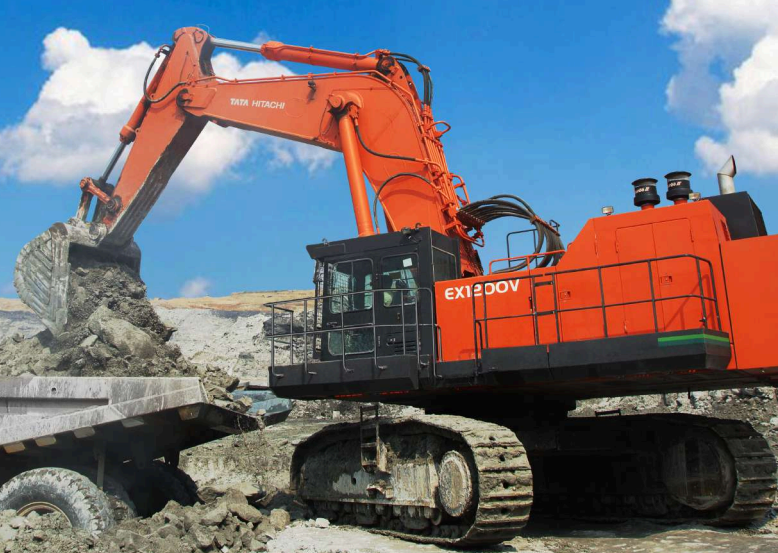

Tata Hitachi EX 1200V Mining Excavator is engineered for high-performance tasks in the most demanding mining environments. This powerful machine excels in heavy-duty tasks, including coal overburden removal and limestone extraction, ensuring efficiency and reliability. With advanced features designed for safety and performance, the Tata Hitachi EX 1200V stands out as a vital asset for maximizing productivity and minimizing operational costs in the mining sector. Tata Hitachi EX 1200V is engineered for high-performance tasks in demanding mining environments. With a powerful engine gross power of 760 HP, this excavator efficiently handles substantial workloads. Its operating weight of 109,000 KG ensures stability for heavy-duty applications. Featuring a bucket capacity of 4.0 to 6.5 m³ and a bucket digging force of 46,600 to 56,100 kgf, Tata Hitachi EX 1200V excels at tackling tough materials. Additionally, its maximum digging depth of 7,940 to 9,340 mm allows for precise deep excavation. Choose the EX 1200V Miniing Excavator to enhance productivity in the mining industry. Tata Hitachi EX 1200V Mining Excavator features an innovative Auto Idle and Quick Idle system that significantly reduces fuel consumption and emissions, making it an eco-friendly choice for mining operations. This advanced system automatically adjusts idle speed, minimizing heat generation to enhance the durability of hydraulic components and extend the overall lifespan of the excavator. Safety is prioritized with an Automatic Fire Detection & Suppression System, ensuring early detection of potential fire hazards and swift risk mitigation. Additionally, the Automatic Centralized Lubrication System simplifies maintenance by providing efficient lubrication to key components, reducing downtime and maximizing productivity. Trust the Tata Hitachi EX 1200V for reliable, safe, and efficient performance in heavy-duty mining tasks.
Engine | |||
---|---|---|---|
Model | Cummins QSK23-C | Type | Water-cooled; 4 cycle, 6 cylinder; in line, turbo-charged, direct injection, chamber-type diesel engine. |
Engine Gross Power | 760 HP @ 1650 rpm | Max. Torque | 3580 Nm @ 1350 rpm |
|
Undercarriage | |||
---|---|---|---|
No. of Shoes | 52 | No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 | Track Shoes Width | 710/900 mm |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 5.8 rpm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 3.6 km/h | Gradeability | 35°(70%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 3 variable displacement, swash plate type axial piston pumps | Main Pump max. Oil Flow | 3x495 lpm |
Swing Circuit | 300 kgf/cm² | Travel Circuit | 320 kgf/cm² |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 1400 L | Engine Oil and Filter | 70 L |
Hydraulic System | 1350 L | Hydraulic Tank Capacity | 610 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 108000-111000 kg | Ground Pressure | 1.11-1.40 kgf/cm² |
Dimensions | |||
---|---|---|---|
Overall Length | 16170 mm | Overall Height | 5410 mm |
Bucket Capacity | 5.0-6.5 m³ | Track Gauge | 3900 mm |
|
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 8020-8920 mm | Max. Digging Depth | 7940-9340 mm |
Max. Vertical Wall Digging Depth | 5080-7620 mm | Max. Digging Reach | 13760-15340 mm |
|
Working Ranges13760- | |||
---|---|---|---|
Max. Digging Reach at Ground Level | 13380-15000 mm |
Engine | |
---|---|
Model | Cummins QSK23-C |
Type | Water-cooled; 4 cycle, 6 cylinder; in line, turbo-charged, direct injection, chamber-type diesel engine. |
Engine Gross Power | 760 HP @ 1650 rpm |
Max. Torque | 3580 Nm @ 1350 rpm |
Displacement | 23.15 L |
|
Undercarriage | |
---|---|
No. of Shoes | 52 |
No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 |
Track Shoes Width | 710/900 mm |
Swing System | |
---|---|
Max. Swing Speed | 5.8 rpm |
Drive and Brake | |
---|---|
Max. Travel Speed | 3.6 km/h |
Gradeability | 35°(70%) |
Hydraulic System | |
---|---|
Main Pump Type | 3 variable displacement, swash plate type axial piston pumps |
Main Pump max. Oil Flow | 3x495 lpm |
Swing Circuit | 300 kgf/cm² |
Travel Circuit | 320 kgf/cm² |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 1400 L |
Engine Oil and Filter | 70 L |
Hydraulic System | 1350 L |
Hydraulic Tank Capacity | 610 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 108000-111000 kg |
Ground Pressure | 1.11-1.40 kgf/cm² |
Dimensions | |
---|---|
Overall Length | 16170 mm |
Overall Height | 5410 mm |
Bucket Capacity | 5.0-6.5 m³ |
Track Gauge | 3900 mm |
Ground Clearance | 990 mm |
|
Working Ranges | |
---|---|
Max. Dumping Height | 8020-8920 mm |
Max. Digging Depth | 7940-9340 mm |
Max. Vertical Wall Digging Depth | 5080-7620 mm |
Max. Digging Reach | 13760-15340 mm |
Boom Length | 7.55-9.1 m |
Arm Length | 3.4 m |
Bucket Digging Force | 46600-56100 kgf |
Arm Crowding Force | 41900-42000 kgf |
|
Working Ranges13760- | |
---|---|
Max. Digging Reach at Ground Level | 13380-15000 mm |
