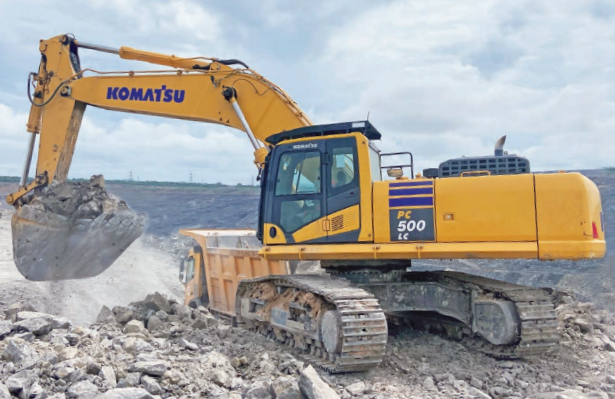

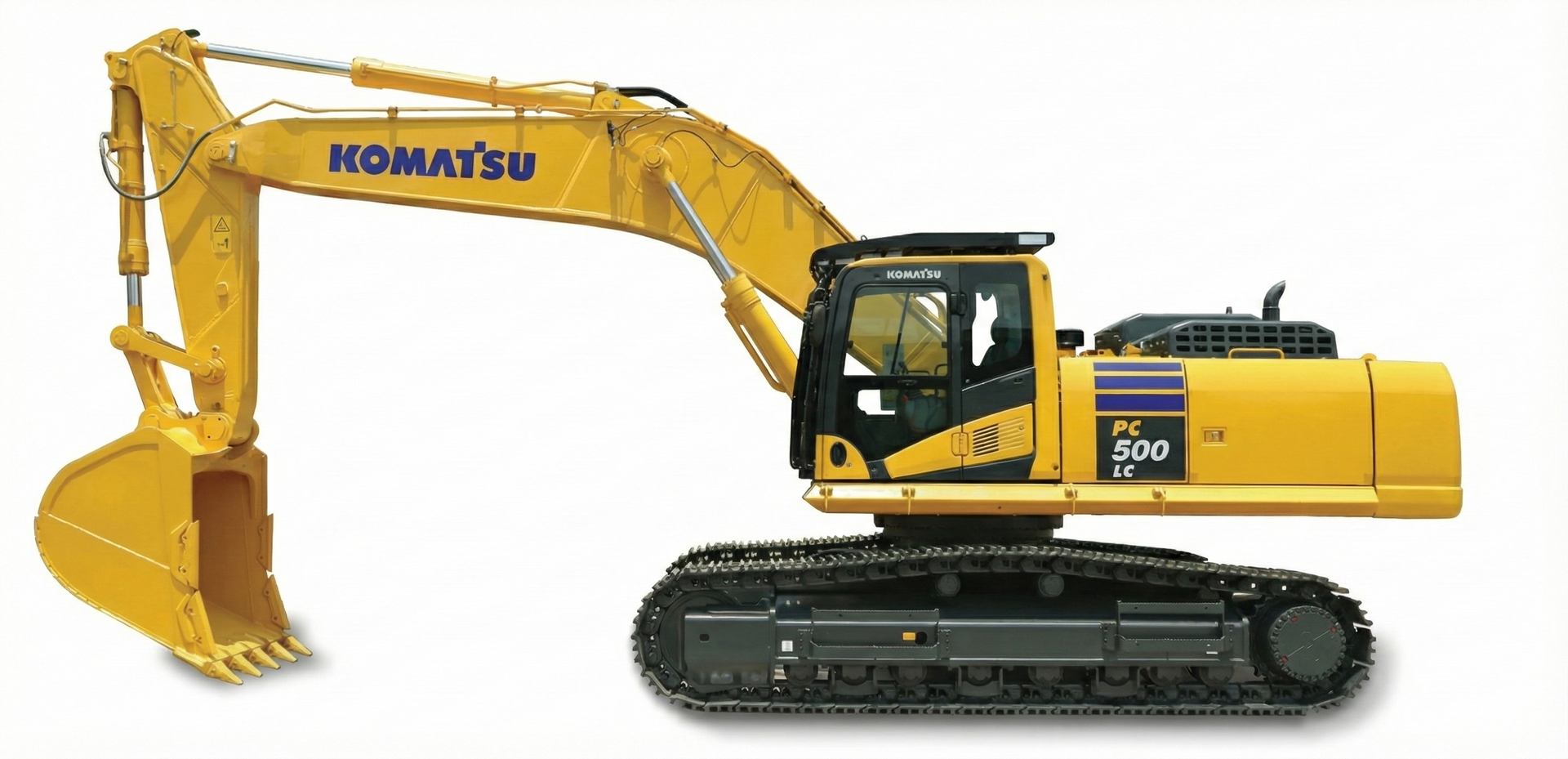

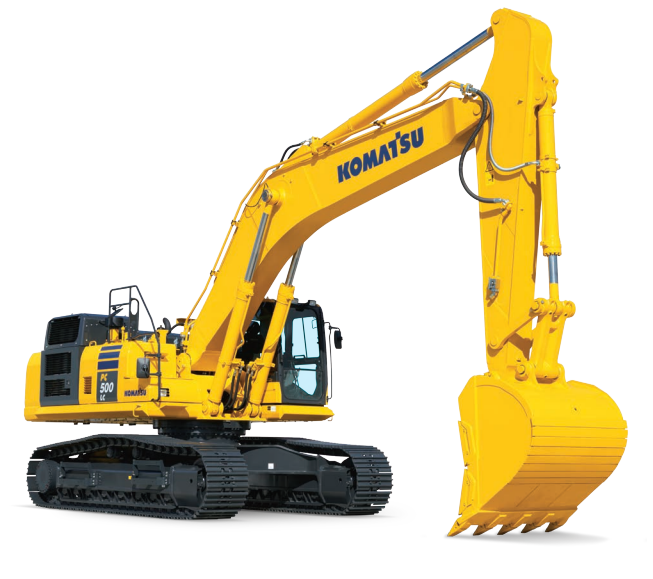

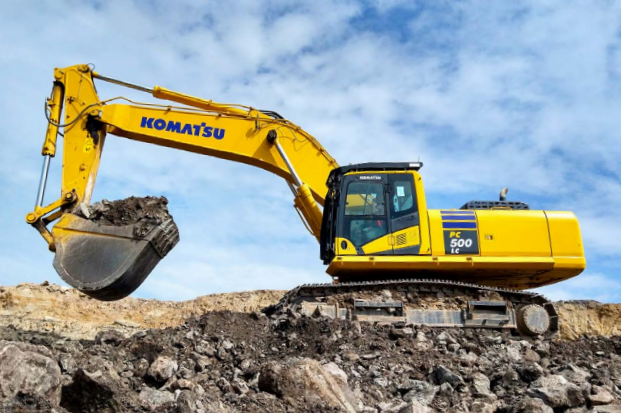

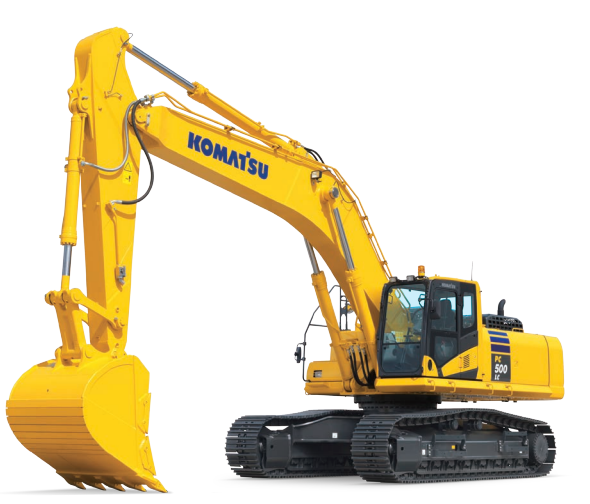

Komatsu PC500LC-10R Excavator

The Komatsu PC500LC-10R excavator is designed for a wide range of applications such as utility installation, quarrying, mining, road construction, and forestry. Additionally, it handles various tasks like material handling, lifting heavy loads, snow removal, building foundations, and dumping materials.

The Komatsu PC500LC-10R, combined with a Komatsu SAA6D125E-5 diesel engine, provides high performance and fuel efficiency. Its superior hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 362 HP at 1900 rpm and 11.04 L piston displacement, delivering lower fuel consumption and enhanced productivity.

*Ex-Showroom Price

Coming Soon

Komatsu PC500LC-10R Key Specifications

Komatsu PC500LC-10R Features

Engine

Model Komatsu SAA6D125E-5

Type Water-cooled, 4-cycle, direct injection, Turbocharged, aftercooled

Engine Gross Power 362 hp(270 kw) @ 1900 rpm

Displacement 11.04 L

Undercarriage

No. of Shoe 49

No. of Upper Rollers 2

No. of Bottom Rollers 8

Track Shoe Width 600 mm

Swing System

Max. Swing Speed 9.1 rpm

Min. Swing Radius 4685-4720 mm

Drive and Brake

Max. Travel Speed 5.5 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type Variable displacement piston type

Main Pump max. Oil Flow 690 lpm

Swing Circuit 27.9 MPa

Travel Circuit 37.3 MPa

Refill Capacity

Fuel Tank Capacity 640 L

Engine Oil and Filter 37 L

Hydraulic Tank Capacity 279 L

Weight and Ground Pressure

Operating Weight 50060 kg

Ground Pressure 87.3 kPa

Dimensions

Overall Length 11855-11945 mm

Overall Height 3980-4220 mm

Bucket Capacity 3.5-3.7 m³

Track Gauge 2740 mm

Ground Clearance 570 mm

Working Ranges

Max. Dumping Height 6675-6750 mm

Max. Digging Depth 6640-7150 mm

Max. Vertical Wall Digging Depth 2495-2725 mm

Max. Digging Reach 10945-11350 mm

Max. Digging Reach at Ground 10720-11135 mm

Boom Length 6670 mm

Arm Length 2400-2900 mm

Bucket Digging Force 304-339 kN

Arm Crowding Force 244-273 kN

Top Applications of Komatsu PC500LC-10R

1. Infrastructure Development

The Komatsu PC500LC-10R excavator's bucket capacity improves digging efficiency on large-scale infrastructure projects.

2. Waste Management

The Komatsu PC500LC-10R excavator's maximum swing speed reduces work cycle time and provides faster work without compromising performance in waste management.

3. Demolition

The Komatsu PC500LC-10R's large fuel tank capacity saves time and allows extending the working hours in demolition projects.

4. Construction

The Komatsu PC500LC-10R excavator's operating weight capacity offers better machine stability while digging and lifting on construction sites.

5. Mining Sites

Its long arm and maximum digging depth capacity reduce machine repositioning during the mining operations and improve work efficiency and productivity.
