Manitou MBL 745 HT+
Specification
Features
Manitou MBL 745 HT+
Manitou MBL 745 HT+

Manitou MBL 745 HT+

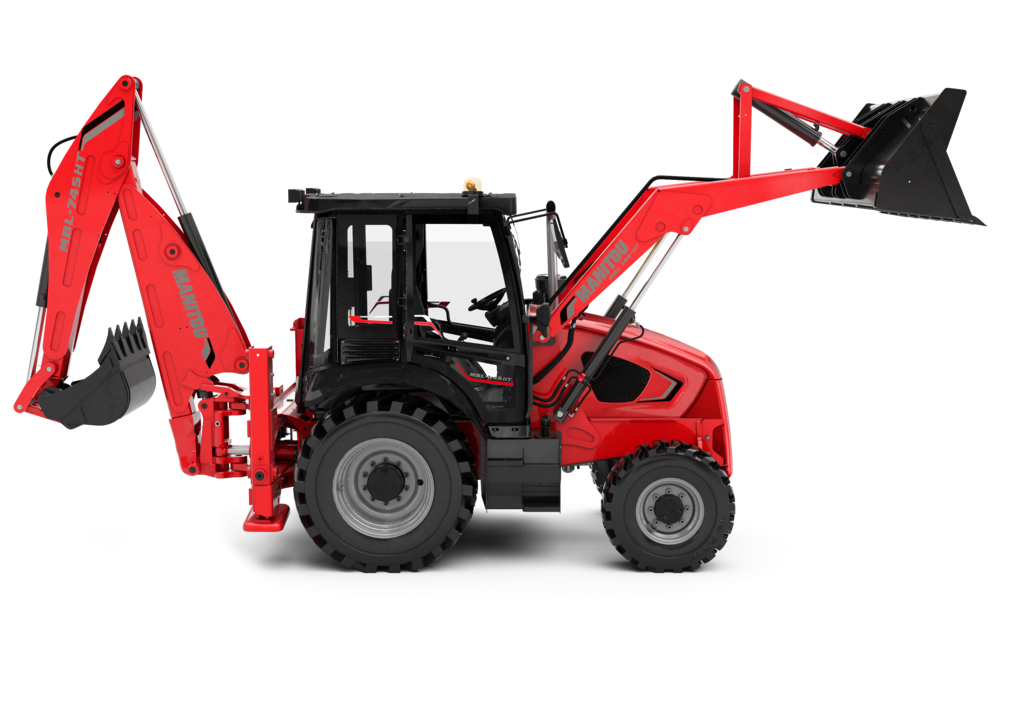

Manitou MBL 745 HT+ backhoe loaders work in many industries and can perform multiple tasks without extra machinery. The MBL 745 HT+ is built to handle demanding tasks with power and stability.


MBL 745 HT+ delivers the latest technology, including Koel manufactured BS IV engine, an axial type hydraulic piston pump, a spacious cabin, and much more. It can easily handle any task with its latest features.


The Manitou MBL 745 HT+ is powered by a 400 Nm high-torque engine paired with a Carraro transmission. It reaches a maximum speed of 40 km/h for faster work efficiency and supports material handling with its 7515 kg operating weight capacity.

Manitou MBL 745 HT+ Key Specifications

Manitou MBL 745 HT+ Features

Engine

Make Koel
Model 4R1190TA-H.T Turbo Charged Water Cooled BS IV CEV
Engine Gross Power 54.80 kw @ 2200 rpm
Max. Torque 400 Nm

Electrical System

Battery 12 V / 142 Ah

Transmission

Max. Forward Speed 40 km/h

Steering System

Steering Type Power Steering

Drive and Brake

Service Brake Wet disc brakes

Hydraulic System

Main Pump Flow 143 lpm
Hydraulic System Relief Pressure 225 bar

Refill Capacity

Fuel Tank Capacity 120 L
Engine Oil Capacity 11 L
Transmission Oil Capacity 17.50 L
Rear Axle Oil Capacity 17.10 L

Dimensions

Dump Height 2780 mm
Loadover Height 3310 mm
Max. Reach at Full Height 1153 mm
Arm Loader Breakout Force 4691 kgf
Loader Bucket Capacity 1.00 m³
Max. Digging Depth 4741 mm
Below Ground Level Dig Depth 156 mm
Rollback at Ground 45°
Bucket Loader Breakout Force 5229 kgf
Max. Working Height 5626 mm
Max. Loadover Height 3871 mm
Bucket Rotation Power 194°
Dipper Tearout Force (Arm Crowding Force) 3942 kgf
