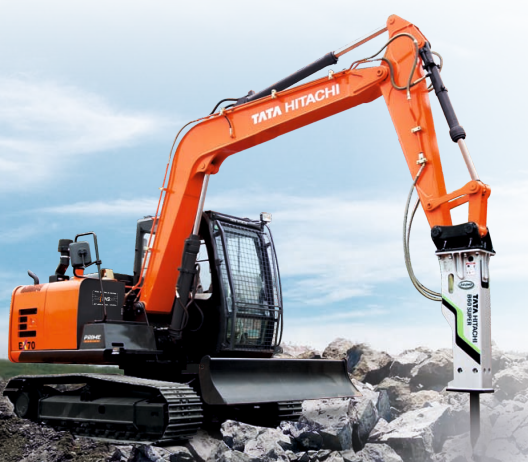

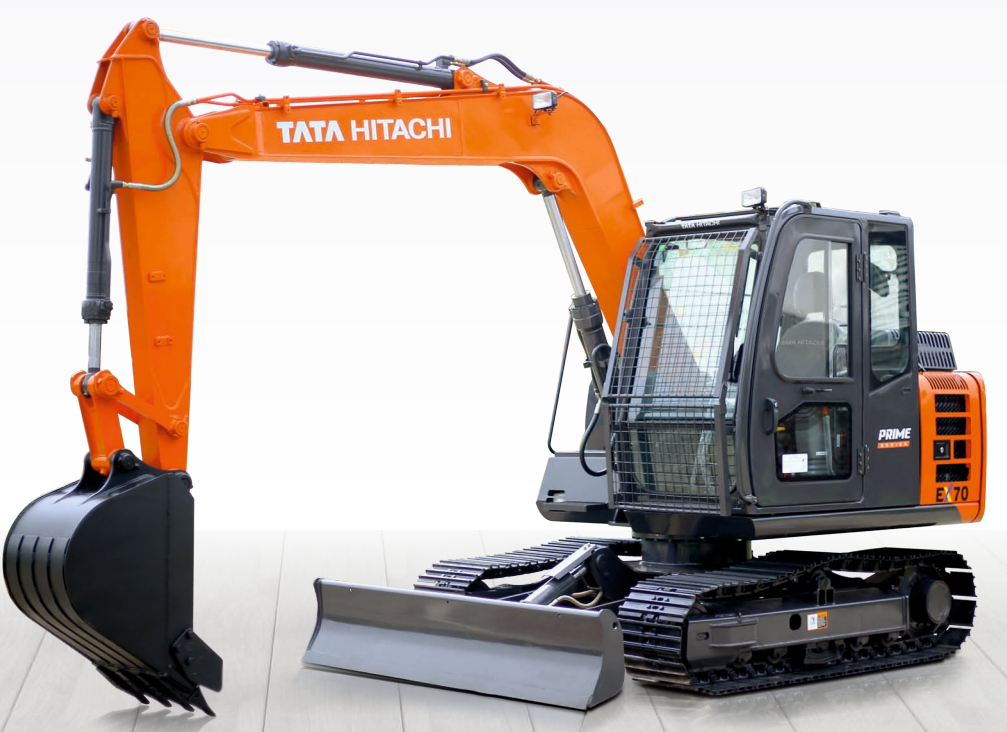

Tata Hitachi EX 70 PRIME

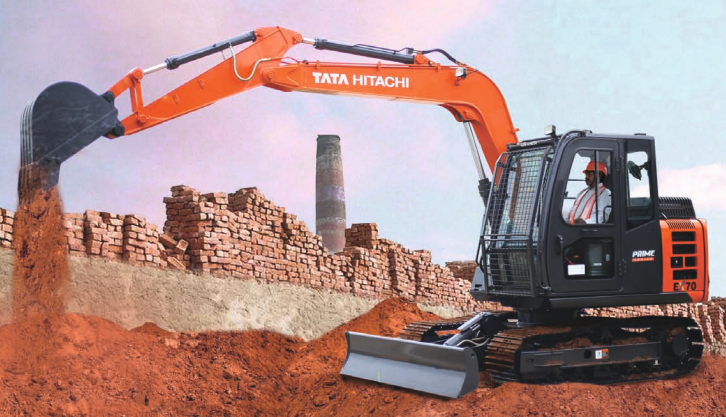

Tata Hitachi Ex 70 Prime Mini Excavator stands out as a powerful, reliable, and efficient solution for various demanding applications, including salt pan operations, pipe laying, brick kiln work, irrigation, and desilting. Designed to deliver exceptional performance, the Ex 70 Prime Mini Excavator combines advanced technology with outstanding capabilities, ensuring user comfort and effectiveness on the job. This mini excavator is the ideal choice for professionals seeking a versatile and high-performing machine for their projects. Tata Hitachi Ex 70 Prime delivers a powerful engine gross power of 48.31 HP and an operating weight of 7200 kg, ideal for heavy-duty tasks. With a versatile bucket capacity of 0.13 to 0.68 m³ and a bucket digging force of 4800 kgf, it effectively handles tough materials for extensive excavation and construction projects. Its maximum digging depth of 4150 mm to 4660 mm allows operators to reach significant depths with ease, enhancing efficiency across various applications. Tata Hitachi Ex 70 Prime Mini Excavator features the Intelligent Optimum Hydraulic System (IOHS), enhancing hydraulic performance and efficiency. Coupled with the hydraulic regeneration system, this technology optimizes power usage for smooth and responsive operations. The innovative fuel-saving pump system reduces fuel consumption without compromising performance, contributing to cost-effectiveness. Additionally, Tata Hitachi Ex 70 Prime includes a sunroof for better ventilation, ensuring a pleasant working environment, especially in warmer conditions.

Tata Hitachi EX 70 PRIME Features

Engine
Model	TATA 497 DI 38 BSIII	Type	Water cooled, 4 cylinder in-line diesel engine
Engine Gross Power	48.33 HP @ 2000 rpm	Max. Torque	222 Nm @ 1400 rpm

Undercarriage
No. of Shoes	37x2	No. of Upper Rollers	2x1
No. of Bottom Rollers	5x2	Track Shoe Width	450 mm

Swing System
Max. Swing Speed	12.8 rpm	Min. Swing Radius	1700-2060 mm

Drive and Brake
Max. Travel Speed	5.0 km/h

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps	Main Pump max. Oil Flow	18.2 lpm
Swing Circuit	235 kgf/cm²	Travel Circuit	280 kgf/cm²

Refill Capacity
Fuel Tank Capacity	135 L	Engine Oil and Filter	9 L
Hydraulic System	92 L	Hydraulic Tank Capacity	42 L

Weight and Ground Pressure
Operating Weight	6700-7200 kg	Ground Pressure	0.32-0.34 kgf/cm²

Dimensions
Overall Length	6080 mm	Overall Height	2690 mm
Bucket Capacity	0.13-0.68 m³	Track Gauge	2150 mm
Ground Clearance	360 mm

Working Ranges
Max. Dumping Height	5070-5470 mm	Max. Digging Depth	4150-4660 mm
Max. vertical Wall Digging Depth	3500-4060 mm	Max. Digging Reach	6310-6800 mm
Max. Digging Reach at Ground Level	6160-6660 mm	Boom Length	3720 mm
Arm Length	1620-2120 mm	Bucket Digging Force	4800 kgf
Arm Crowding Force	3700 kgf

Engine
Model	TATA 497 DI 38 BSIII
Type	Water cooled, 4 cylinder in-line diesel engine
Engine Gross Power	48.33 HP @ 2000 rpm
Max. Torque	222 Nm @ 1400 rpm

Undercarriage
No. of Shoes	37x2
No. of Upper Rollers	2x1
No. of Bottom Rollers	5x2
Track Shoe Width	450 mm

Swing System
Max. Swing Speed	12.8 rpm
Min. Swing Radius	1700-2060 mm

Drive and Brake
Max. Travel Speed	5.0 km/h

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps
Main Pump max. Oil Flow	18.2 lpm
Swing Circuit	235 kgf/cm²
Travel Circuit	280 kgf/cm²

Refill Capacity
Fuel Tank Capacity	135 L
Engine Oil and Filter	9 L
Hydraulic System	92 L
Hydraulic Tank Capacity	42 L

Weight and Ground Pressure
Operating Weight	6700-7200 kg
Ground Pressure	0.32-0.34 kgf/cm²

Dimensions
Overall Length	6080 mm
Overall Height	2690 mm
Bucket Capacity	0.13-0.68 m³
Track Gauge	2150 mm
Ground Clearance	360 mm

Working Ranges
Max. Dumping Height	5070-5470 mm
Max. Digging Depth	4150-4660 mm
Max. vertical Wall Digging Depth	3500-4060 mm
Max. Digging Reach	6310-6800 mm
Max. Digging Reach at Ground Level	6160-6660 mm
Boom Length	3720 mm
Arm Length	1620-2120 mm
Bucket Digging Force	4800 kgf
Arm Crowding Force	3700 kgf
