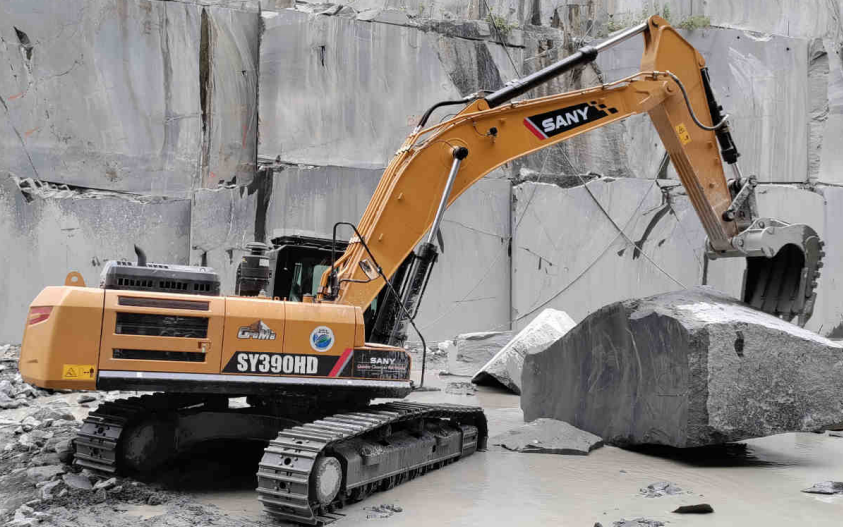

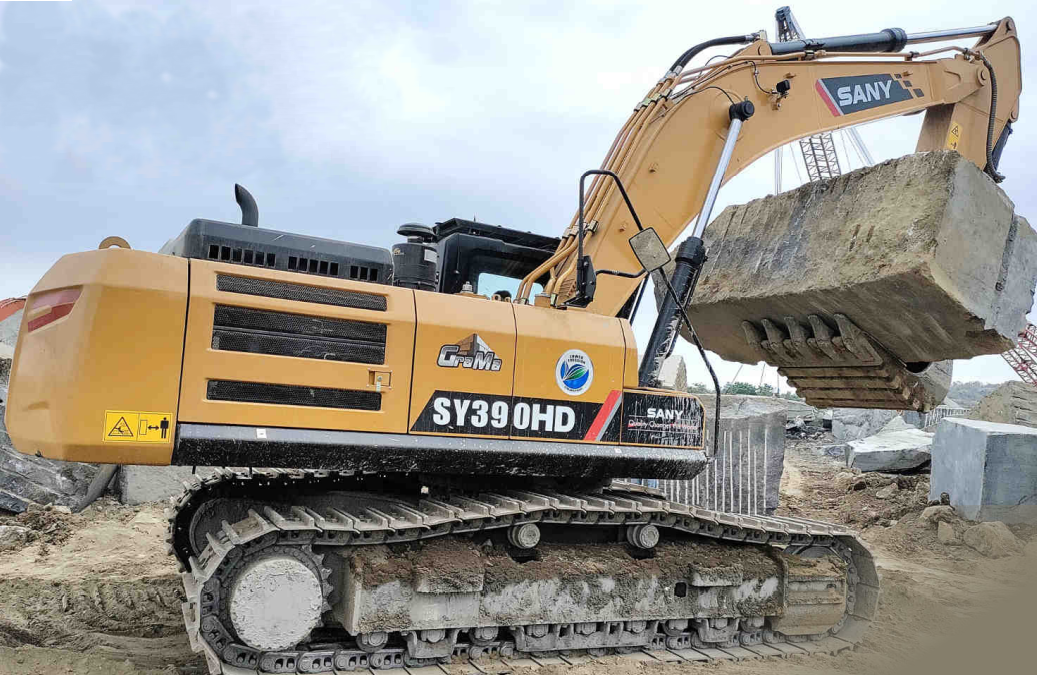

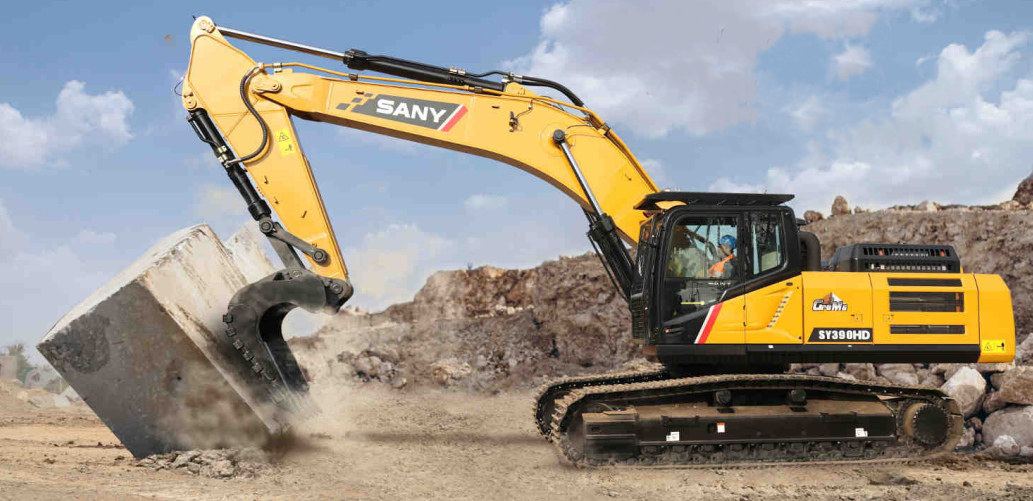

Sany SY390C-10HD GraMa Excavator

The Sany SY390C-10HD GraMa excavator is designed for a wide range of applications such as utility installation, quarrying, mining, road construction, and forestry. Additionally, it handles various tasks like material handling, lifting heavy loads, snow removal, building foundations, and dumping materials.

The Sany SY500C-10HD, combined with a Isuzu 6HK1 diesel engine, provides high performance and fuel efficiency. Its unique three-pump hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 284 HP at 2000 rpm and 7.79 L piston displacement, delivering lower fuel consumption and enhanced productivity.

*Ex-Showroom Price

₹ 1.2 - 1.23 Crore

Sany SY390C-10HD GraMa Key Specifications

Sany SY390C-10HD GraMa Features

Engine

Model Isuzu 6HK1

Type 6 Cylinder, electronic injection, CRDI

Engine Gross Power 284 HP (212 kw) @ 2000 rpm

Max. Torque 1080 Nm @ 1500 rpm

Displacement 7.79 L

Undercarriage

No. of Shoes 49

No. of Upper Rollers 2

No. of Bottom Rollers 9

Track Shoe Width 600 mm1

Swing System

Max. Swing Speed 8.8 rpm

Drive and Brake

Max. Travel Speed 5.5 km/h

Gradeability 35%(70°)

Hydraulic System

Main Pump Type 2 Variable displacement axial piston pumps

Main Pump max. Oil Flow 2 x 320 lpm

Swing Circuit 30 MPa

Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 690 L

Engine Oil and Filter 36 L

Hydraulic Tank Capacity 380 L

Weight and Ground Pressure

Operating Weight 37500 kg

Ground Pressure 68.8 kPa

Dimensions

Overall Length 11425 mm

Overall Height 3825 mm

Bucket Capacity 1.4-1.9 m³

Track Gauge 2590 mm

Ground Clearance 550 mm

Working Ranges

Max. Dumping Height 7010 mm

Max. Digging Depth 7155 mm

Max. Vertical Wall Digging Depth 5125 mm

Max. Digging Reach 10750 mm

Boom Length 6500 mm

Arm Length 2800 mm

Bucket Digging Force 235 kN

Arm Crowding Force 210 kN

Top Applications of Sany SY390C-10HD GraMa

1. Forest Work

The Sany SY390C-10HD GraMa excavator's powerful engine efficiently handles heavy-duty operations and increased productivity in forest activities.

2. Infrastructure Development

The Sany SY390C-10HD GraMa's swing speed helps in enhancing productivity and reducing breakdowns in infrastructure development.

3. Quarrying Operations

Its fuel tank capacity saves time and provides faster work by reducing fuel management effort during the operations.

3. Agriculture

The Sany SY390C-10HD GraMa excavator has a 1.9 m³ bucket capacity that can save time and quickly load materials like sand and agricultural feed into trucks.

5. Utility Installations

Its long arm and digging depth capabilities are ideal for foundation digging. Smoothly installs pipelines and cables in utilities and provides higher productivity.
