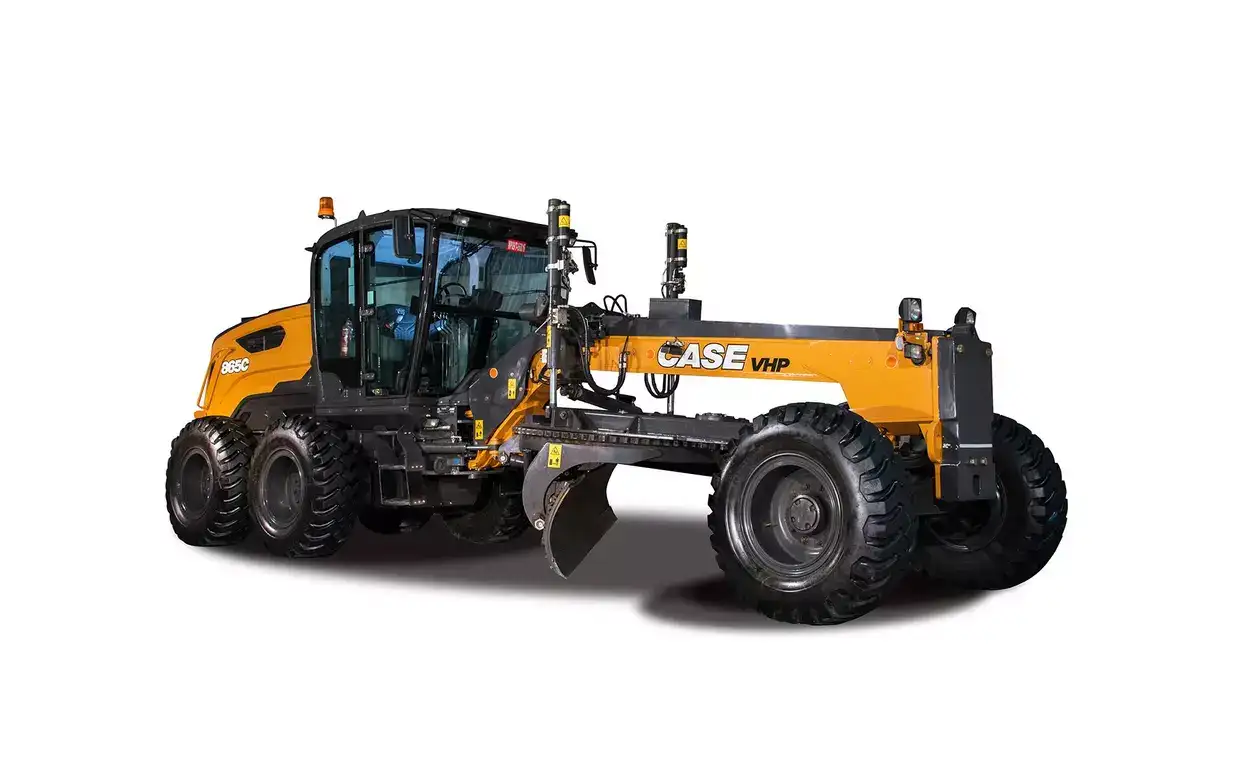

CASE 865C Motor Grader is highly versatile, offering a range of applications. It excels in Ditching and Drainage, effectively creating and maintaining drainage systems for optimal water management in both construction and agricultural projects. In Mining and Quarry Operations, its robust design handles rugged terrains, making 865C Motor Grader ideal for shaping and maintaining access roads. For Road Construction and Maintenance, the wide 3962 mm blade ensures efficient grading, resurfacing, and road maintenance, providing exceptional results. Additionally, its precision and power make CASE 865C perfect for Earthmoving, preparing job sites, and leveling large volumes of terrain. CASE 865C is designed for heavy-duty applications with an impressive Engine Gross Power of 164 kW, ensuring it can handle demanding grading tasks efficiently. It boasts a large Fuel Tank Capacity of 380 liters, enabling extended operation without the need for frequent refueling, and a wide Blade Width of 3962 mm, making it ideal for large-scale grading and earthmoving projects. With an Operating Weight of 15,481 kg, the 865C Motor Grader offers exceptional stability and durability, making CASE 865C Motor Grader is a reliable choice for tough job sites. CASE 865C Motor Grader offers several Unique Selling Points that enhance its performance and operator experience. The Pedal Accelerator and Manual Accelerator System allows flexible control, enabling smooth transitions between pedal and manual acceleration for precise operation. Its Diagnostics Center with 8 Quick Couplers simplifies maintenance and troubleshooting, maximizing uptime and efficiency. The Hydraulic System with Load Sensor, Closed Center provides precise hydraulic control by adjusting flow based on load, improving fuel efficiency during grading tasks. Additionally, the Adjustable Operator Console System offers customizable controls for enhanced comfort and productivity, allowing operators to tailor the machine to their needs.
Engine | |||
---|---|---|---|
Model | FPT F4HE613B*W002 | Engine Gross Power | 193-223 HP(144-164 KW) @ 2200 rpm |
Max. Torque | 743-930 Nm @ 1500 rpm | No. of Cylinders | 6 |
|
Electrical System | |||
---|---|---|---|
Battery | 2 Batteries, 24 V(100 Ah) |
Transmission | |||
---|---|---|---|
Max. Forward Speed | 44.1 km/h | Max. Reverse Speed | 30.3 km/h |
Steering System | |||
---|---|---|---|
Steering Type | Hydrostatic Power Steering | Articulation Angle | 25° Left & Right |
Min. Turning Radius | 7250 mm |
Hydraulic System | |||
---|---|---|---|
Main Pump | Piston Pump, Variable Displacement |
Axles | |||
---|---|---|---|
Front Axle Type | CNH LA | Oscillation Angle | 15° |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 380 L | Engine Oil Capacity | 16 L |
Transmission Oil Capacity | 31 L | Hydraulic Oil Capacity | 90 L |
Blade Range | |||
---|---|---|---|
Max. Lift above Ground | 444.5 mm |
Operating Specifications | |||
---|---|---|---|
Operating Weight | 15481 kg | Weight on Front Axle | 4316 kg |
Weight on Rear Axle | 11165 kg |
Dimensions | |||
---|---|---|---|
Overall Length | 8957 mm | Overall Height | 3400 mm |
Ground Clearance | 580 mm | Wheelbase | 6219 mm |
Engine | |
---|---|
Model | FPT F4HE613B*W002 |
Engine Gross Power | 193-223 HP(144-164 KW) @ 2200 rpm |
Max. Torque | 743-930 Nm @ 1500 rpm |
No. of Cylinders | 6 |
Bore | 104 mm |
Stroke | 132 mm |
Displacement | 6.7 L |
|
Electrical System | |
---|---|
Battery | 2 Batteries, 24 V(100 Ah) |
Transmission | |
---|---|
Max. Forward Speed | 44.1 km/h |
Max. Reverse Speed | 30.3 km/h |
Steering System | |
---|---|
Steering Type | Hydrostatic Power Steering |
Articulation Angle | 25° Left & Right |
Min. Turning Radius | 7250 mm |
Hydraulic System | |
---|---|
Main Pump | Piston Pump, Variable Displacement |
Axles | |
---|---|
Front Axle Type | CNH LA |
Oscillation Angle | 15° |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 380 L |
Engine Oil Capacity | 16 L |
Transmission Oil Capacity | 31 L |
Hydraulic Oil Capacity | 90 L |
Blade Range | |
---|---|
Max. Lift above Ground | 444.5 mm |
Operating Specifications | |
---|---|
Operating Weight | 15481 kg |
Weight on Front Axle | 4316 kg |
Weight on Rear Axle | 11165 kg |
Dimensions | |
---|---|
Overall Length | 8957 mm |
Overall Height | 3400 mm |
Ground Clearance | 580 mm |
Wheelbase | 6219 mm |
