Tata Hitachi Zaxis 38U

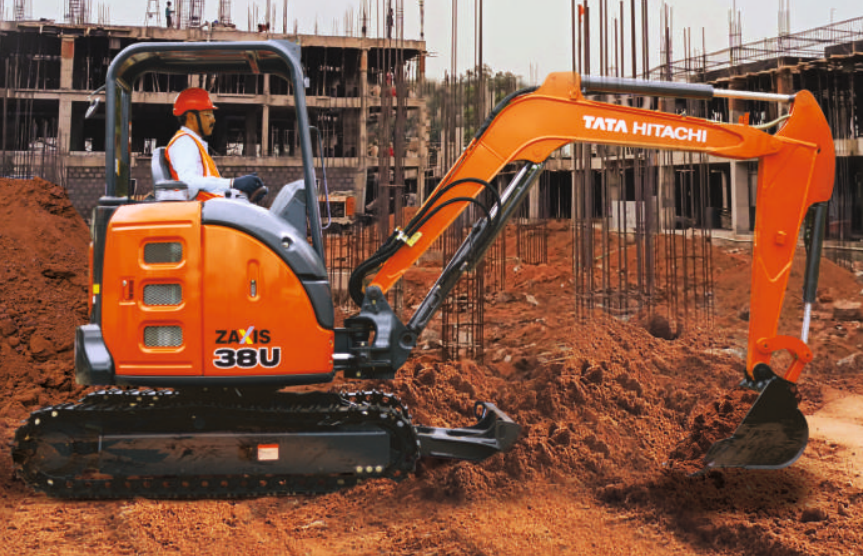

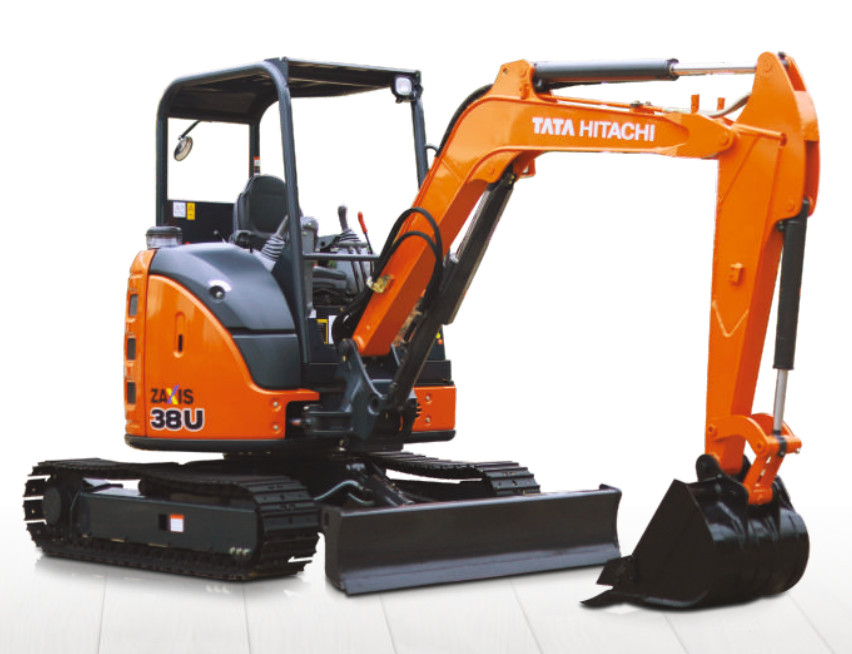

Tata Hitachi Zaxis 38U Mini Excavator is a reliable and powerful machine designed to meet the demands of your projects with confidence. Experience the power, precision, and efficiency that define this remarkable excavator, ensuring you can complete your tasks effectively and on time. Zaxis 38U Mini Excavator excels in tackling a wide range of applications, including construction, demolition, utility work, and forestry, making it an exceptional choice for various industries. Tata Hitachi Zaxis 38U offers a robust engine gross power of 29.48 HP and an operating weight of 3620 kg, ensuring exceptional performance in challenging environments. With a bucket capacity of 0.04 m³ to 0.11 m³ and a bucket digging force of 2770 kgf, it effectively handles tasks from light landscaping to heavy excavation. The maximum digging depth of 3060 mm enhances its usability for deep excavation in various applications. Tata Hitachi Zaxis 38U Mini Excavator features dual travel speed modes, providing flexibility in operation. Its multi-functional monitor system offers operators real-time information on machine performance and diagnostics, ensuring optimal operation and effective maintenance planning. Additionally, Tata Hitachi Zaxis 38U boasts high fuel efficiency and low operating costs, making it a cost-effective choice for contractors looking to maximize their return on investment.

Tata Hitachi Zaxis 38U Features

Engine
Model	Yanmar - 3TNV88	Type	4 Cycle water cooled, direct injection
Engine Gross Power	29.49 HP @ 2400 rpm	Max. Torque	105.5 Nm @ 1000 rpm
Displacement	1.642 L

Undercarriage
No. of Shoes	44x2	No. of Upper Rollers	1x2
No. of Bottom Rollers	4x2	Track Shoe Width	300 mm

Swing System
Max. Swing Speed	9.1 rpm	Min. Swing Radius	2070 mm

Drive and Brake
Max. Travel Speed	4.3 km/h	Gradeability	30°(58%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps	Main Pump max. Oil Flow	10.8 lpm
Swing Circuit	190 kgf/cm²	Travel Circuit	250 kgd/cm²

Refill Capacity
Fuel Tank Capacity	42 L	Engine Oil and Filter	7.2 L
Hydraulic System	56 L	Hydraulic Tank Capacity	32 L

Weight and Ground Pressure
Operating Weight	3620 kg

Dimensions
Overall Length	4640 mm	Overall Height	2470 mm
Bucket Capacity	0.04-0.11 m³	Track Gauge	1440 mm
Ground Clearance	270 mm

Working Ranges
Max. Dumping Height	3460 mm	Max. Digging Depth	3060 mm
Max. Vertical Wall Digging Depth	2580 mm	Max. Digging Reach	5210 mm
Max. Digging Reach at Ground Level	5080 mm	Boom Length	2.47 m
Arm Length	1.32 m	Bucket Digging Force	2770 kgf
Arm Crowding Force	1937 kgf

Engine
Model	Yanmar - 3TNV88
Type	4 Cycle water cooled, direct injection
Engine Gross Power	29.49 HP @ 2400 rpm
Max. Torque	105.5 Nm @ 1000 rpm
Displacement	1.642 L

Undercarriage
No. of Shoes	44x2
No. of Upper Rollers	1x2
No. of Bottom Rollers	4x2
Track Shoe Width	300 mm

Swing System
Max. Swing Speed	9.1 rpm
Min. Swing Radius	2070 mm

Drive and Brake
Max. Travel Speed	4.3 km/h
Gradeability	30°(58%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps
Main Pump max. Oil Flow	10.8 lpm
Swing Circuit	190 kgf/cm²
Travel Circuit	250 kgd/cm²

Refill Capacity
Fuel Tank Capacity	42 L
Engine Oil and Filter	7.2 L
Hydraulic System	56 L
Hydraulic Tank Capacity	32 L

Weight and Ground Pressure
Operating Weight	3620 kg

Dimensions
Overall Length	4640 mm
Overall Height	2470 mm
Bucket Capacity	0.04-0.11 m³
Track Gauge	1440 mm
Ground Clearance	270 mm

Working Ranges
Max. Dumping Height	3460 mm
Max. Digging Depth	3060 mm
Max. Vertical Wall Digging Depth	2580 mm
Max. Digging Reach	5210 mm
Max. Digging Reach at Ground Level	5080 mm
Boom Length	2.47 m
Arm Length	1.32 m
Bucket Digging Force	2770 kgf
Arm Crowding Force	1937 kgf
