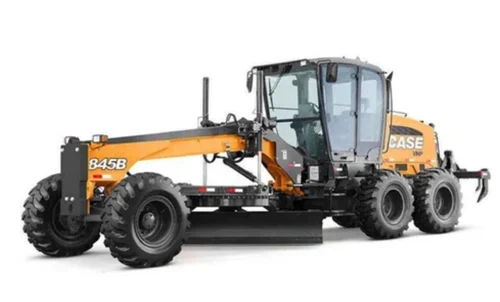

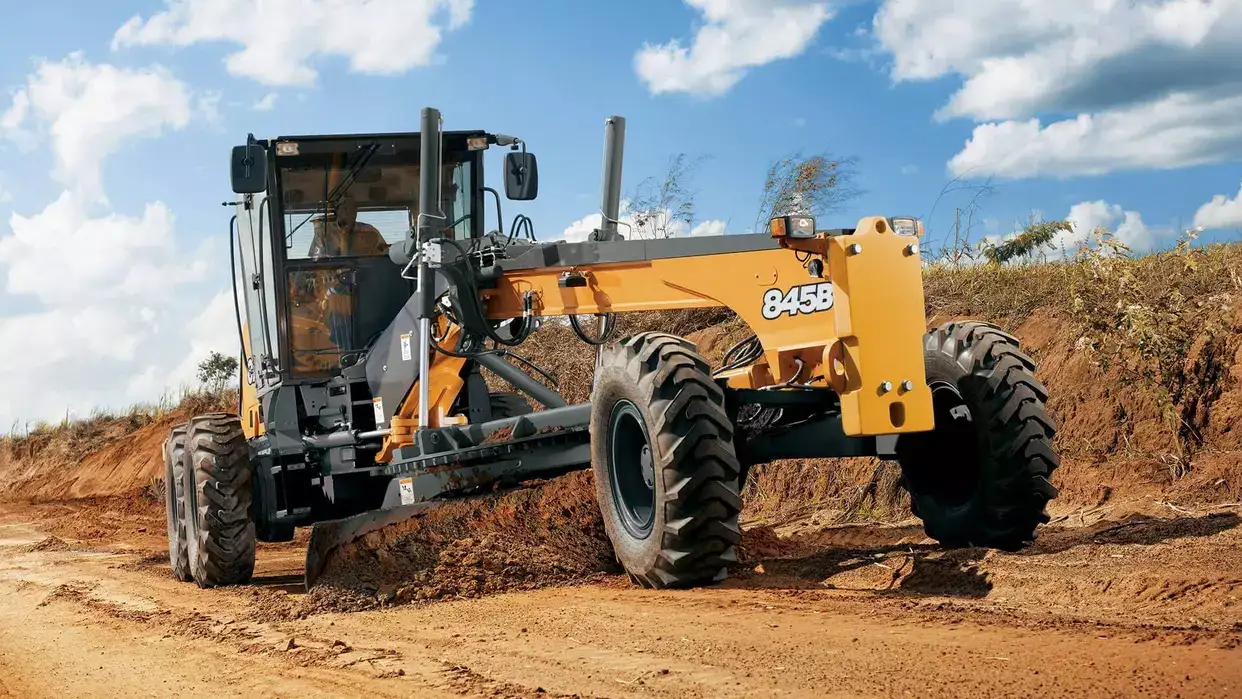

CASE 845B Motor Grader

The Case 845B motor grader is used in many sectors, like road construction and maintenance, earthmoving operations, landscaping, snow removal, mining, quarrying, and more. It allows the operator to work with many attachments, such as rippers, scarifiers, blades, snow wings, and more.

Case 845B, equipped with a powershift transmission, provides the best traction power in challenging environments. It has hydrostatic steering, which allows the operator better turning ability on rough surfaces. Furthermore, its closed center & load-sensing hydraulic system improves fuel efficiency during the operations.

Its high-performance engine generates 163 hp and 758 Nm torque, providing you maximum output. Its 14605 kg operating weight capacity provides you with good quality of work. Its 341 L fuel tank capacity allows the operator to work for long hours without refueling multitime.

*Ex-Showroom Price

₹ 1.29 - 1.31 Crore

CASE 845B Key Specifications

CASE 845B Features

Engine

Model FPT F4HE9684L

Engine Gross Power 140-163 HP(104-129 KW) @ 2200 rpm

Max. Torque 591-758 Nm @ 1500 rpm

No. of Cylinders 6

Bore 104 mm

Stroke 132 mm

Displacement 6.7 L

Electrical System

Battery 2 Batteries, 24 V(100 Ah)

Transmission

Max. Forward Speed 41.5 km/h

Max. Reverse Speed 28.6 km/h

Steering System

Steering Type Hydrostatic

Steering Angle 42°

Articulation Angle 25° Left & Right

Min. Turning Radius 7.2 m

Drive and Brake

Service Brake Multidisk Oil-bathed Service Brake

Parking Brake Disk Parking Brake integrated with Transmission

Hydraulic System

Main Pump Piston Pump, Variable Displacement

Axles

Front Axle Type High-ressistance welded steel

Oscillation Angle 20°

Refill Capacity

Fuel Tank Capacity 341 L

Engine Oil Capacity 17.5 L

Transmission Oil Capacity 25 L

Hydraulic Oil Capacity 90 L

Blade Range

Max. Lift above Ground 444.5 mm

Operating Specifications

Operating Weight 14605 kg

Weight on Front Axle 4496 kg

Weight on Rear Axle 10109 kg

Dimensions

Overall Length 8534 mm

Overall Height 3340 mm

Ground Clearance 380-580 mm

Wheelbase 6219 mm
