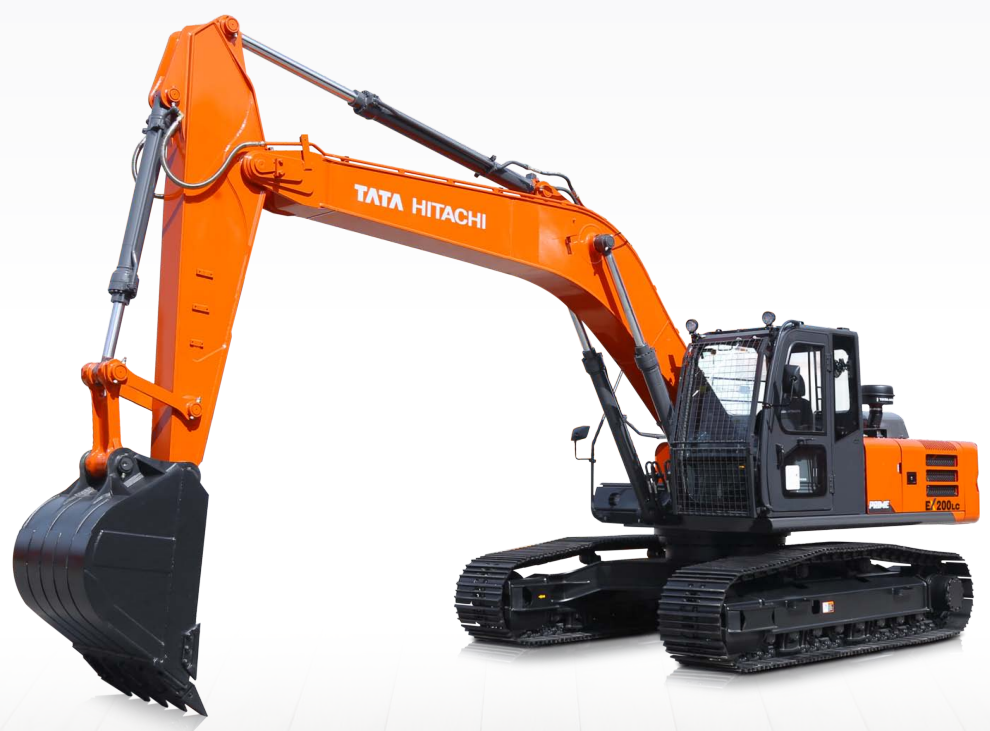

Tata Hitachi EX 200 LC PRIME

Tata Hitachi EX 200 LC Prime Hydraulic Excavator offers exceptional performance and reliability, making it the perfect choice for a variety of applications, whether you're working in a quarry, managing municipal tasks, or engaged in agricultural projects. Designed to meet the diverse needs of contractors and businesses, this hydraulic excavator combines power, efficiency, and advanced features to tackle heavy-duty tasks effectively. Experience the versatility and strength of the Tata Hitachi EX 200 LC Prime for your next project, ensuring you achieve optimal results with every operation. Tata Hitachi EX 200 LC Prime is engineered for demanding tasks, boasting an impressive engine gross power of 131 HP and an operating weight between 20,100 kg and 20,300 kg. EX 200 LC Prime Hydraulic Excavator features a versatile bucket capacity of 0.9 to 1.7 m³, enabling operators to efficiently handle various material types and excavation needs. With a formidable bucket digging force of 12,250 kgf, it excels in tough digging conditions, while its maximum digging depth of 5910 mm to 6600 mm ensures excellent reach for deep excavation projects. Experience reliability and efficiency with the Tata Hitachi EX 200 LC Prime for all your heavy-duty tasks. Tata Hitachi EX 200 LC Prime Hydraulic Excavator features an Intelligent Optimum Hydraulic System that optimizes hydraulic performance and efficiency for enhanced productivity. This advanced system, combined with a fuel-saving pump, significantly reduces operational costs while maximizing fuel efficiency without sacrificing power. The factory-fitted rock breaker piping kit simplifies the attachment of rock-breaking equipment, allowing operators to tackle challenging materials effortlessly. Additionally, the improved casted H-link enhances durability and stability, making the EX 200 LC Prime Hydraulic Excavator a reliable choice for various heavy-duty applications, including construction, quarrying, and agricultural projects.

Tata Hitachi EX 200 LC PRIME Features

Engine
Model	Cummins 6BT5.9C	Type	6 Cylinder water cooled, direct injection
Engine Gross Power	131 HP @ 2000 rpm	Max. Torque	537 Nm @ 1300 rpm

Undercarriage
No. of Shoes	52	No. of upper Rollers	2
No. of Bottom Rollers	8	Track Shoes Width	500 mm

Swing System
Max. Swing Speed	13.3 rpm	Min. Swing Radius	3720-3660 mm

Drive and Brake
Max. Travel Speed	4.2 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps	Main Pump max. Oil Flow	2x221 lpm
Swing Circuit	275 kgf/cm²	Travel Circuit	350 kgf/cm²

Refill Capacity
Fuel Tank Capacity	300 L	Engine Oil and Filter	22 L
Hydraulic System	220 L	Hydraulic Tank Capacity	129 L

Weight and Ground Pressure
Operating Weight	20100 kg	Ground Pressure	0.52 kgf/cm²

Dimensions
Overall Length	9720 mm	Overall Height	2850 mm
Bucket Capacity	0.91-1.7 m³	Track Gauge	2390 mm
Ground Clearance	435 mm

Working Ranges
Max. Dumping Height	6230-6610 mm	Max. Digging Depth	5910-6600 mm
Max. Vertical Wall Digging Depth	5050-5980 mm	Max. Digging Reach	9250-9910 mm
Max. Digging Reach at Ground Level	9060-9740 mm	Boom Length	5680 mm
Arm Length	2200-2900 mm	Bucket Digging Force	11000 kgf
Arm Crowding Force	8800-11300 kgf

Engine
Model	Cummins 6BT5.9C
Type	6 Cylinder water cooled, direct injection
Engine Gross Power	131 HP @ 2000 rpm
Max. Torque	537 Nm @ 1300 rpm

Undercarriage
No. of Shoes	52
No. of upper Rollers	2
No. of Bottom Rollers	8
Track Shoes Width	500 mm

Swing System
Max. Swing Speed	13.3 rpm
Min. Swing Radius	3720-3660 mm

Drive and Brake
Max. Travel Speed	4.2 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps
Main Pump max. Oil Flow	2x221 lpm
Swing Circuit	275 kgf/cm²
Travel Circuit	350 kgf/cm²

Refill Capacity
Fuel Tank Capacity	300 L
Engine Oil and Filter	22 L
Hydraulic System	220 L
Hydraulic Tank Capacity	129 L

Weight and Ground Pressure
Operating Weight	20100 kg
Ground Pressure	0.52 kgf/cm²

Dimensions
Overall Length	9720 mm
Overall Height	2850 mm
Bucket Capacity	0.91-1.7 m³
Track Gauge	2390 mm
Ground Clearance	435 mm

Working Ranges
Max. Dumping Height	6230-6610 mm
Max. Digging Depth	5910-6600 mm
Max. Vertical Wall Digging Depth	5050-5980 mm
Max. Digging Reach	9250-9910 mm
Max. Digging Reach at Ground Level	9060-9740 mm
Boom Length	5680 mm
Arm Length	2200-2900 mm
Bucket Digging Force	11000 kgf
Arm Crowding Force	8800-11300 kgf
