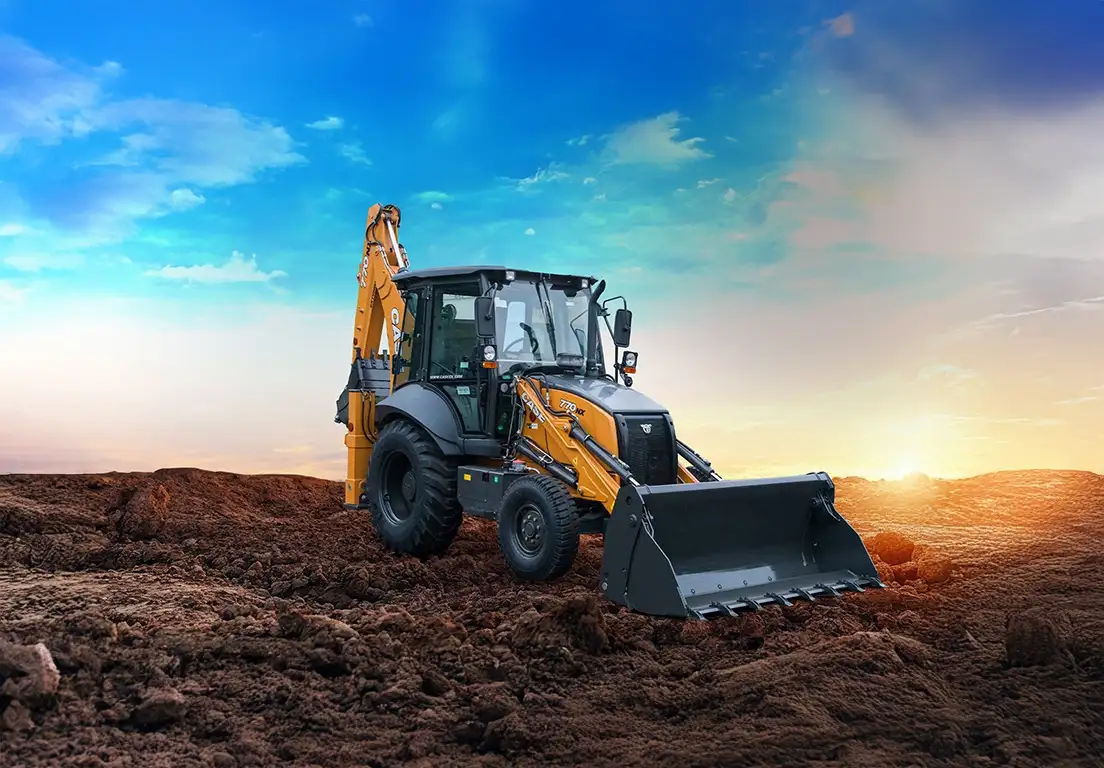

Case 770NX Magnum Backhoe Loader

The Case 770NX Magnum backhoe loader is ideal for construction, agriculture, infrastructure development, and waste management. This machine is built to tackle various tasks such as digging, trenching, excavation, loading, and unloading materials.

Powered by a BS5 (CEV) diesel engine, this machine offers maximum output and minimal maintenance. Its advanced variable displacement pump-type open center load sensing hydraulic system delivers quick work and smooth operation.

The Case 770NX Magnum backhoe loader has a 1.1 m³ large loader bucket, and its maximum forward speed is up to 34 km/h. These features deliver strength, speed, and stability in any type of terrain.

*Ex-Showroom Price

Coming Soon

Case 770NX Magnum Key Specifications

Case 770NX Magnum Features

Dump Height 2.73 m

Loadover Height 3.3 m

Reach at Ground 1.98 m

Max. Reach at Full Height 1.19 m

Arm Loader Breakout Force 5450 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.70 m

Bucket Pin Height 3.6 m

Reach at Full Height (Bucket Dumped) 0.76 m

Below Ground Level Dig Depth 0.11 m

Rollback at Ground 33°

Bucket Loader Breakout Force 5650 kgf

Max. Working Height 5.7 m

Max. Loadover Height 3.8 m

Bucket Rotation Power 204° & 160°

Side Reach to Center Line of Machine 5.90 m

Dipper Tearout Force (Arm Crowding Force) 3900 kgf

Engine

Make CNH (India)

Model F28-CF28A001AU

Engine Gross Power 54.6 KW(74 HP) @ 2200 rpm

Max. Torque 375 Nm @ 1400 rpm

Electrical System

Battery 12 V (110 Ah)

Transmission

Max. Forward Speed 34 km/l

Max. Reverse Speed 11.5 km/l

Transmission Type Power shuttle synchromesh transmission

Steering System

Steering type Power steering

Drive and Brake

Service Brake Hydraulic foot operated 2 disc per side

Parking Brake Mechanically actuated caliper type brake pack on rear axle input shaft

Tyres

Front Tyre Size 9*16 - 16PR (2WD), 12.5*18 - 12PR (4WD)

Rear Tyre Size 16.9*28 - 12PR (Std), 14*25 - 20PR (HD)

Hydraulic System

Main Pump Flow 143 lpm

Hydraulic System Relief Pressure 250 bar

Axles

Front Axle Type CNH PS1300 (2WD), Carraro NH 26.17M (4WD)

Rear Axle Type Carraro 28.32M

Refill Capacity

Fuel Tank Capacity 129 L

Engine Oil Capacity 8.5 L

Transmission Oil Capacity 18 L (2WD), 20 L (4WD)

Torque Converter None

Rear Axle Oil Capacity 17.1 L

Dimensions

Dump Height 2.73 m

Loadover Height 3.3 m

Reach at Ground 1.98 m

Max. Reach at Full Height 1.19 m

Arm Loader Breakout Force 5450 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.70 m

Bucket Pin Height 3.6 m

Reach at Full Height (Bucket Dumped) 0.76 m

Below Ground Level Dig Depth 0.11 m

Rollback at Ground 33°

Bucket Loader Breakout Force 5650 kgf

Max. Working Height 5.7 m

Max. Loadover Height 3.8 m

Bucket Rotation Power 204° & 160°

Side Reach to Center Line of Machine 5.90 m

Dipper Tearout Force (Arm Crowding Force) 3900 kgf

Top Applications of Case 770NX Magnum

1. Mining Operations

The Case 770NX Magnum's strong structure makes it an ideal option for challenging environments. It effectively handles various tasks on rough mining surfaces.

2. Construction

The Case 770NX Magnum backhoe loader is specially designed for achieving optimal power and maintaining high power output. It is equipped with an advanced hydraulic system that improves productivity on construction projects.

3. Road Construction

The Case 770NX Magnum delivers optimal performance in road construction due to its powerful engine and speed. It efficiently transports materials without compromising on power.

4. Agriculture

The Case 770NX Magnum comes with a large fuel tank and an advanced hydraulic system, which helps operators to extend working hours with minimized refueling. It offers fuel efficiency and maximum output in agriculture tasks.

5. Waste Management

The Case 770NX Magnum backhoe loader is built to effectively load waste into trucks at dump yards. And it also helps in garbage management and disposal operations.
