ACE AX 130 L
ACE AX 130 L

ACE AX 130 L

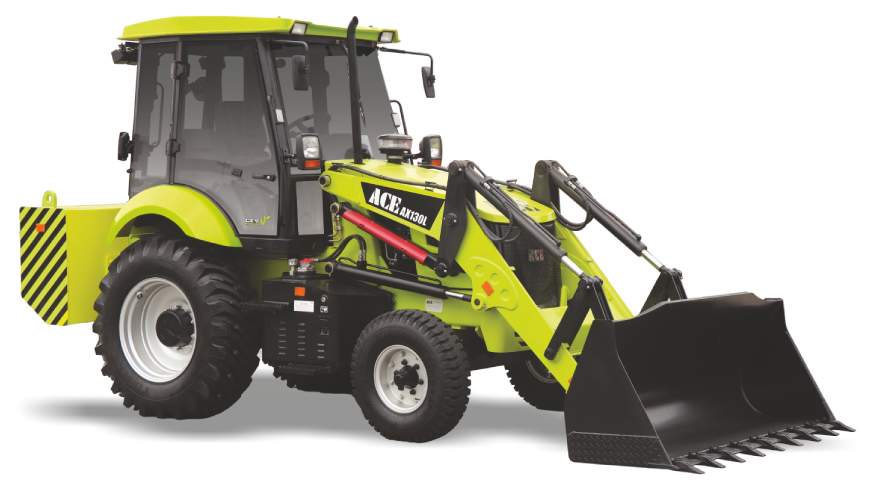

The ACE AX 130 backhoe loader is specified for excavation tasks. It is ideal for digging, excavating, and loading in any challenging terrain. AX 130 is used in various applications, including mining, quarrying, landscaping, and others. It comes in both 2WD and 4WD types.


ACE AX 130 boasts numerous features, including a centrally pivoted front axle, a Carraro planetary drive rear axle, a Kirloskar BS III diesel engine, among others. The ACE AX 130 backhoe loader offers a 6-in-1 bucket option.


Equipped with a diesel engine that produces 76 hp and delivers a high torque of 300 Nm, the ACE AX 130 is designed for performance. With a fuel tank capacity of 160 L and a maximum operating weight of 7500 kg, it delivers maximal performance, fuel efficiency, and stability.

ACE AX 130 L Key Specifications

ACE AX 130 L Features

Engine

Make Kirloskar
Model 4R1040TC (BSIII)
Engine Gross Power 76 HP @ 2200 rpm
Max. Torque 300 Nm @ 1400-1600 rpm

Electrical System

Battery 12 V

Transmission

Transmission Type Synchro shuttle transmission

Steering System

Steering Type Hydrostatic steering

Drive and Brake

Service Brake Hydraulically actuated wet disc brakes
Parking Brake Mechanically actuated disc brakes

Tyres

Front Tyre Size 9.00-16-16 PR (2WD), 12.5/80-12 PR (4WD)
Rear Tyre Size 16.90-28-12 PR (Std.), 14.00-25-20 PR (HD)

Hydraulic System

Main Pump Flow 102 lpm
Hydraulic System Relief Pressure 210 bar

Axles

Front Axle Type Drive & steer axle, centrally pivoted
Rear Axle Type Rigid axle with Carraro planetary drive

Refill Capacity

Fuel Tank Capacity 150 L
Engine Oil Capacity 11 L
Transmission Oil Capacity 17 L
Torque Converter 17 L
Rear Axle Oil Capacity 3 L

Dimensions

Dump Height 2.76 m
Load over Height 3.34 m
Reach at Ground 1.77 m
Max. Reach at Full Height 1.22 m
Arm Loader Break-out Force 4950 kgf
Loader Bucket Capacity 1.1 m³
Bucket Pin Height 3.63 m
Reach at Full Height (Bucket Dumped) 0.89 m
Below Ground Level Dig Depth 0.08 m
Rollback at Ground 44°
