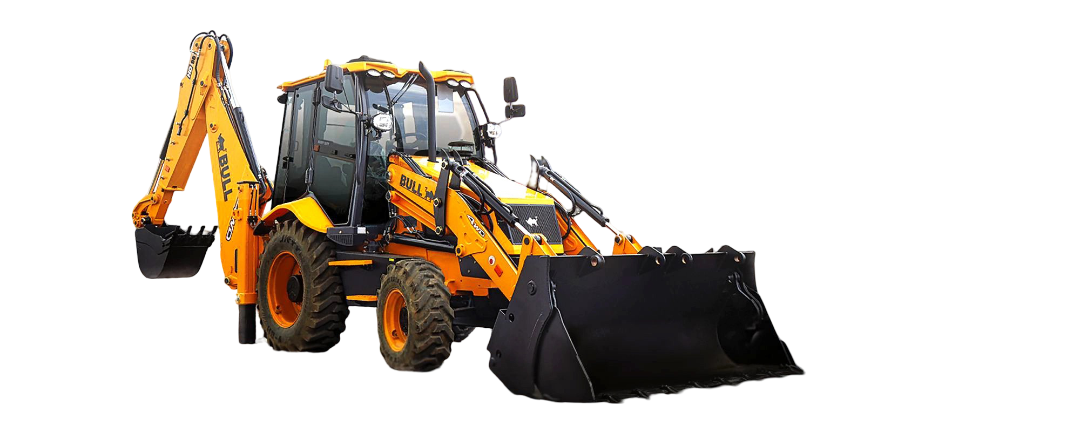

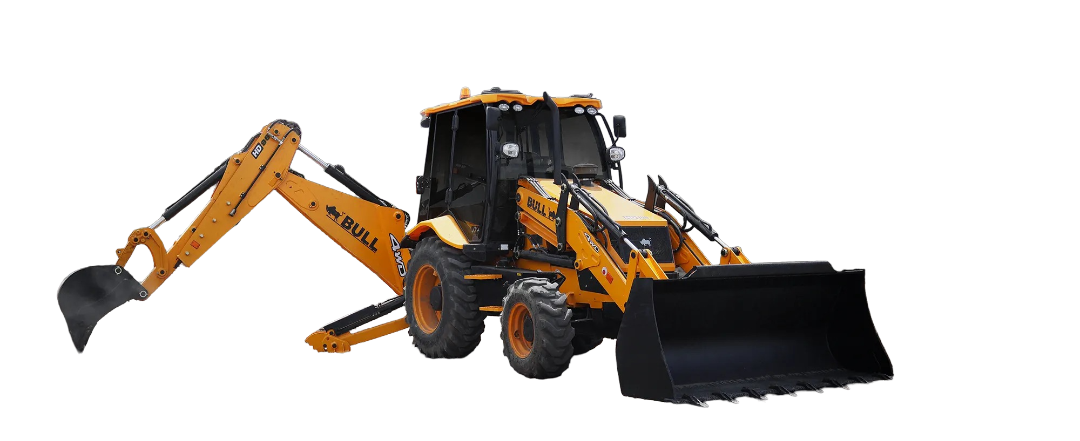

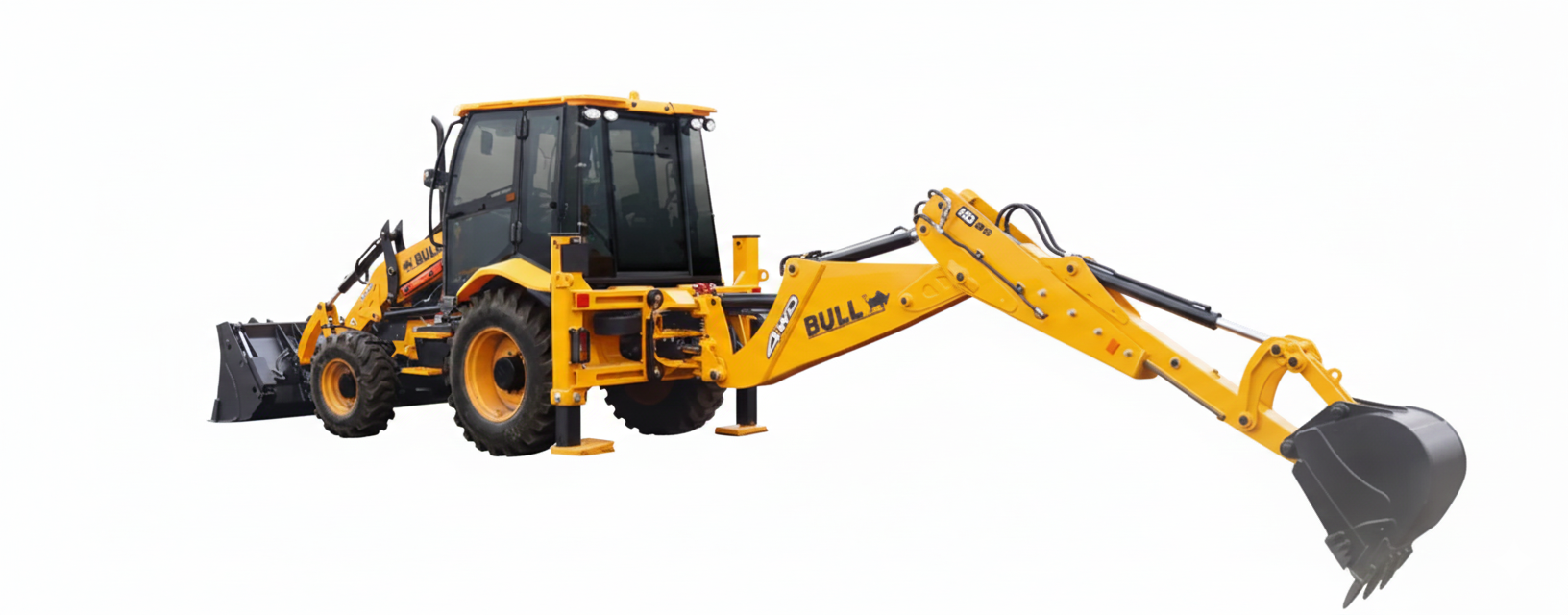

Bull HD 96 4WD

Bull HD 96 4WD backhoe loader is a premium machine that completes many tasks. Bull HD 96 4WD is majorly used in tough terrain like mining, quarrying, forestry, and more.

With cutting-edge features like a Kirloskar Stage II diesel engine, a drive axle in front and a steer axle in the rear, and a hydraulic power steering, the Bull HD 96 4WD stands out. Bull HD 96 4WD, offers strength and balance for tough jobs and is widely used in different industries.

With a 377 Nm high-torque engine and a 12-volt battery system, the Bull HD 96 4WD provides a top speed of 40 km/h for quicker task completion. Its 8150 kg operating weight capacity provides smooth material handling operations.

Bull HD 96 4WD Features

Dump Height 2.96 m

Load over Height 3.39 m

Reach at Ground 1.47 m

Max. Reach at Full Height 1.28 m

Arm Loader Break-out Force 5642 kgf

Loader Bucket Capacity 1.26 m³

Bucket Pin Height 3.61 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.1 m

Rollback at Ground 49°

Bucket Loader Break-out Force 8793 kgf

Max. Working Height 5.92-6.77 m

Max. Load over Height 4.14-5.02 m

Bucket Rotation Power 188°

Side Reach to Center Line of Machine 6.80-7.91 m

Dipper Tearout Force (Arm Crowding Force) 3316 kgf

Engine

Make Kirloskar

Model 4R 1040

Engine Gross Power 96 HP(71.6 KW) @ 2200 rpm

Max. Torque 377 Nm @ 1400 rpm

Electrical System

Battery 12 V Battery system (180 Ah)

Transmission

Max. Forward Speed 40 km/h

Max. Reverse Speed 9.3 km/h

Transmission Type Carraro synchro-shuttle transmission with integral torque converter

Steering System

Steering Type Power steering

Tyres

Front Tyre Size 9.00x16-16 PR (2WD), 12.5/80-18-12 PR (4WD)

Rear Tyre Size 16.9x28-12 PR, 19.5x24-12 PR

Hydraulic System

Main Pump Flow 134 lpm @ 2200 rpm

Dimensions

Dump Height 2.96 m

Load over Height 3.39 m

Reach at Ground 1.47 m

Max. Reach at Full Height 1.28 m

Arm Loader Break-out Force 5642 kgf

Loader Bucket Capacity 1.26 m³

Bucket Pin Height 3.61 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.1 m

Rollback at Ground 49°

Bucket Loader Break-out Force 8793 kgf

Max. Working Height 5.92-6.77 m

Max. Load over Height 4.14-5.02 m

Bucket Rotation Power 188°

Side Reach to Center Line of Machine 6.80-7.91 m

Dipper Tearout Force (Arm Crowding Force) 3316 kgf
