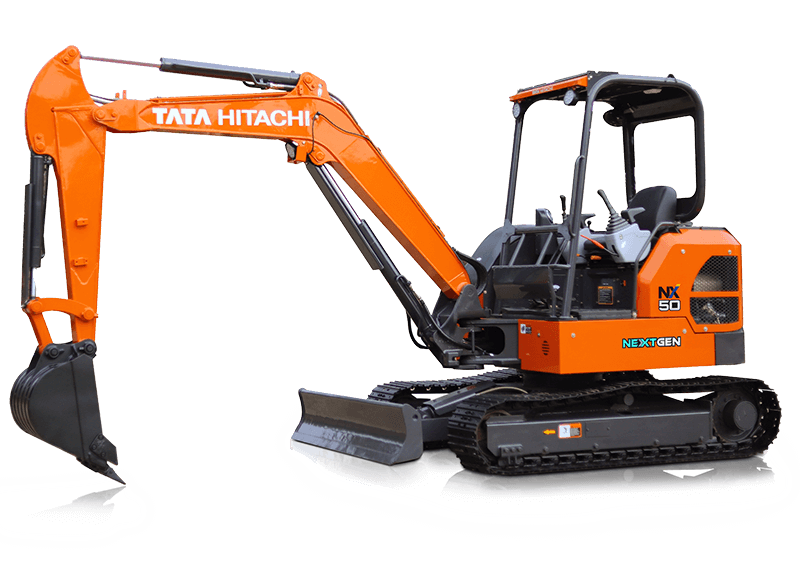

Tata Hitachi NX 50

Tata Hitachi NX 50 Mini Excavator offers a perfect blend of power, efficiency, and operational flexibility. Designed for versatility, this powerhouse excels in various applications, including construction, demolition, utility work, and pool installation. The NX 50 is the ideal choice for professionals who demand reliability and high performance from their equipment, ensuring effective task completion in diverse environments. Tata Hitachi NX 50 Mini Excavator boasts an impressive engine gross power of 33.5 HP and an operating weight of 5190 kg, making it capable of handling demanding tasks with ease. NX 50 Mini Excavator features a flexible bucket capacity ranging from 0.1 m³ to 0.22 m³, allowing operators to select the ideal size for their specific projects. With a robust bucket digging force of 3740 kgf, this excavator excels in tough digging conditions. Additionally, its maximum digging depth of 3547 mm ensures operators can achieve the necessary depth for various applications without the need for multiple passes. Tata Hitachi NX 50 Mini Excavator features an Optimum Hydraulic System (OHS) designed to maximize hydraulic efficiency and performance. This system, combined with hydraulic flow control, allows for precise control and smooth operation, enabling operators to perform delicate tasks with ease. Additionally, the NX 50 is engineered for low maintenance costs, making it a cost-effective solution for contractors and businesses aiming to minimize their operational expenses.

Tata Hitachi NX 50 Features

Engine
Model	Yanmar 4TNV88-BSTAH	Type	Water cooled, 4-cylinder diesel engine, direct injection
Engine Gross Power	25.9kW @ 2100 rpm	Max. Torque	143Nm @ 1200 rpm
Displacement	2.19 L

Undercarriage
No. of Shoes	39	No. of Upper Rollers	1
No. of Bottom Rollers	4	Track Shoe Width	400 mm

Swing System
Max. Swing Speed	9 rpm	Min. Swing Radius	2037 mm

Drive and Brake
Max. Travel Speed	4 km/h	Gradeability	30°(58%)

Hydraulic System
Main Pump Type	Two variable displacement axial piston pumps	Main Pump max. Oil Flow	1 X 9.5 lpm
Travel Circuit	250 kgf/cm2

Refill Capacity
Fuel Tank Capacity	62 L	Engine Oil and Filter	7.4 L
Hydraulic System	84 L	Hydraulic Tank Capacity	50 L

Weight and Ground Pressure
Operating Weight	5190 kg

Dimensions
Overall Length	5412 mm	Overall Height	2680 mm
Bucket Capacity	0.18-0.1 m³	Track Gauge	1450 mm
Ground Clearance	323 mm

Working Ranges
Max. Dumping Height	4194 mm	Max. Digging Depth	3547 mm
Max. Digging Reach	5934 mm	Max. Digging Reach at Ground Level	5782 mm
Boom Length	2884 mm	Arm Length	1500 mm
Bucket Digging Force	3740 kgf

Bucket Digging De
Arm Crowding Force	2450 kgf

Engine
Model	Yanmar 4TNV88-BSTAH
Type	Water cooled, 4-cylinder diesel engine, direct injection
Engine Gross Power	25.9kW @ 2100 rpm
Max. Torque	143Nm @ 1200 rpm
Displacement	2.19 L

Undercarriage
No. of Shoes	39
No. of Upper Rollers	1
No. of Bottom Rollers	4
Track Shoe Width	400 mm

Swing System
Max. Swing Speed	9 rpm
Min. Swing Radius	2037 mm

Drive and Brake
Max. Travel Speed	4 km/h
Gradeability	30°(58%)

Hydraulic System
Main Pump Type	Two variable displacement axial piston pumps
Main Pump max. Oil Flow	1 X 9.5 lpm
Travel Circuit	250 kgf/cm2

Refill Capacity
Fuel Tank Capacity	62 L
Engine Oil and Filter	7.4 L
Hydraulic System	84 L
Hydraulic Tank Capacity	50 L

Weight and Ground Pressure
Operating Weight	5190 kg

Dimensions
Overall Length	5412 mm
Overall Height	2680 mm
Bucket Capacity	0.18-0.1 m³
Track Gauge	1450 mm
Ground Clearance	323 mm

Working Ranges
Max. Dumping Height	4194 mm
Max. Digging Depth	3547 mm
Max. Digging Reach	5934 mm
Max. Digging Reach at Ground Level	5782 mm
Boom Length	2884 mm
Arm Length	1500 mm
Bucket Digging Force	3740 kgf
