Volvo EC950E
Volvo EC950E

Volvo EC950E

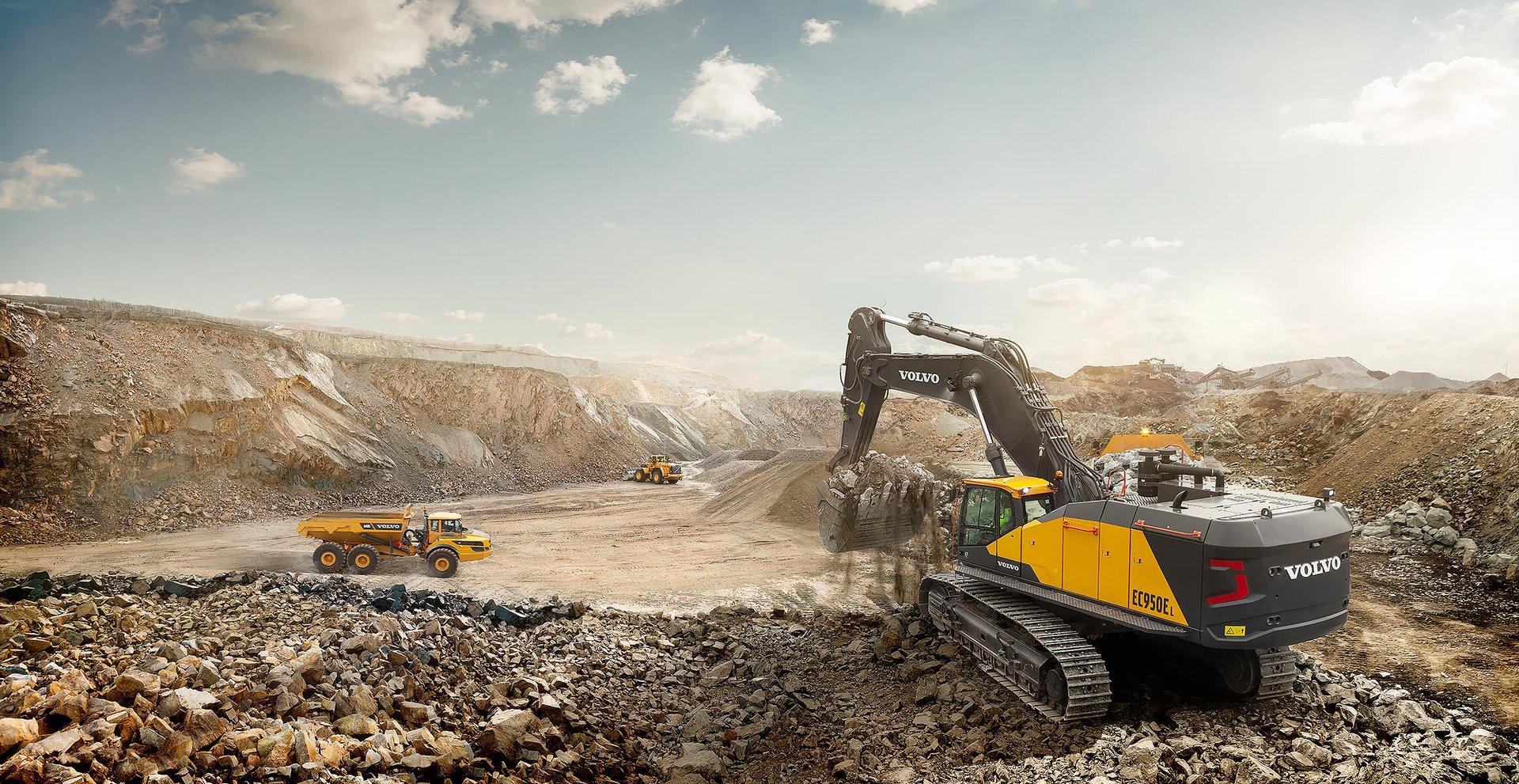

The Volvo Large Crawler Excavator EC950E, a powerhouse of performance and economy built to handle the most difficult excavation operations with ease. With an operational weight range of 89,960 to 91,840 kg, this excavator delivers great stability and strength, guarantees consistent performance. The EC950E, equipped with a powerful engine providing 450 kW of gross power, provides outstanding performance and fuel economy, allowing operators to achieve more in less time while lowering operational expenses. The EC950E has an outstanding lifting capability of 37,460 kilos along its undercarriage, allowing it to handle huge loads with ease and precision. With a maximum digging depth of 7,120 millimeters, it is ideal for excavating deep foundations, mines, and other large-scale projects. The EC950E is versatile enough to meet the individual needs of each task, with bucket sizes ranging from 3.9 to 6 cubic meters. The Volvo EC950E has a roomy and ergonomic interior with simple controls and great visibility.

Volvo EC950E Key Specifications

Volvo EC950E Features

Engine

Model Volvo D16E
Engine Gross Power 611 hp(450 kw) @ 1800 rpm
Max. Torque 2650 Nm @ 1350 rpm
Displacement 16.1 L

Undercarriage

No. of Shoes 2 x 51
No. of Upper Rollers 2 x 3
No. of Bottom Rollers 2 x 9
Track Shoe Width 650-900 mm

Swing System

Max. Swing Speed 6.9 rpm
Min. Swing Radius 4970-5910 mm

Drive and Brake

Max. Travel Speed 4.4 km/h
Gradeability 33°

Hydraulic System

Main Pump Type 3 variable displacement axial piston pumps

Hydraulic System

Main Pump max. Oil Flow (2 x 515 lpm), (1 x 147 lpm)
Swing Circuit 28.4 MPa
Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 1265 L
Engine Oil and Filter 55 L
Hydraulic System 900 L
Hydraulic Tank Capacity 460 L

Weight and Ground Pressure

Operating Weight 89960-91840 kg
Ground Pressure 89.9-122 kPa

Dimensions

Overall Length 13615-14765 mm
Overall Height 3655 mm
Bucket Capacity 3.9-6.0 m³
Track Gauge 3550 mm
Ground Clearance 915 mm

Working Ranges

Max. Dumping Height 8090-9200 mm
Max. Digging Depth 7120-8950 mm
Max. Vertical Wall Digging Depth 5390-7300 mm
Max. Digging Reach 12270-14020 mm
Max. Digging Reach at Ground Level 11950-13750 mm
Boom Length 7.25-8.4 m
Arm Length 2.9-3.7 m
Bucket Digging Force 388-478 kN
Arm Crowding Force 359-420 kN
