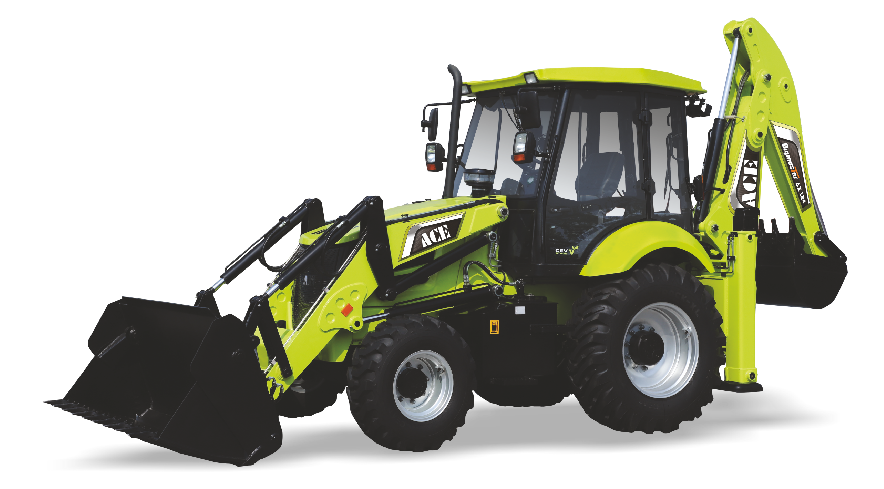

ACE AX 124 Backhoe Loader

The ACE AX 124 backhoe loader is known for handling various tasks such as digging, grading, and loading. It also serves various applications, such as construction, agriculture, demolition sites, and many more. ACE AX 124 offers backhoe loaders in both 2WD and 4WD configurations.

ACE AX 124 has many features, like a wet disc brake system that helps reduce accidents on the work site and a Tata BS V diesel engine that helps to maximise performance. It comes with a 6-in-1 loader bucket option that provides multiple functions in a single machine.

ACE AX 124 is combined with a 150 L fuel tank, helping in long hours of working capacity, 118 lpm flow of hydraulic pump support machine to move fast, and 8040 to 8190 kg operating weight capacity.

*Ex-Showroom Price

₹ 23 - 31 Lakhs

ACE AX 124 Key Specifications

ACE AX 124 Features

Dump Height 2.76 m

Load over Height 3.34 m

Reach at Ground 1.77 m

Max. Reach at Full Height 1.22 m

Arm Loader Break-out Force 4950 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.25 m

Bucket Pin Height 3.63 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.08 m

Rollback at Ground 44°

Max. Working Height 5.47 m

Max. Load Over Height 3.79 m

Bucket Rotation Power 175°

Side Reach to Center Line of Machine 5.59 m

Dipper Tearout Force (Arm Crowding Force) 4000 kgf

Engine

Make Tata (2WD) / Mahindra (4WD)

Model 497 TCIC BS-V (2WD) / MCVN35TI074C E5A BS-V (4WD)

Engine Gross Power 74 HP (2WD) / 74.8 HP (4WD) @ 2200 rpm

Max. Torque 345 Nm (2WD) / 400 Nm (4WD)

Electrical System

Battery 12 V

Transmission

Max. Forward Speed 28 km/h

Transmission Type Synchro shuttle transmission

Steering System

Steering Type Hydrostatic steering

Drive and Brake

Service Brake Hydraulically actuated wet disc brakes

Parking Brake Mechanically actuated disc brakes

Tyres

Front Tyre Size 12.5/80-18-12 PR (4WD), 9.00-16-16 PR (2WD)

Rear Tyre Size 16.90-28-12 PR

Hydraulic System

Main Pump Flow 118 lpm

Hydraulic System Relief Pressure 210 bar

Axles

Front Axle Type Drive & steer axle, centrally pivoted

Rear Axle Type Rigid axle with Carraro planetary drive

Refill Capacity

Fuel Tank Capacity 150 L

Engine Oil Capacity 10 L

Transmission Oil Capacity 17 L

Torque Converter 17 L

Rear Axle Oil Capacity 3 L

Dimensions

Dump Height 2.76 m

Load over Height 3.34 m

Reach at Ground 1.77 m

Max. Reach at Full Height 1.22 m

Arm Loader Break-out Force 4950 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.25 m

Bucket Pin Height 3.63 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.08 m

Rollback at Ground 44°

Max. Working Height 5.47 m

Max. Load Over Height 3.79 m

Bucket Rotation Power 175°

Side Reach to Center Line of Machine 5.59 m

Dipper Tearout Force (Arm Crowding Force) 4000 kgf

Top Applications of ACE AX 124

1. Utility Installation

The ACE AX 124 is ideal for installing underground cables, pipelines, and other utility infrastructure effectively.

2. Road Maintenance

With its powerful drive and stability, the ACE AX 124 helps in road repair tasks, such as grading and debris clearing, in any rough terrain.

3. Quarrying Operations

Built from high-strength steel and a robust design, the ACE AX 124 handles heavy loads and tough quarry environments, providing easy material transport.

4. Demolition Work

Its superior hydraulic system and strength make the ACE AX 124 a suitable option for demolition and safely transporting debris and equipment in confined spaces.

5. Construction

The ACE AX 124 is commonly used in material handling and site preparation, improving productivity on construction sites.
