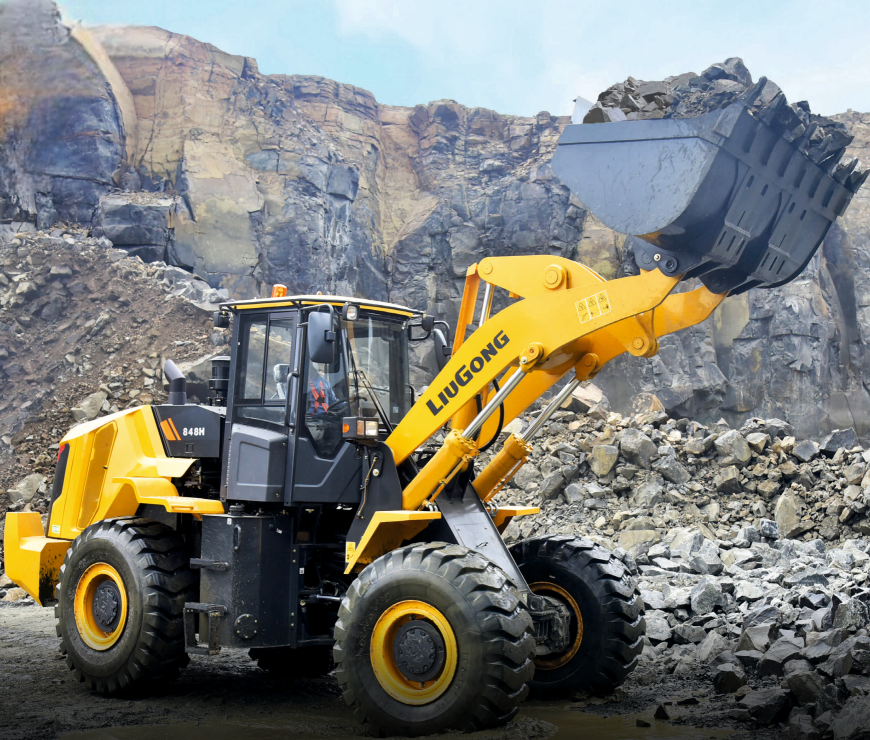

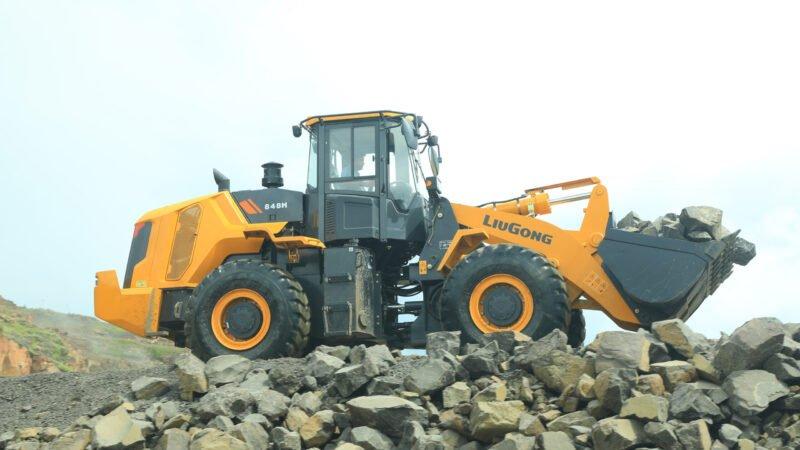

Liugong 848H

Liugong's Wheel Loader 848H is a powerful and adaptable equipment built to perform a variety of material handling jobs. The 848H features a strong 162 kW (220 HP) engine that runs at 2,000 rpm. With an operational weight of 16,870 kg, the 848H provides exceptional stability and durability. The 848H has a 280 L fuel tank, allowing for prolonged running duration. The 848H bucket has a substantial capacity of 2.8 m³, allowing for efficient material handling and loading. With a maximum torque of 1,100 Nm at 1,400 rpm, the 848H provides strong performance and exceptional traction for big loads and difficult terrain. Liugong Wheel Loader 848H is engineered to provide great performance, efficiency, and durability.

Liugong 848H Features

Engine
Model	Yuchai YCK09220-B460	Engine Gross Power	220 hp(162 kW) @ 2000 RPM
Max. Torque	1100 Nm @ 1400 RPM	Displacement	9.41 L

Electrical System
Battery	12 V

Transmission
Transmission Type	Powerhift	Max. Forward Speed	40 km/h
Max. Reverse Speed	17 km/h	Torque Converter	Twin Turbine, Four Members

Axles
Front Axle Type	Dry Type	Rear Axle Type	Dry Type
Oscillation Angle	12°

Drive and Brake
Service Brake	Air over Hydraulic with Independent	Parking Brake	Drum Brake Mechanical Actuation

Steering System
Steering Type	Articulation	Articulation Angle	38°
Turning Radius	7000 mm

Hydraulic System
Main Pump	Gear Pump	Main Pump Flow	332 LPM

Hydraulic Cycle Times
Total Hydraulic Cycle Time	10.3 Sec.

Refill Capacity
Fuel Tank Capacity	280 L	Transmission Oil Capacity	35 L
Axle Oil Capacity	33 L	Engine Oil Capacity	26 L

Operating Specifications
Operating Weight	16870 kg

Dimensions
Overall Length	8146 mm	Max. Digging Depth	50 mm
Loader Bucket Breakout Force	17029 kgf	Bucket Capacity	2.8 m³
Static Tipping Load	12875 kg	Wheelbase	3250 mm
Ground Clearance	423 mm

Engine
Model	Yuchai YCK09220-B460
Engine Gross Power	220 hp(162 kW) @ 2000 RPM
Max. Torque	1100 Nm @ 1400 RPM
Displacement	9.41 L

Electrical System
Battery	12 V

Transmission
Transmission Type	Powerhift
Max. Forward Speed	40 km/h
Max. Reverse Speed	17 km/h
Torque Converter	Twin Turbine, Four Members

Axles
Front Axle Type	Dry Type
Rear Axle Type	Dry Type
Oscillation Angle	12°

Drive and Brake
Service Brake	Air over Hydraulic with Independent
Parking Brake	Drum Brake Mechanical Actuation

Steering System
Steering Type	Articulation
Articulation Angle	38°
Turning Radius	7000 mm

Hydraulic System
Main Pump	Gear Pump
Main Pump Flow	332 LPM

Hydraulic Cycle Times
Total Hydraulic Cycle Time	10.3 Sec.

Refill Capacity
Fuel Tank Capacity	280 L
Transmission Oil Capacity	35 L
Axle Oil Capacity	33 L
Engine Oil Capacity	26 L

Operating Specifications
Operating Weight	16870 kg

Dimensions
Overall Length	8146 mm
Max. Digging Depth	50 mm
Loader Bucket Breakout Force	17029 kgf
Bucket Capacity	2.8 m³
Static Tipping Load	12875 kg
Wheelbase	3250 mm
Ground Clearance	423 mm
