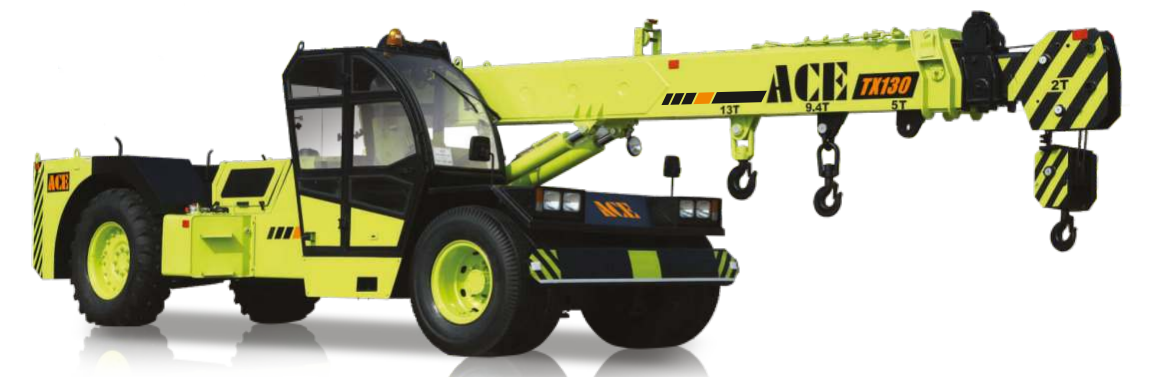

ACE TX 130

ACE TX 130 Nextgen Hydraulic Crane suitable for multiple industries. In dismantling operations, it delivers the precision and power required for safe and efficient disassembly of structures. TX 130 Nextgen Hydraulic Crane is also highly effective in wind turbine installation, supporting the lifting and positioning of critical components with ease. For railway maintenance, it provides reliable lifting capabilities for repairing heavy equipment, while in the power and utilities sector, ACE TX 130 ensures smooth handling of infrastructure projects and repairs. ACE TX 130 boasts a lifting capacity of 13 tons and is powered by a Mahindra BS III CEV Engine, delivering 47.5 HP of gross power. TX 130 Nextgen Hydraulic Crane offers a maximum height of 12.8 meters and an effective operating weight of 12,960 kg, ensuring efficient and powerful lifting capabilities. The crane’s robust design guarantees high performance, making ACE TX 130 a reliable choice for industries that require precise handling and dependable machinery for various heavy-duty tasks. ACE TX 130 Nextgen Hydraulic Crane is equipped with several innovative features to enhance both performance and safety. Its power steering system, driven by Orbitrol with twin hydraulic double-acting cylinders, ensures smooth and precise control during operations. Additionally, safe load indicators are in place to monitor and prevent overloading, while the over-hoist hydraulic cutoff offers extra safety by preventing accidental over-hoisting during lifts. These advanced features make the TX 130 an efficient and secure option for a wide range of applications, ensuring optimal performance in demanding environments.

ACE TX 130 Features

Engine
Model	Mahindra 4485 IAE (BS III CEV)	Engine Gross Power	47.5 HP(34.9 KW) @ 2200 rpm

Electrical System
Battery	12 V, 75 Ah Negative earth with 35 alternator	Voltage	12 V

Transmission
Transmission Type	Heavy duty transmission	Clutch Type	Hydraulically operated, heavy duty, dry friction cera-metallic clutch plate with diaphragm type pressure plate
Max. Travel Speed	28 km/h

Steering System
Steering Type	Power steering	Articulation Angle	45°

Drive and Brake
Service Brake	Air operated disc brakes on rear wheels and pneumatically assisted hydraulic brakes on front wheels	Parking Brake	pneumatically operated parking brakes

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)	Rear Tyre Size	13.00x24-2 PR (2 Nos.)

Refill Capacity
Fuel Tank Capacity	85 L

Hoist and Winch System
Hoist Rope Diameter	13 mm	Hoist Single line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	13 T

Engine
Model	Mahindra 4485 IAE (BS III CEV)
Engine Gross Power	47.5 HP(34.9 KW) @ 2200 rpm

Electrical System
Battery	12 V, 75 Ah Negative earth with 35 alternator
Voltage	12 V

Transmission
Transmission Type	Heavy duty transmission
Clutch Type	Hydraulically operated, heavy duty, dry friction cera-metallic clutch plate with diaphragm type pressure plate
Max. Travel Speed	28 km/h

Steering System
Steering Type	Power steering
Articulation Angle	45°

Drive and Brake
Service Brake	Air operated disc brakes on rear wheels and pneumatically assisted hydraulic brakes on front wheels
Parking Brake	pneumatically operated parking brakes

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)
Rear Tyre Size	13.00x24-2 PR (2 Nos.)

Refill Capacity
Fuel Tank Capacity	85 L

Hoist and Winch System
Hoist Rope Diameter	13 mm
Hoist Single line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	13 T
