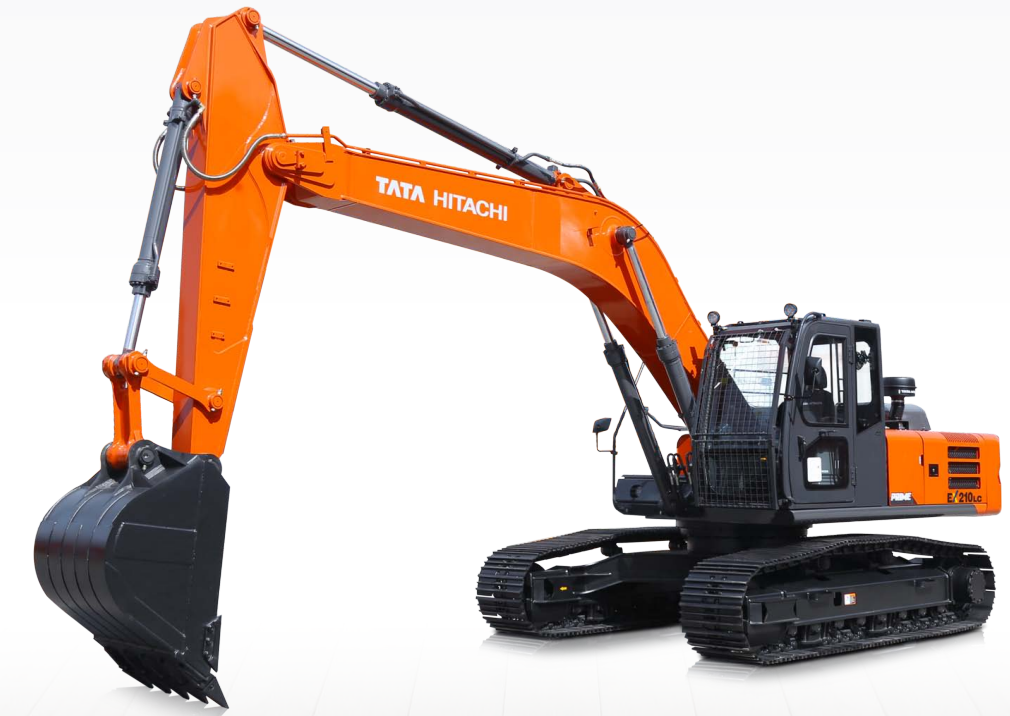

Tata Hitachi EX 210 LC Prime is a Hydraulic Excavator that excels in performance and durability, ensuring you can tackle even the most demanding tasks with confidence. This powerful and efficient machine is designed for a variety of heavy-duty applications, including general construction, mining, infrastructure, and agriculture. Its advanced technology and robust design make it the ideal choice for effectively handling a range of challenging tasks. Tata Hitachi EX 210 LC Prime is a built to deliver exceptional performance and reliability in demanding environments, featuring an impressive engine gross power of 131 HP and an operating weight ranging from 20,600 kg to 20,800 kg. EX 210 LC Prime Hydraulic Excavator offers a versatile bucket capacity of 0.9 to 1.7 m³, enabling effective material handling across various projects. With a substantial bucket digging force of 12,250 kgf, it ensures efficient and powerful excavation, making it ideal for tough tasks. Its maximum digging depth of 5910 mm to 6600 mm provides excellent reach for tackling deep excavation challenges effortlessly. Tata Hitachi EX 210 LC Prime Hydraulic Excavator features high swing torque, enhancing operational efficiency and productivity. Its smooth operating levers are designed to reduce effort by 30%, ensuring comfort for operators during extended periods of use. The ergonomic controls come with an all-new audio player and fan, significantly elevating the operator's experience. Additionally, the auto idle and auto deceleration system optimizes fuel consumption, making EX 210 LC Prime Hydraulic Excavator not only powerful but also cost-effective for various heavy-duty applications.
Engine | |||
---|---|---|---|
Modle | Cummins 6BT5.9C | Type | 6 Cylinder water cooled, direct injection |
Engine Gross Power | 131 HP @ 2000 rpm | Max. Torque | 537 Nm @ 1300 rpm |
Undercarriage | |||
---|---|---|---|
No. of Shoes | 52 | No. of Upper Rollers | 2 |
No. of Bottom Rollers | 8 | Track Shoe Width | 600/800 mm |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 13.3 rpm | Min. Swing Radius | 3720-3660 mm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 4.2 km/h | Gradeability | 35°(70%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 2 Variable displacements axial piston pumps | Main Pump max. Oil Flow | 2x221 lpm |
Swing Circuit | 275 kgf/cm² | Travel Circuit | 350 kgf/cm² |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 300 L | Engine Oil and Filter | 22 L |
Hydraulic System | 220 L | Hydraulic Tank Capacity | 129 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 20600-20800 kg | Ground Pressure | 0.34-0.45 kgf/cm² |
Dimensions | |||
---|---|---|---|
Overall Length | 9720 mm | Overall Height | 2850 mm |
Bucket Capacity | 0.91-1.7 m³ | Track Gauage | 2390 mm |
|
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 6230-6610 mm | Max. Digging Depth | 5910-6600 mm |
Max. Vertical Wall Digging Depth | 5050-5980 mm | Max. Digging Reach | 9250-9910 mm |
|
Engine | |
---|---|
Modle | Cummins 6BT5.9C |
Type | 6 Cylinder water cooled, direct injection |
Engine Gross Power | 131 HP @ 2000 rpm |
Max. Torque | 537 Nm @ 1300 rpm |
Undercarriage | |
---|---|
No. of Shoes | 52 |
No. of Upper Rollers | 2 |
No. of Bottom Rollers | 8 |
Track Shoe Width | 600/800 mm |
Swing System | |
---|---|
Max. Swing Speed | 13.3 rpm |
Min. Swing Radius | 3720-3660 mm |
Drive and Brake | |
---|---|
Max. Travel Speed | 4.2 km/h |
Gradeability | 35°(70%) |
Hydraulic System | |
---|---|
Main Pump Type | 2 Variable displacements axial piston pumps |
Main Pump max. Oil Flow | 2x221 lpm |
Swing Circuit | 275 kgf/cm² |
Travel Circuit | 350 kgf/cm² |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 300 L |
Engine Oil and Filter | 22 L |
Hydraulic System | 220 L |
Hydraulic Tank Capacity | 129 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 20600-20800 kg |
Ground Pressure | 0.34-0.45 kgf/cm² |
Dimensions | |
---|---|
Overall Length | 9720 mm |
Overall Height | 2850 mm |
Bucket Capacity | 0.91-1.7 m³ |
Track Gauage | 2390 mm |
Ground Clearance | 435 mm |
|
Working Ranges | |
---|---|
Max. Dumping Height | 6230-6610 mm |
Max. Digging Depth | 5910-6600 mm |
Max. Vertical Wall Digging Depth | 5050-5980 mm |
Max. Digging Reach | 9250-9910 mm |
Max. Digging Reach at Ground Level | 9060-9740 mm |
Boom Length | 5680 mm |
Arm Length | 2200-2900 mm |
Bucket Digging Force | 11000 kgf |
Arm Crowding Force | 8800-11300 kgf |
|
