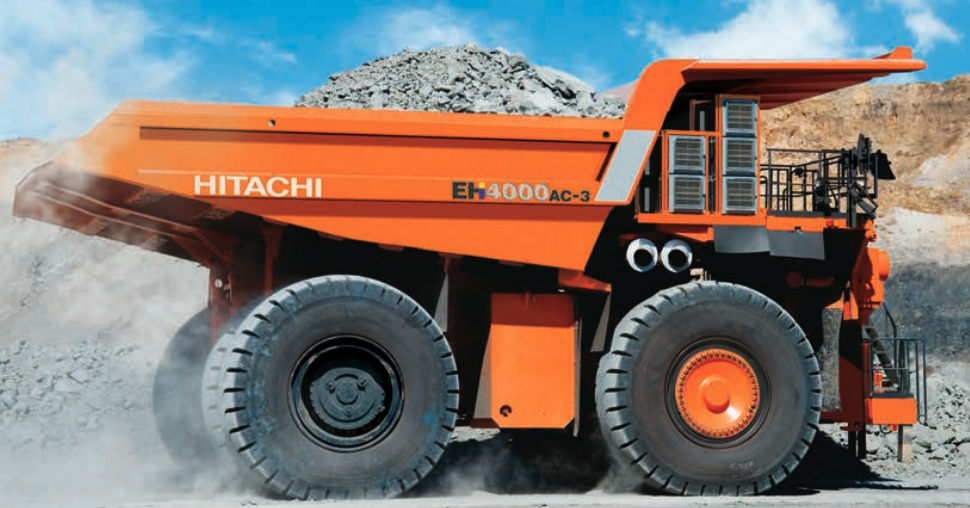

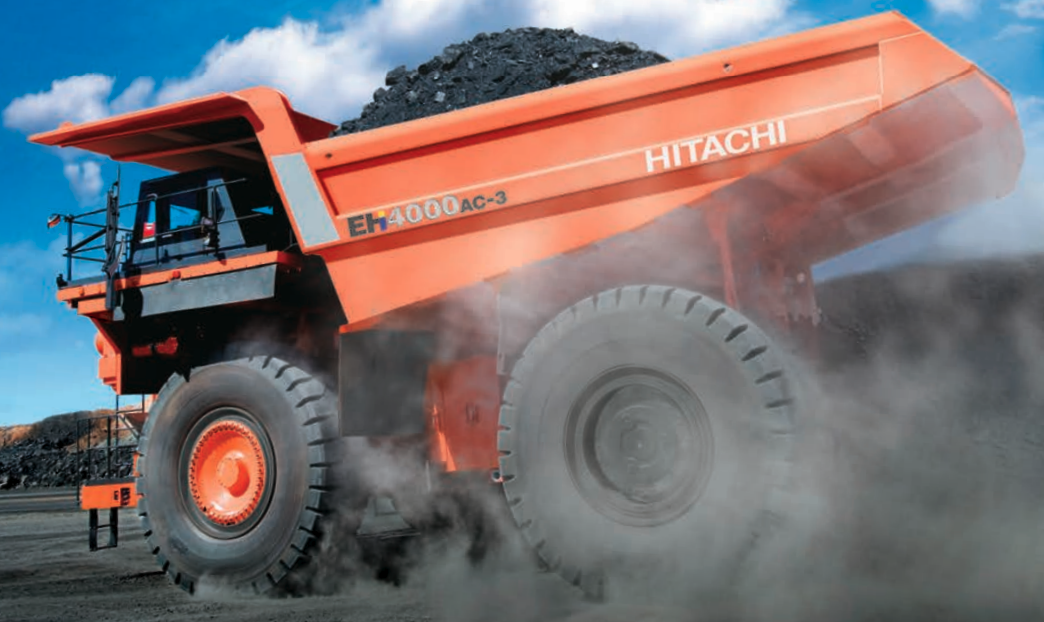

Tata Hitachi EH4000AC-3 Dump Truck is a high-performance vehicle engineered to tackle challenging applications in surface mining, waste management, landscaping, and heavy equipment transport. Designed for businesses seeking a reliable solution for heavy-duty applications, the Tata Hitachi EH4000AC-3 Dump Truck offers exceptional power and durability, featuring advanced technology for enhanced performance. With its high payload capacity, this dump truck ensures efficient material handling, while specialized control systems optimize productivity and safety in demanding industries. Tata Hitachi EH4000AC-3 Dump Truck is a high-performance vehicle equipped with a powerful 2500 HP engine and an operating weight of 384,000 KG, engineered for maximum efficiency and reliability in heavy-duty tasks. This dump truck boasts an impressive nominal payload capacity of 221 tonnes, making it ideal for large-scale material transportation. Its robust design ensures that the Tata Hitachi EH4000AC-3 can tackle the toughest environments while maintaining optimal performance. Tata Hitachi EH4000AC-3 Dump Truck is the key to elevating operational efficiency and productivity. Tata Hitachi EH4000AC-3 is equipped with cutting-edge features like the Truck Speed Control system, which enhances operational efficiency by maintaining consistent speeds. The Fast Filling System reduces downtime by enabling quicker refueling, while the Slid Skid Control System improves stability and safety on challenging terrains, ensuring smooth and secure operations.
Engine | |||
---|---|---|---|
Model | Cummins QSKTA60-CE | Engine Gross Power | 2500 HP(1864 KW) @ 1900 rpm |
Max. Torque | 9839 Nm @ 1500 rpm | No. of Cylinders | 16 |
|
Electrical System | |||
---|---|---|---|
Battery | 24 V, 140 Ah | Alternator | MTU engine driven alternator |
Starting Motor | 24 volt electric |
Drive and Brake | |||
---|---|---|---|
Service Brake | Dry disc (Front axle), Oil-cooled wet disc (Rear axle) | Parking Brake | Spring applied, hydraulically released brake |
Tyres | |||
---|---|---|---|
Tyre Size | 46/90R57 | Rim Size | 736.6 mm |
Suspension | |||
---|---|---|---|
Front Suspensions Type | Independent trailing arms make up the front axle | Rear Suspensions Type | "A" frame structure, integral with axle housing |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 2680 L | Cooling System Capacity | 619 L |
Operating Specifications | |||
---|---|---|---|
Gross Vehicle Weight | 384000 kg | Payload Weight | 221 T |
Dimensions | |||
---|---|---|---|
Overall Length | 14390 mm | Overall Height | 7310 mm |
Overall Width | 7290 mm | Ground Clearance | 990 mm |
|
Engine | |
---|---|
Model | Cummins QSKTA60-CE |
Engine Gross Power | 2500 HP(1864 KW) @ 1900 rpm |
Max. Torque | 9839 Nm @ 1500 rpm |
No. of Cylinders | 16 |
Displacement | 60 L |
|
Electrical System | |
---|---|
Battery | 24 V, 140 Ah |
Alternator | MTU engine driven alternator |
Starting Motor | 24 volt electric |
Drive and Brake | |
---|---|
Service Brake | Dry disc (Front axle), Oil-cooled wet disc (Rear axle) |
Parking Brake | Spring applied, hydraulically released brake |
Tyres | |
---|---|
Tyre Size | 46/90R57 |
Rim Size | 736.6 mm |
Suspension | |
---|---|
Front Suspensions Type | Independent trailing arms make up the front axle |
Rear Suspensions Type | "A" frame structure, integral with axle housing |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 2680 L |
Cooling System Capacity | 619 L |
Operating Specifications | |
---|---|
Gross Vehicle Weight | 384000 kg |
Payload Weight | 221 T |
Dimensions | |
---|---|
Overall Length | 14390 mm |
Overall Height | 7310 mm |
Overall Width | 7290 mm |
Ground Clearance | 990 mm |
Wheelbase | 6050 mm |
|
