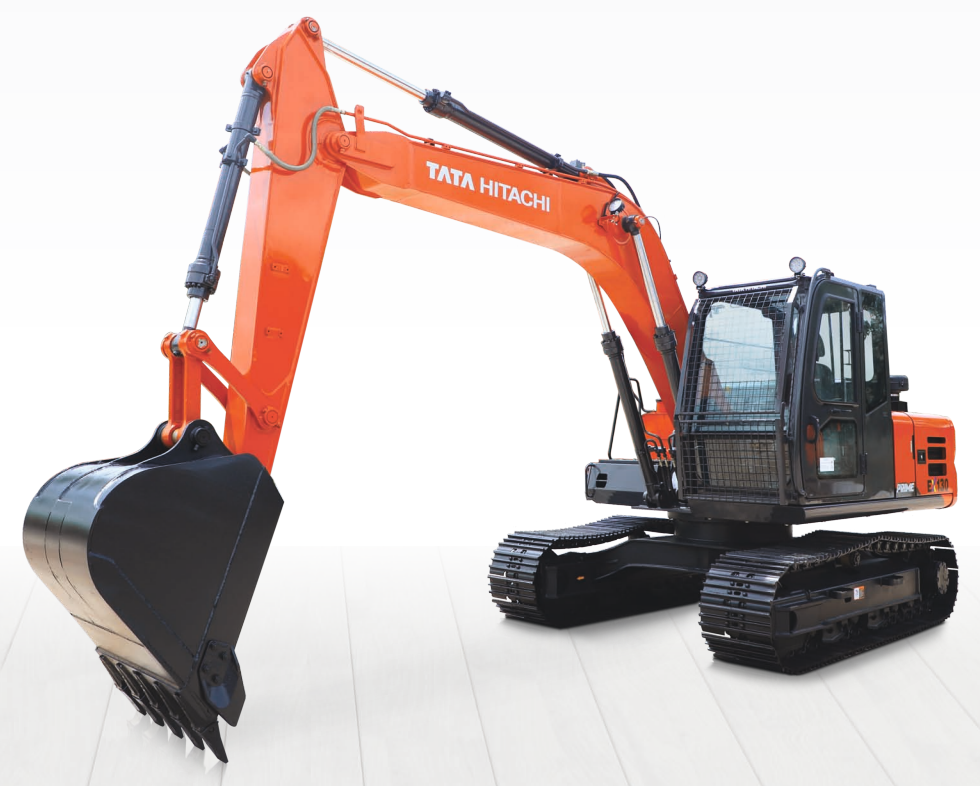

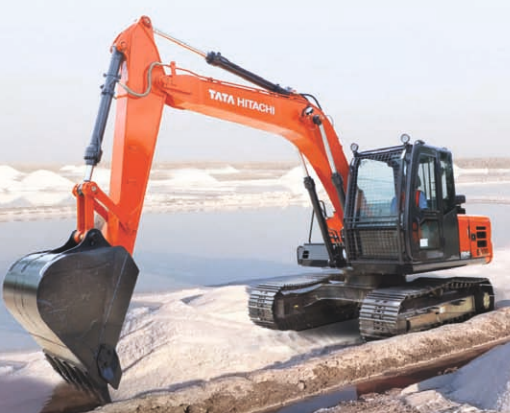

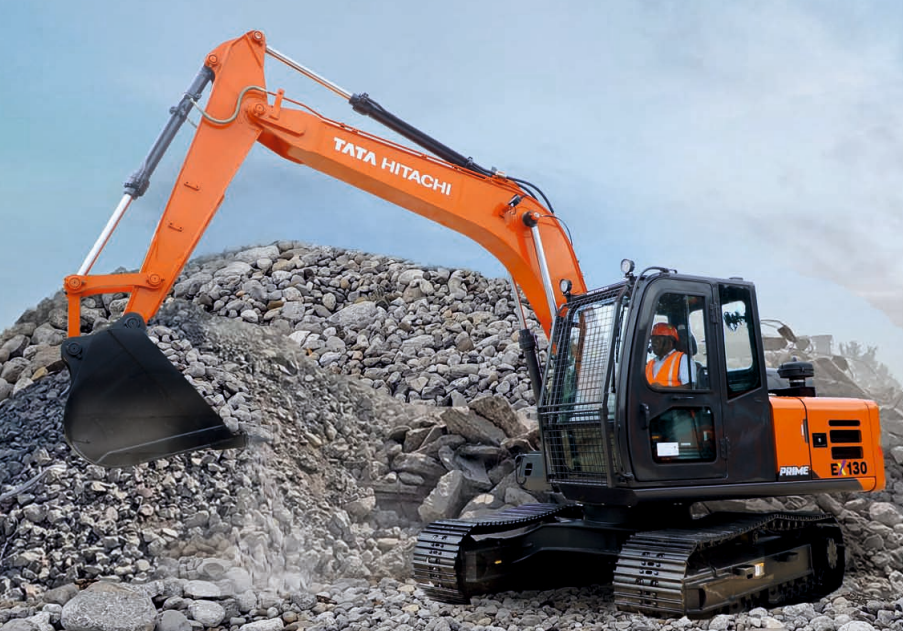

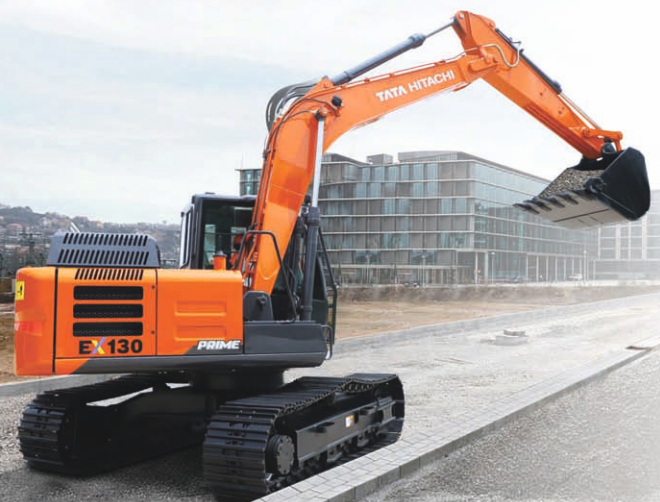

Tata Hitachi EX 130 PRIME

Tata Hitachi Ex 130 Prime Hydraulic Excavator is an eco-friendly and cost-effective choice for minimizing expenses without sacrificing performance. Ideal for road construction, quarries, solid waste management, and general construction, the Tata Hitachi Ex 130 Prime offers reliability, versatility, and power. Its advanced technology and robust design ensure efficient handling of heavy-duty tasks. Tata Hitachi Ex 130 Prime boasts a robust engine gross power of 75 HP and an operating weight of 12,172 kg to 12,518 kg, designed for demanding tasks with maximum productivity. Its versatile bucket capacity of 0.52 to 0.7 m³ efficiently handles different materials, while the bucket digging force of 7300 kgf ensures powerful performance for tough digging operations. With a maximum digging depth of 4720 mm to 4964 mm, it offers excellent reach, making it ideal for deep excavation projects across various terrains. Tata Hitachi Ex 130 Prime features an upgraded engine system designed for performance and durability. Its patented Auto Idle and Auto Deceleration System reduces engine speed when idle, optimizing fuel consumption and lowering operating costs. The dual work mode system offers flexibility, allowing operators to switch between power and economy modes based on job requirements. Additionally, the fuel-saving pump system further enhances overall efficiency, making this excavator an economical and high-performing choice for various tasks.

Tata Hitachi EX 130 PRIME Features

Engine
Model	TATA 697 NA	Type	Water cooled, 6-cylinder in-line diesel engine
Engine Gross Power	74.96 HP @ 2200 rpm	Max. Torque	249 Nm @ 2000 rpm

Undercarriage
No. of Shoes	41	No. of Upper Rollers	1
No. of Bottom Rollers	6	Track Shoe Width	500 mm

Swing System
Max. Swing Speed	13.8 rpm	Min. Swing Radius	2460 mm

Drive and Brake
Max. Travel Speed	4.3 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps	Main Pump max. Oil Flow	2x115 lpm
Swing Circuit	285 kgf/cm²	Travel Circuit	355 kgf/cm²

Refill Capacity
Fuel Tank Capacity	250 L	Engine Oil And Filter	17 L
Hydraulic System	126 L	Hydraulic Tank Capacity	72 L

Weight and Ground Pressure
Operating Weight	12172-12518 kg	Ground Pressure	1043 kgf/cm²

Dimensions
Overall Length	7275 mm	Overall Height	2690 mm
Bucket Capacity	0.52-0.70 m³	Track Gauge	1990 mm
Ground Clearance	440 mm

Working Ranges
Max. Dumping Height	5280-5500 mm	Max. Digging Depth	4720-4964 mm
Max. Vertical Wall Digging Depth	4040-4160 mm	Max. Digging Reach	7410-7699 mm
Max. Digging Reach at Ground Level	7250-7552 mm	Boom Length	4250 mm
Arm Length	1950-2250 mm	Bucket Digging Force	7300 kgf
Arm Crowding Force	5400 kgf

Engine
Model	TATA 697 NA
Type	Water cooled, 6-cylinder in-line diesel engine
Engine Gross Power	74.96 HP @ 2200 rpm
Max. Torque	249 Nm @ 2000 rpm

Undercarriage
No. of Shoes	41
No. of Upper Rollers	1
No. of Bottom Rollers	6
Track Shoe Width	500 mm

Swing System
Max. Swing Speed	13.8 rpm
Min. Swing Radius	2460 mm

Drive and Brake
Max. Travel Speed	4.3 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston pumps
Main Pump max. Oil Flow	2x115 lpm
Swing Circuit	285 kgf/cm²
Travel Circuit	355 kgf/cm²

Refill Capacity
Fuel Tank Capacity	250 L
Engine Oil And Filter	17 L
Hydraulic System	126 L
Hydraulic Tank Capacity	72 L

Weight and Ground Pressure
Operating Weight	12172-12518 kg
Ground Pressure	1043 kgf/cm²

Dimensions
Overall Length	7275 mm
Overall Height	2690 mm
Bucket Capacity	0.52-0.70 m³
Track Gauge	1990 mm
Ground Clearance	440 mm

Working Ranges
Max. Dumping Height	5280-5500 mm
Max. Digging Depth	4720-4964 mm
Max. Vertical Wall Digging Depth	4040-4160 mm
Max. Digging Reach	7410-7699 mm
Max. Digging Reach at Ground Level	7250-7552 mm
Boom Length	4250 mm
Arm Length	1950-2250 mm
Bucket Digging Force	7300 kgf
Arm Crowding Force	5400 kgf
