Kobelco SK520XDLC
Kobelco SK520XDLC

Kobelco SK520XDLC

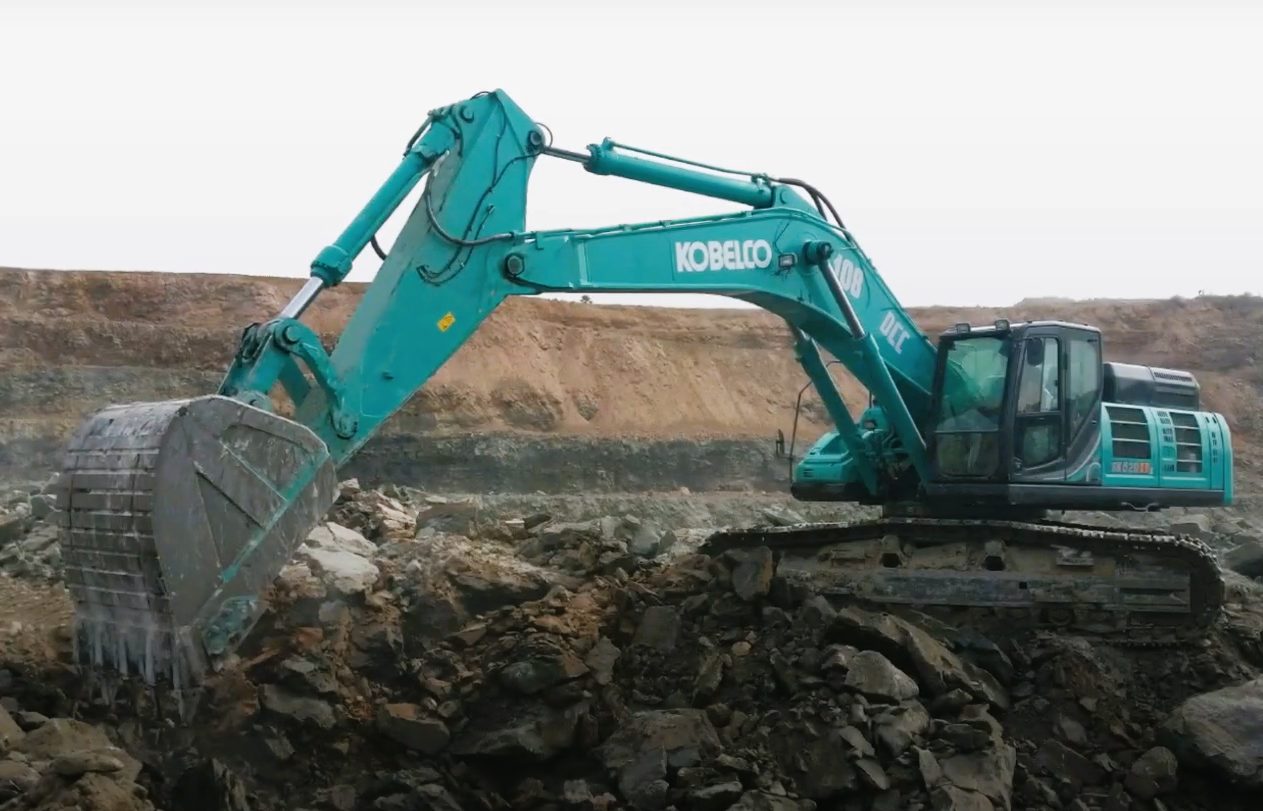

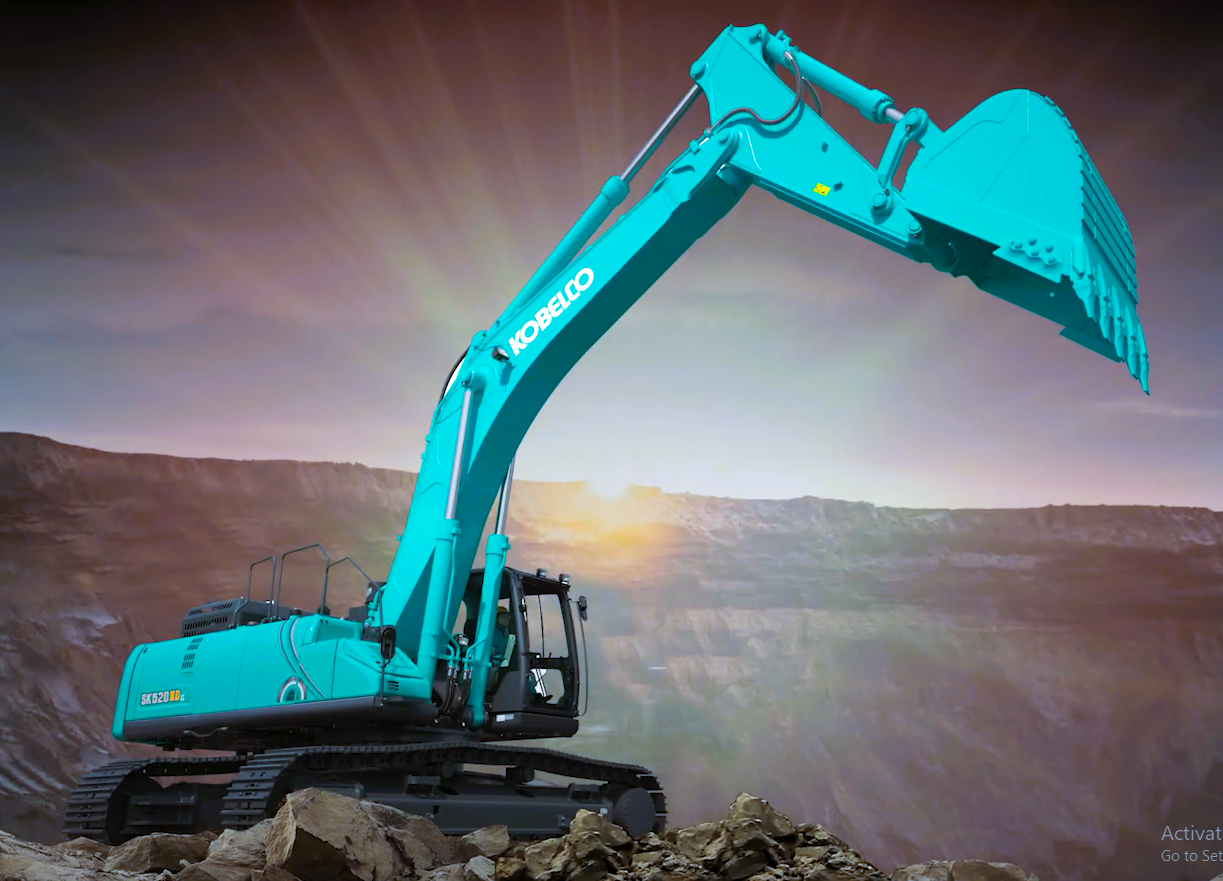

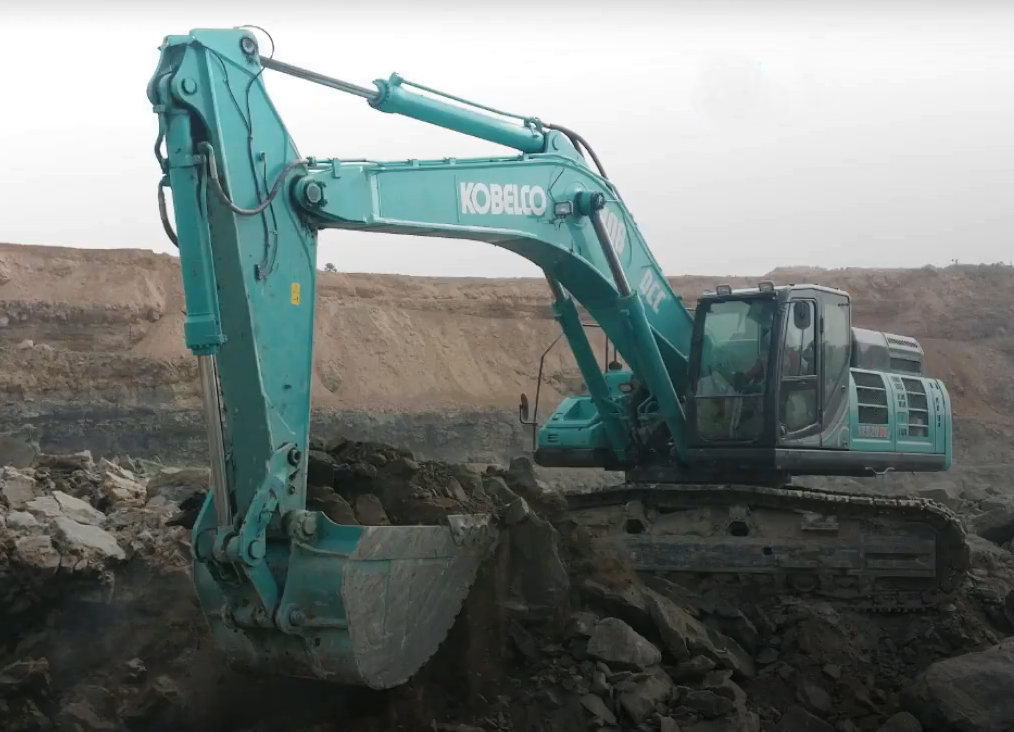

Kobelco SK520XDLC hydraulic excavator excels in various applications, making it a versatile asset for industries requiring precision and power. In agriculture, it's perfect for land preparation and irrigation projects, ensuring optimal crop yields. Its capabilities extend to waste management, where SK520XDLC hydraulic excavator efficiently processes and removes waste, enhancing environmental efforts. In forestry, the excavator is well-suited for clearing and landscaping tasks, supporting effective land management. Additionally, Kobelco SK520XDLC is ideal for marine construction, delivering the necessary power for excavation and construction in challenging aquatic environments, thus broadening its utility across diverse sectors.


Kobelco SK520XDLC hydraulic excavator is engineered for exceptional performance in demanding environments, featuring an impressive engine gross power of 257 kW, which enables it to handle intensive excavation tasks with ease. Its bucket capacity ranges from 2.1 to 3.4 m³, allowing for the efficient movement of large volumes of material, making SK520XDLC hydraulic excavator ideal for rapid excavation and loading. With an operating weight of 50,800 to 51,100 kg, this excavator offers superior stability and strength, essential for heavy-duty applications. Additionally, Kobelco SK520XDLC hydraulic excavator boasts a max digging depth of 6.82 to 7.36 m, facilitating deep excavations required for various construction and earthmoving projects.


Kobelco SK520XDLC hydraulic excavator stands out with its unique selling points, ensuring optimal performance and durability in challenging work environments. SK520XDLC hydraulic excavator features a top-class traveling force, designed to provide superior traction and mobility across various terrains, enhancing operational efficiency. The thick upper under covers protect critical components from damage and wear, significantly extending the machine's lifespan. Additionally, the thicker steel plate for shoes offers extra protection against harsh working conditions, ensuring reliable operation. To further enhance performance, Kobelco SK520XDLC utilizes a hydraulic drive for the engine cooling fan, efficiently managing engine temperature for improved longevity and functionality.

Kobelco SK520XDLC Key Specifications

Kobelco SK520XDLC Features

Engine

Model HINO P11C-WF
Type Water-cooled, 4cycle 6cylinder direct injection type diesel engine with intercooler turbo-charger
Engine Gross Power 344 hp(257 kw) @ 1850 rpm
Max. Torque 1470 Nm @ 1400 rpm
Displacement 10.52 L

Swing System

Max. Swing Speed 7.6 rpm
Min. Swing Radius 4.96-5.28 m

Drive and Brake

Max. Travel Speed 5.4 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement pumps + One gear pump
Main Pump max. Oil Flow 2 × 370 lpm
Swing Circuit 26 MPa
Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 638 L
Engine Oil and Filter 42.5 L
Hydraulic System 631 L
Hydraulic Tank Capacity 371 L

Weight and Ground Pressure

Operating Weight 51100 kg
Ground Pressure 87 kPa

Dimensions

Overall Length 11980-12210 mm
Overall Height 3800-4330 mm
Bucket Capacity 2.1-3.4 m³
Track Gauge 2750 mm
Ground Clearance 510 mm

Working Ranges

Max. Dumping Height 7.18-7.72 m
Max. Digging Depth 6.82-7.36 m
Max. Vertical Wall Digging Depth 6.11-6.67 m
Max. Digging Reach 11.25-11.77 m
Max. Digging Reach at Ground 11.01-11.54 m
Boom Length 6.5-7.0 m
Arm Length 2.6-3.0 m
Bucket Digging Force 282 kN
Arm Crowding Force 239 kN
