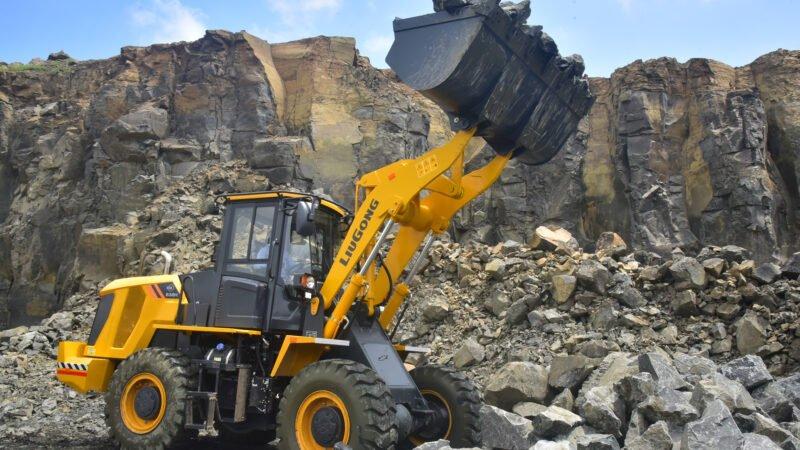

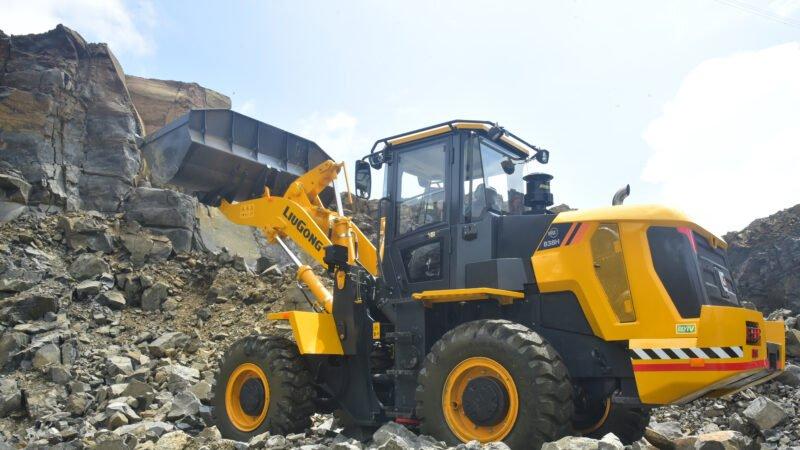

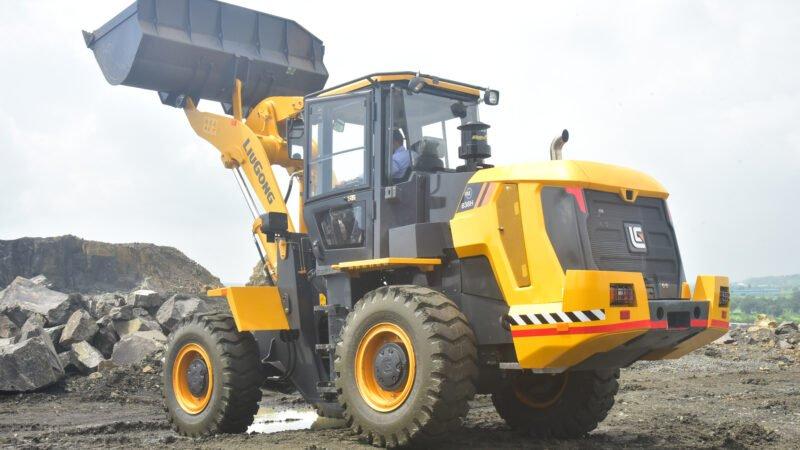

Liugong 838H Max

Liugong's Wheel Loader 838H MAX is a powerful and efficient equipment intended to easily handle a wide range of material handling operations. The 838H MAX is powered by a 118 kW (160 HP) engine that runs at 2,200 rpm. With an operational weight of 12,210 kg, the 838H MAX offers exceptional stability and durability. The 838H MAX has a 165 L fuel tank, which provides for prolonged running duration. The 838H MAX bucket has a capacity of 2.4 m³, allowing for efficient material handling and loading. The 838H MAX produces a maximum torque of 650 Nm at 1,400 - 1,600 rpm, assuring strong performance and enhanced ability to handle difficult tasks. 838H MAX is your dependable companion for delivering outstanding outcomes via power and accuracy.

Liugong 838H Max Features

Engine
Model	Ashok Leyland H6C416022	Engine Gross Power	160 hp(118 kW) @ 2200 RPM
Max. Torque	650 Nm @ 1400-1600 RPM	Displacement	5.76 L

Electrical System
Battery	12 V

Transmission
Transmission Type	Powershift	Max. Forward Speed	38 km/h
Max. Reverse Speed	17 km/h	Torque Converter	Twin Turbine, Four Members

Axles
Front Axle Type	Dry Type	Rear Axle Type	Dry Type
Oscillation Angle	11°

Drive and Brake
Service Brake	Air over Hydraulic with iNdependent	Parking Brake	Drum Brake Mechanical Actuation

Steering System
Steering Type	Articulation	Articulation Angle	38°
Turning Radius	5750 mm

Hydraulic System
Main Pump	Gear Pump	Main Pump Flow	197 LPM

Hydraulic Cycle Times
Total Hydraulic Cycle Time	9 Sec.

Refill Capacity
Fuel Tank Capacity	165 L	Transmission Oil Capacity	34 L
Axle Oil Capacity	22 L	Engine Oil Capacity	18 L

Operating Specifications
Operating Weight	12210 kg

Dimensions
Overall Length	7400 mm	Max. Digging Depth	40 mm
Loader Bucket Breakout Force	12746 kgf	Bucket Capacity	2.4 m³
Static Tipping Load	9280 kg	Wheelbase	2870 mm
Ground Clearance	318 mm

Engine
Model	Ashok Leyland H6C416022
Engine Gross Power	160 hp(118 kW) @ 2200 RPM
Max. Torque	650 Nm @ 1400-1600 RPM
Displacement	5.76 L

Electrical System
Battery	12 V

Transmission
Transmission Type	Powershift
Max. Forward Speed	38 km/h
Max. Reverse Speed	17 km/h
Torque Converter	Twin Turbine, Four Members

Axles
Front Axle Type	Dry Type
Rear Axle Type	Dry Type
Oscillation Angle	11°

Drive and Brake
Service Brake	Air over Hydraulic with iNdependent
Parking Brake	Drum Brake Mechanical Actuation

Steering System
Steering Type	Articulation
Articulation Angle	38°
Turning Radius	5750 mm

Hydraulic System
Main Pump	Gear Pump
Main Pump Flow	197 LPM

Hydraulic Cycle Times
Total Hydraulic Cycle Time	9 Sec.

Refill Capacity
Fuel Tank Capacity	165 L
Transmission Oil Capacity	34 L
Axle Oil Capacity	22 L
Engine Oil Capacity	18 L

Operating Specifications
Operating Weight	12210 kg

Dimensions
Overall Length	7400 mm
Max. Digging Depth	40 mm
Loader Bucket Breakout Force	12746 kgf
Bucket Capacity	2.4 m³
Static Tipping Load	9280 kg
Wheelbase	2870 mm
Ground Clearance	318 mm
