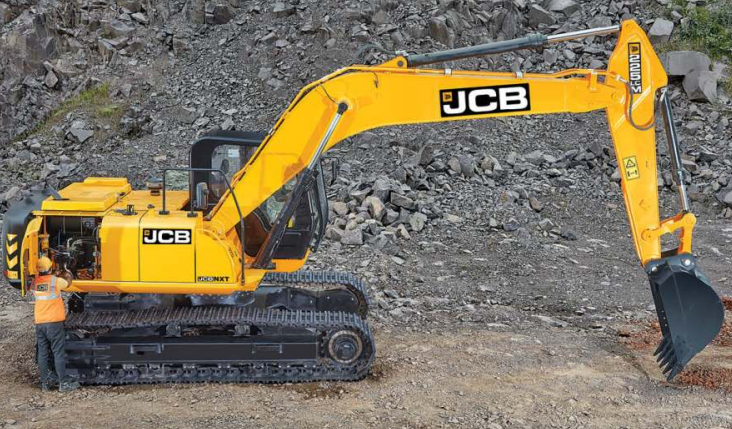

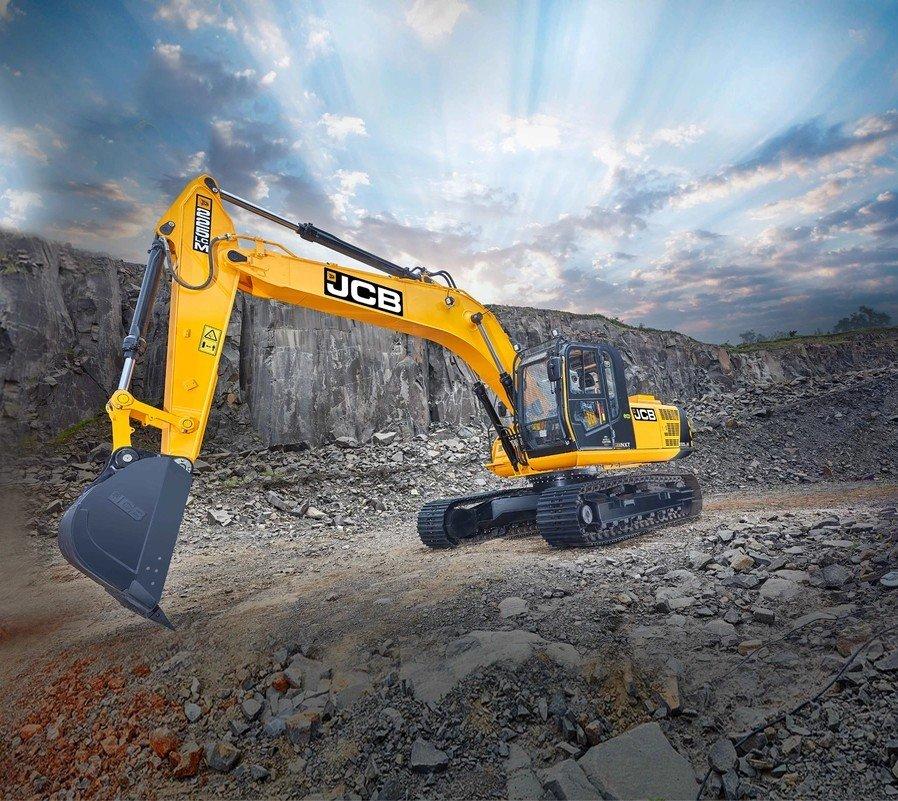

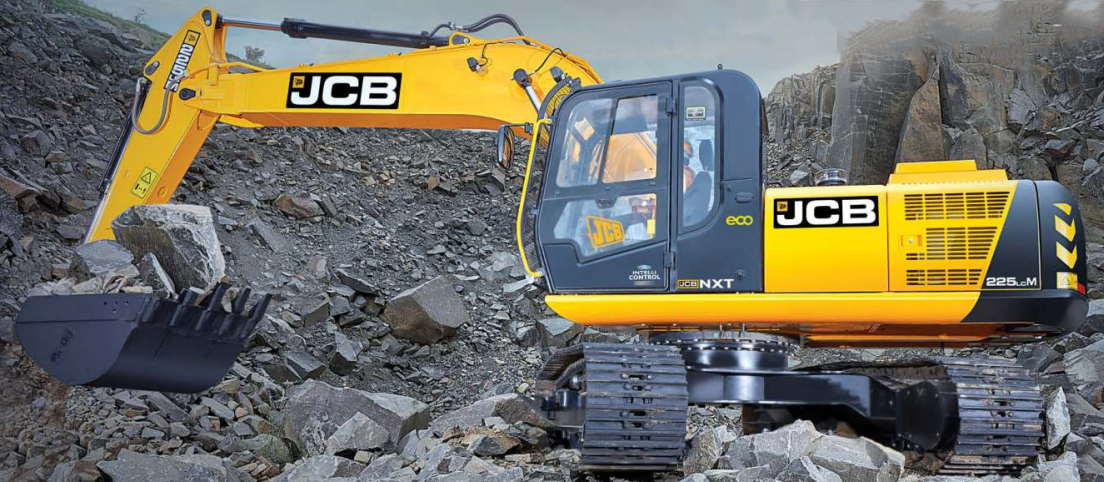

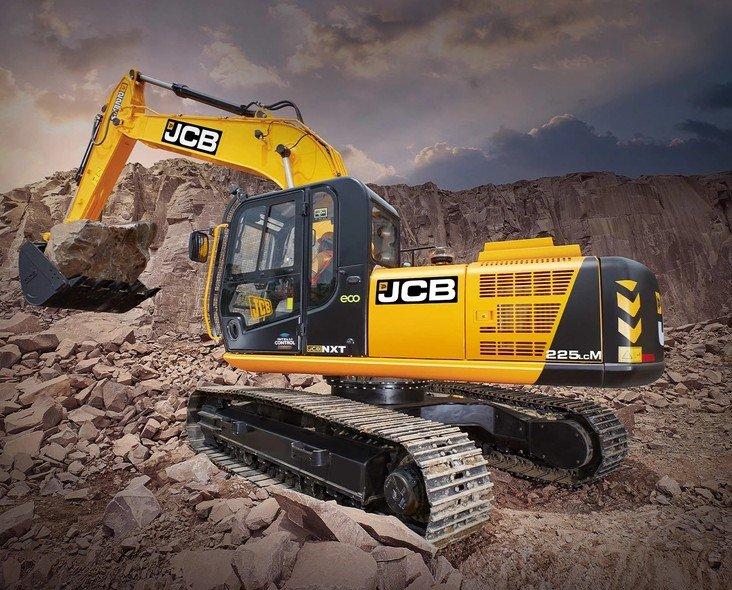

JCB NXT 225 LCM

JCB NXT 225 LCM Hydraulic Excavator is engineered for versatility and effectiveness across a diverse range of applications. In demolition, it efficiently manages heavy materials and debris, making NXT 225 LCM Hydraulic Excavator a reliable partner for dismantling projects. For landscaping, the excavator provides precise grading and shaping, ensuring that all projects meet both aesthetic and functional requirements. It excels in road construction by facilitating site preparation, excavation, and material handling, which contributes to the timely completion of these projects. Additionally, the JCB NXT 225 LCM supports utilities and pipeline installation with its powerful digging capabilities, ensuring smooth and efficient operations in infrastructure development. JCB NXT 225 LCM boasts impressive specifications, making it a robust choice for various applications. It features an engine gross power of 110 kW, ensuring strong performance across demanding tasks. With an operating weight of 22,200 kg, JCB NXT 225 LCM Hydraulic Excavator delivers stability and durability on site. Its maximum digging depth ranges from 6.14 to 6.73 meters, allowing for effective excavation in various conditions. Additionally, the bucket capacity varies between 0.9 to 1.2 cubic meters, providing versatility for different material handling needs. JCB NXT 225 LCM Hydraulic Excavator is equipped with several unique selling points that enhance its performance and versatility. Its heavy-duty dig end bucket is specifically designed for excellent block handling capabilities, ensuring efficient material handling even in tough conditions. The high-strength boom and arm feature a robust structure with a cast pivot, providing exceptional strength and reliability to withstand heavy loads during rigorous operations. Additionally, the hydraulic regeneration system recycles oil across the cylinders, which not only reduces operational costs but also increases cycle times, ensuring efficient and effective operation. Furthermore, advanced telematics offer comprehensive insights into operations, enhancing security and maximizing fleet utilization by providing a complete view of machine performance and location.

JCB NXT 225 LCM Features

Engine
Model	Cummins 6BTAA 5.9	Engine Gross Power	148 HP(110 KW) @ 2000 rpm
Displacement	5.9 L

Undercarriage
No. of Shoes	49	No. of Upper Rollers	2
No. of Bottom Rollers	8	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	13.0 rpm	Min. Swing Radius	3.80-5.57 m

Drive and Brake
Max. Travel Speed	5.5 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston	Main Pump max. Oil Flow	2x220 lpm
Swing Circuit	289 bar	Travel Circuit	343 bar

Refill Capacity
Fuel Tank Capacity	343 L	Engine Oil and Filter	19 L
Hydraulic System	260 L	Hydraulic Tank Capacity	120 L

Weight and Ground Pressure
Operating Weight	22200 kg	Ground Pressure	0.49 kg/cm²

Dimensions
Overall Length	9.65 m	Overall Height	3.18 m
Bucket Capacity	0.9-1.2 m³	Track Gauge	2.40 m
Ground Clearance	460 mm

Working Ranges
Max. Dumping Height	6.36-6.49 m	Max. Digging Depth	6.14-6.73 m
Max. Vertical Wall Digging Depth	3.85-6.06 m	Max. Digging Reach	9.40-9.89 m
Max. Digging Reach at Ground Level	9.21-9.72 m	Boom Length	5.7 m
Arm Length	2.40-3.00 m	Bucket Digging Force	13205 kgf
Arm Crowding Force	9842-11700 kgf

Engine
Model	Cummins 6BTAA 5.9
Engine Gross Power	148 HP(110 KW) @ 2000 rpm
Displacement	5.9 L

Undercarriage
No. of Shoes	49
No. of Upper Rollers	2
No. of Bottom Rollers	8
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	13.0 rpm
Min. Swing Radius	3.80-5.57 m

Drive and Brake
Max. Travel Speed	5.5 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacement axial piston
Main Pump max. Oil Flow	2x220 lpm
Swing Circuit	289 bar
Travel Circuit	343 bar

Refill Capacity
Fuel Tank Capacity	343 L
Engine Oil and Filter	19 L
Hydraulic System	260 L
Hydraulic Tank Capacity	120 L

Weight and Ground Pressure
Operating Weight	22200 kg
Ground Pressure	0.49 kg/cm²

Dimensions
Overall Length	9.65 m
Overall Height	3.18 m
Bucket Capacity	0.9-1.2 m³
Track Gauge	2.40 m
Ground Clearance	460 mm

Working Ranges
Max. Dumping Height	6.36-6.49 m
Max. Digging Depth	6.14-6.73 m
Max. Vertical Wall Digging Depth	3.85-6.06 m
Max. Digging Reach	9.40-9.89 m
Max. Digging Reach at Ground Level	9.21-9.72 m
Boom Length	5.7 m
Arm Length	2.40-3.00 m
Bucket Digging Force	13205 kgf
Arm Crowding Force	9842-11700 kgf
