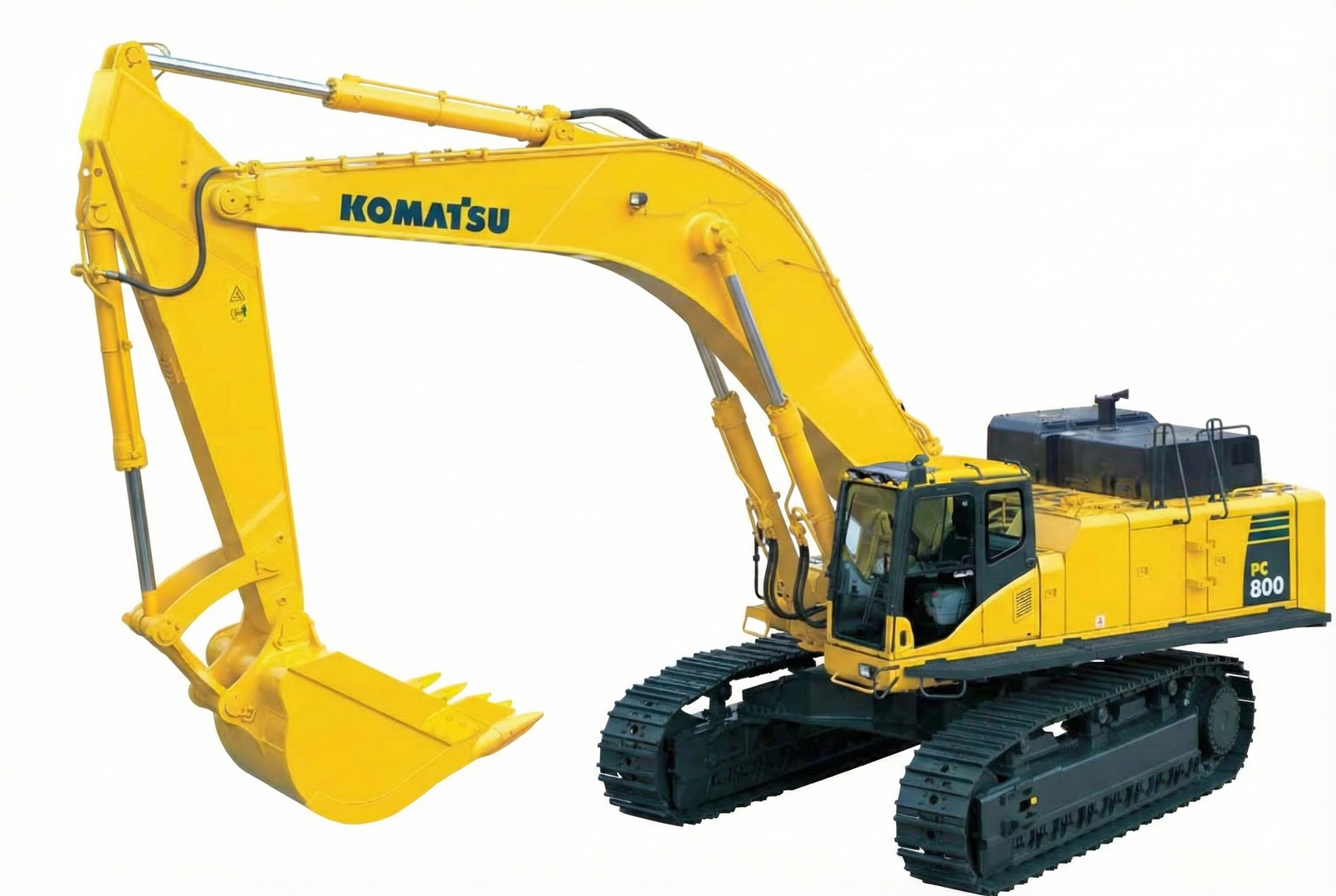

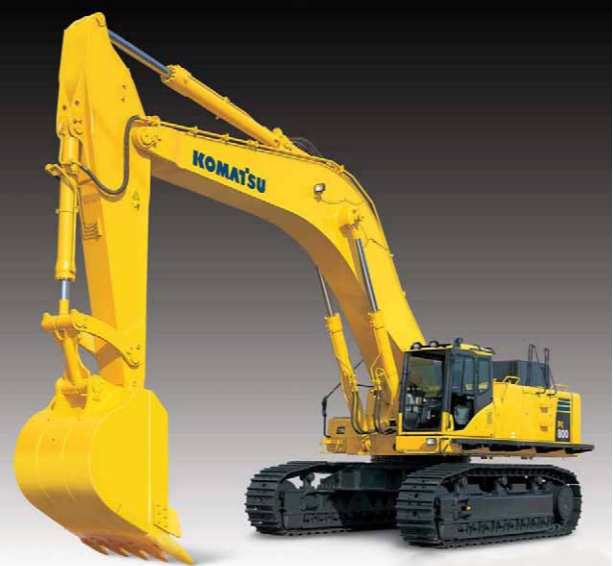

Komatsu PC800-8R1 Hydraulic Excavator is designed to excel across various sectors, demonstrating its versatility in applications like agriculture, where it aids in land preparation and maintenance tasks. In waste management, this robust excavator efficiently moves and manages heavy materials, ensuring smooth operations. Its invaluable role in forestry includes facilitating land clearing and the transportation of logs, contributing to effective resource management. Additionally, the PC800-8R1 Hydraulic Excavator's deep digging capabilities make it highly suited for marine construction, enabling the construction of docks, piers, and other waterfront structures with precision and ease. This combination of power and adaptability makes the Komatsu PC800-8R1 a critical asset for contractors in multiple industries.


Komatsu PC800-8R1 is engineered to deliver exceptional performance in heavy-duty construction and excavation tasks. Featuring an impressive engine gross power of 370 kW and a substantial operating weight between 74,200 to 76,810 kg, PC800-8R1 Hydraulic Excavator is designed to handle the most challenging jobs effortlessly. Its versatile bucket capacity ranges from 2.5 to 4.5 m³, allowing for efficient material handling across various applications. Moreover, the maximum digging depth of 7,130 to 10,595 mm empowers operators to tackle deep excavation projects with precision and confidence. This combination of power, capacity, and depth makes the Komatsu PC800-8R1 Hydraulic Excavator an invaluable asset on any construction site.


Komatsu PC800-8R1 Hydraulic Excavator boasts several key features that enhance its performance and efficiency in heavy-duty applications. Its high-performance diesel engine ensures exceptional power, making PC800-8R1 Hydraulic Excavator suitable for demanding tasks. Advanced diagnostics, including abnormality checking and trouble data memory functions, help maintain peak operational efficiency and reliability. With an economy mode designed to reduce fuel consumption without sacrificing performance, Komatsu PC800-8R1 stands out as an environmentally friendly choice for contractors. Additionally, the versatile bucket options provide a customizable capacity range, allowing operators to tailor the excavator to meet specific project requirements effectively.

Komatsu PC800-8R1 Key Specifications

Komatsu PC800-8R1 Features

Engine

Model Komatsu SAA6D140E-5
Type 4-cycle, water-cooled, direct injection, Turbocharged, aftercooled
Engine Gross Power 496 hp(370 kw) @ 1800 rpm
Displacement 15.24 L

Undercarriage

No. of Shoe 47
No. of Upper Rollers 3
No. of Bottom Rollers 8
Track Shoe Width 610-1010 mm

Swing System

Max. Swing Speed 6.8 rpm
Min. Swing Radius 5645-6145 mm

Drive and Brake

Max. Travel Speed 4.2 km/h
Gradeability 70%

Hydraulic System

Main Pump Type Variable-capacity piston pumps
Main Pump max. Oil Flow 2 x 494 lpm
Swing Circuit 28.4 MPa
Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 980 L
Engine Oil and Filter 55 L
Hydraulic Tank Capacity 440 L

Weight and Ground Pressure

Operating Weight 74200-76810 kg
Ground Pressure 75.5-121 kPa

Dimensions

Overall Length 14115-14435 mm
Overall Height 4690-6260 mm
Bucket Capacity 4.5-5.1 m³
Track Gauge 610 mm
Ground Clearance 840 mm

Working Ranges

Max. Dumping Height 8145-8890 mm
Max. Digging Depth 8600-10595 mm
Max. Vertical Wall Digging Depth 5575-7920 mm
Max. Digging Reach 13740-15635 mm
Max. Digging Reach at Ground 13460-15385 mm
Boom Length 8200 mm
Arm Length 3600-5600 mm
Bucket Digging Force 296-333 kN
Arm Crowding Force 181-250 kN
