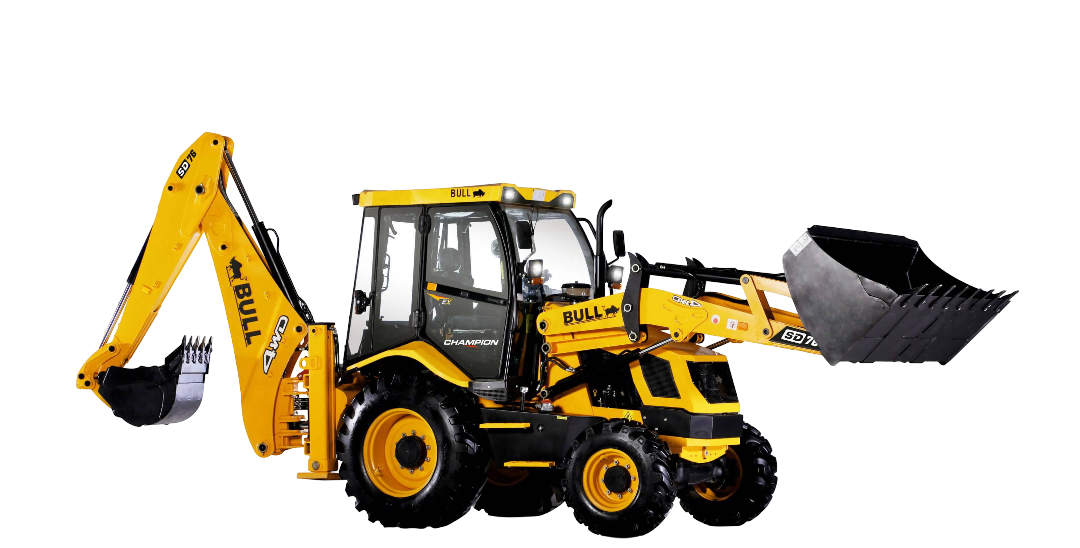

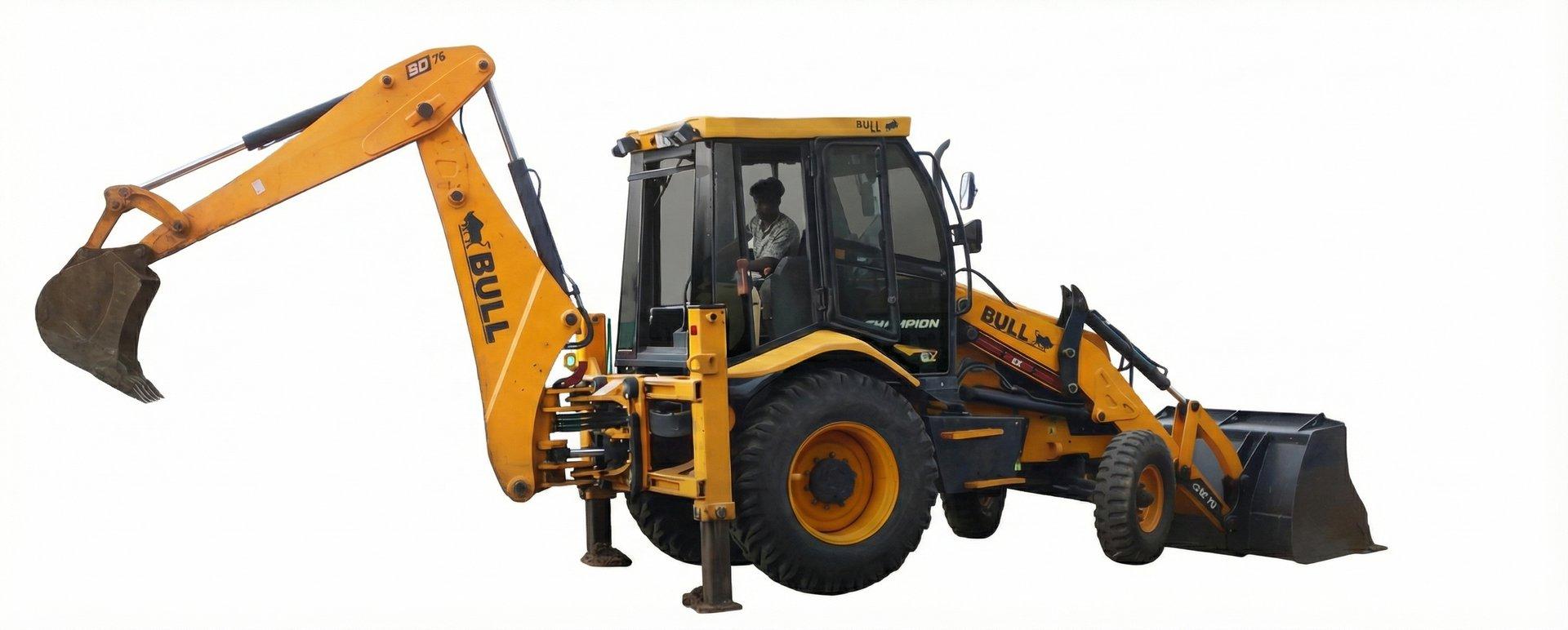

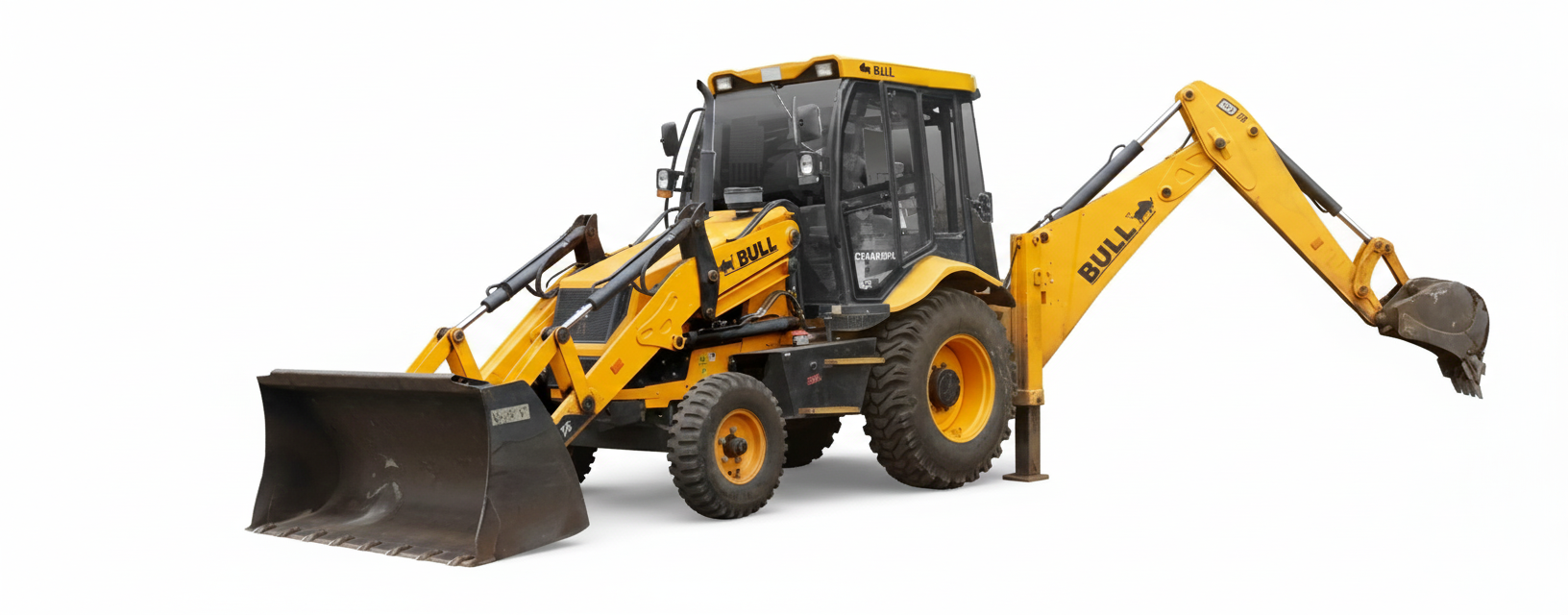

Bull SD76 BS4 Champion Backhoe Loader

The Bull SD76 Champion backhoe loader is designed to perform across a wide range of applications such as agriculture work, quarrying sites, mining sites, and more. It is perfectly suited for multi-work sites.

The Bull SD76 Champion is fitted with a New Generation CRDI engine that provides superior performance and fuel efficiency. Its new square-cut bucket linkage provides extra capacity, and the EFFY power system provides comfortable driving.

Equipped with a 300 Nm high-torque engine, the Bull SD76 Champion offers a maximum dig depth of 4.77 meters and features a 0.26 m³ bucket capacity. This powerful combination delivers higher productivity and efficiency in heavy-duty operations.

*Ex-Showroom Price

₹ 30 - 32 Lakhs

Bull SD76 BS4 Champion Key Specifications

Bull SD76 BS4 Champion Features

Dump Height 2.96 m

Loadover Height 3.39 m

Reach at ground 1.60 m

Max. Reach at full Height 1.42

Arm Loader Breakout Force 5315 kgf

Loader Bucket Capacity 1.26 m³

Max. Dig Depth 4.77 m

Bucket Pin Height 3.61 m

Reach at full Height Bucket Dumped 0.89-1.1 m

Below Ground Level Dig Depth 0.08-0.1 m

Rollback at Ground 49° - 50°

Bucket Loader Breakout Force 8183 kgf

Max. Working Height 5.98 m

Max. Loadover Height 4.19 m

Bucket Rotation Power 201°

Dipper Tearout Force 3109 kgf

Engine

Make Kirloskar

Model 4R1190NA

Engine Gross Power 74.5HP (54.8kW) @ 2200 rpm

Max. Torque 300 Nm @ 1300 rpm

Electrical System

Battery 12V Battery Systems (150Ah)

Transmission

Max. Forward Speed 39 km/h

Max. Reverse Speed 9.3 km/h

Transmission Type CARRARO Synchro-shuttle Transmission with integral torque convertor

Steering System

Steering Type Power Steering

Tyres

Front Tyre Size 9X16 - 16 PR (2WD), 12.5/80X18 - 12 PR (4WD)

Rear Tyre Size 16.9X28 - 12 PR, 14X25 - 20 PR

Hydraulic System

Main Pump Flow 113 lpm @ 2200 rpm, 122 lpm @ high rpm

Hydraulic System Relief Pressure 230 bar

Refill Capacity

Fuel Tank Capacity 115 L

Dimensions

Dump Height 2.96 m

Loadover Height 3.39 m

Reach at ground 1.60 m

Max. Reach at full Height 1.42

Arm Loader Breakout Force 5315 kgf

Loader Bucket Capacity 1.26 m³

Max. Dig Depth 4.77 m

Bucket Pin Height 3.61 m

Reach at full Height Bucket Dumped 0.89-1.1 m

Below Ground Level Dig Depth 0.08-0.1 m

Rollback at Ground 49° - 50°

Bucket Loader Breakout Force 8183 kgf

Max. Working Height 5.98 m

Max. Loadover Height 4.19 m

Bucket Rotation Power 201°

Dipper Tearout Force 3109 kgf

Top Applications of Bull SD76 Champion

1. Utility Installation

The Bull SD76 Champion handles all underground utility installations efficiently, from cables to pipelines, with efficient results.

2. Landscaping

The Bull SD76 Champion delivers clean, efficient earthmoving for surface levelling and groundwork with high power and stability in any terrain.

3. Forest work

Designed for forest operations, the Bull SD76 Champion handles clearing, logging, and maintenance with ease and provides high performance.

4. Infrastructure development

The Bull SD76 Champion is the perfect partner for infrastructure development projects from site preparation to material handling, helping reduce downtime and increase productivity.

5. Construction

The Bull SD76 Champion offers superior hydraulic power while delivering high productivity for construction material transport and accurate site preparation tasks.
