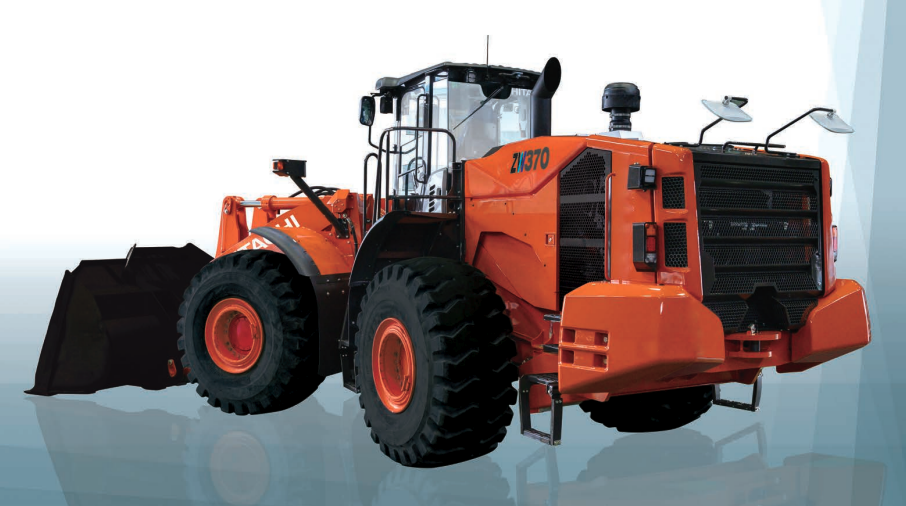

Tata Hitachi ZW 370-5A

The Tata Hitachi ZW 370-5A Wheel Loader is engineered for unmatched power and efficiency, making it ideal for heavy-duty applications in construction, road construction, waste management, landscaping, and agriculture. Tata Hitachi ZW 370-5A combines power, precision, and durability, making it the top choice for businesses looking to maximize productivity while maintaining fuel efficiency. Tata Hitachi ZW 370-5A, powered by a robust 402 HP engine, offers an operating weight between 31,750 to 32,570 kg, ensuring optimal performance in challenging environments. ZW 370-5A Wheel Loader with versatile bucket capacity of 4.8 to 8.5 m³ and a maximum operating height ranging from 6,450 to 6,980 mm, this machine provides exceptional material handling and operational flexibility. Tata Hitachi ZW 370-5A Wheel Loader is equipped with advanced technologies, including the Lift Arm Auto Leveler for precise control, the Ride Control System for smoother operations on uneven terrain, and an Automatic Reversible Cooling Fan system to enhance cooling efficiency and reduce dust deposites.

Tata Hitachi ZW 370-5A Features

Engine
Model	ISUZU 6WG1	Engine Gross Power	402 HP(300 KW) @ 1800 rpm
Max. Torque	1932 Nm @ 1400 rpm	Displacement	15.68 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	36.4 km/h	Max. Reverse Speed	20.7 km/h
Transmission Type	Torque converter, planetary gear type powershift with computer-controlled automatic shift	Torque Converter	Three element, single stage, single phase with lock-up clutch

Steering System
Steering Type	Articulated frame steering	Turning Radius Outside of Wheels	6605 mm

Drive and Brake
Service Brake	Middle mounted fully hydraulic 4 wheel disc brake	Parking Brake	Spring applied, hydraulically released, located in front axle driveline

Tyres
Tyre Size	29.5-25-22PR

Hydraulic System
Main Pump	Variable displacement axial piston pump	Main Pump Flow Rate	340 lpm @ 1800 rpm
Raise Time	5.8 Sec.	Dump Time	1.2 Sec.
Lower Time	4.5 Sec.	Total Hydraulic Cycle Time	11.5 Sec.

Axles
Front Axle Type	Fixed to the front frame	Rear Axle Type	Trunnion Support
Oscillation Angle	24°

Refill Capacity
Fuel Tank Capacity	438 L	Engine Oil Capacity	52 L
Transmission Oil Capacity	71 L	Hydraulic Oil Capacity	178 L

Operating Weight
Operating Weight	31750 - 32570 kg

Dimensions
Static Tipping Load	17220 - 20760 kg	Overall Length	9745 - 10160 mm
Bucket Capacity	4.8 - 8.5 m³	Loader Bucket Break-out Force	20810 - 24790 kgf
Max. Digging Depth	130 - 165 mm	Wheelbase	3600 mm
Ground Clearance	440 mm

Engine
Model	ISUZU 6WG1
Engine Gross Power	402 HP(300 KW) @ 1800 rpm
Max. Torque	1932 Nm @ 1400 rpm
Displacement	15.68 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	36.4 km/h
Max. Reverse Speed	20.7 km/h
Transmission Type	Torque converter, planetary gear type powershift with computer-controlled automatic shift
Torque Converter	Three element, single stage, single phase with lock-up clutch

Steering System
Steering Type	Articulated frame steering
Turning Radius Outside of Wheels	6605 mm

Drive and Brake
Service Brake	Middle mounted fully hydraulic 4 wheel disc brake
Parking Brake	Spring applied, hydraulically released, located in front axle driveline

Tyres
Tyre Size	29.5-25-22PR

Hydraulic System
Main Pump	Variable displacement axial piston pump
Main Pump Flow Rate	340 lpm @ 1800 rpm
Raise Time	5.8 Sec.
Dump Time	1.2 Sec.
Lower Time	4.5 Sec.
Total Hydraulic Cycle Time	11.5 Sec.

Axles
Front Axle Type	Fixed to the front frame
Rear Axle Type	Trunnion Support
Oscillation Angle	24°

Refill Capacity
Fuel Tank Capacity	438 L
Engine Oil Capacity	52 L
Transmission Oil Capacity	71 L
Hydraulic Oil Capacity	178 L

Operating Weight
Operating Weight	31750 - 32570 kg

Dimensions
Static Tipping Load	17220 - 20760 kg
Overall Length	9745 - 10160 mm
Bucket Capacity	4.8 - 8.5 m³
Loader Bucket Break-out Force	20810 - 24790 kgf
Max. Digging Depth	130 - 165 mm
Wheelbase	3600 mm
Ground Clearance	440 mm
