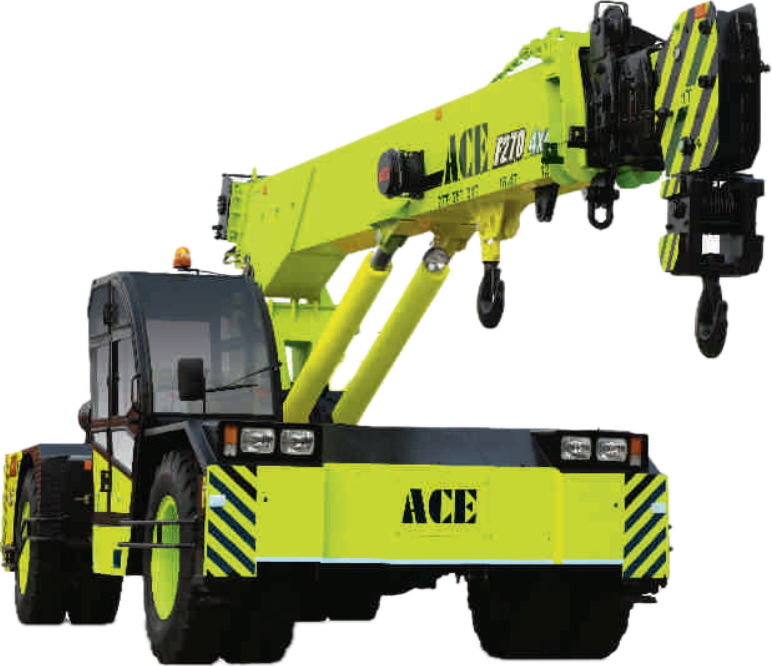

ACE F 270

ACE F 270 Nextgen Hydraulic Crane is highly versatile, making F 270 Nextgen Hydraulic Crane ideal for various heavy-lifting applications. At construction sites, it efficiently lifts large materials and structures, expediting project timelines. In infrastructure projects, the ACE F 270 delivers the heavy-duty lifting necessary for building roads, bridges, and other large-scale developments. Industrial maintenance teams benefit from its precise handling capabilities, while the oil and gas industry relies on the crane for lifting essential equipment and materials in complex operational environments. ACE F 270 offers an impressive lifting capacity of 27 tons, powered by a robust Ashok Leyland CEV BSIV 4 Cylinder Engine that delivers 130 HP of gross power. F 270 Nextgen Hydraulic Crane, With a maximum height of 19.3 meters and an operating weight of 22,000 kg, this crane ensures exceptional lifting capabilities, even for the most demanding projects. Built for durability and efficiency, the ACE F 270 is a reliable choice for industries that require heavy-duty lifting, providing precision and performance in construction, industrial maintenance, infrastructure projects, and oil and gas operations. ACE F 270 Nextgen Hydraulic Crane stands out with several advanced features that improve operational efficiency and safety. The full power Orbitrol steering with twin hydraulic double-acting cylinders ensures precise and smooth control during operations, allowing for superior maneuverability. The over hoist hydraulic cutoff enhances safety by preventing unintentional over-hoisting, protecting both the F 270 Nextgen Hydraulic Crane and its load. Additionally, the after-treatment system for emission control reduces the crane’s environmental impact, ensuring eco-friendly performance without compromising its powerful capabilities. These features make the ACE F 270 an ideal choice for high-demand, heavy-lifting applications.

ACE F 270 Features

Engine
Model	Ashok Leyland H4C413022	Type	4 Cylinder, water cooled, diesel engine with electronic control unit
Engine Gross Power	130 HP(95 KW) @ 2200 rpm	No. of Cylinders	4

Electrical System
Battery	12 V, 100 Ah Negative earth	Voltage	12 V

Transmission
Transmission Type	Heavy duty synchromesh	Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	39 km/h

Steering System
Steering Type	Full power orbitrol steering	Articulation Angle	40°
Turning Radius	8.25 m

Drive and Brake
Drive Type	4 Wheel drive	Service Brake	Fully pneumatic brakes
Parking Brake	Pneumatically operated, fail safe type	Gradeability	40%

Tyres
Front Tyre Size	12.00x24-18 PR (4 Nos.)	Rear Tyre Size	12.00x24-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis	Rear Axle Type	Mounted with 2 Nos. heavy duty leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm	Hoist Single Line Speed	35 m/min.

Dimensions
Max. Lifting Capacity	27 T

Engine
Model	Ashok Leyland H4C413022
Type	4 Cylinder, water cooled, diesel engine with electronic control unit
Engine Gross Power	130 HP(95 KW) @ 2200 rpm
No. of Cylinders	4

Electrical System
Battery	12 V, 100 Ah Negative earth
Voltage	12 V

Transmission
Transmission Type	Heavy duty synchromesh
Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	39 km/h

Steering System
Steering Type	Full power orbitrol steering
Articulation Angle	40°
Turning Radius	8.25 m

Drive and Brake
Drive Type	4 Wheel drive
Service Brake	Fully pneumatic brakes
Parking Brake	Pneumatically operated, fail safe type
Gradeability	40%

Tyres
Front Tyre Size	12.00x24-18 PR (4 Nos.)
Rear Tyre Size	12.00x24-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis
Rear Axle Type	Mounted with 2 Nos. heavy duty leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm
Hoist Single Line Speed	35 m/min.

Dimensions
Max. Lifting Capacity	27 T
