Sany SY260C-10HD GENe
Sany SY260C-10HD GENe

Sany SY260C-10HD GENe

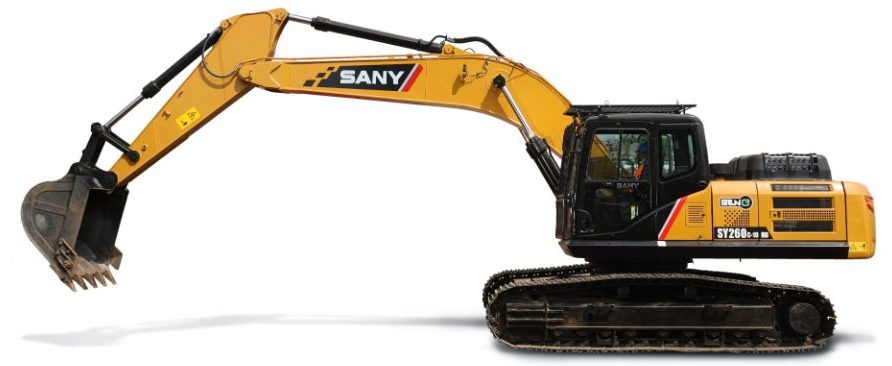

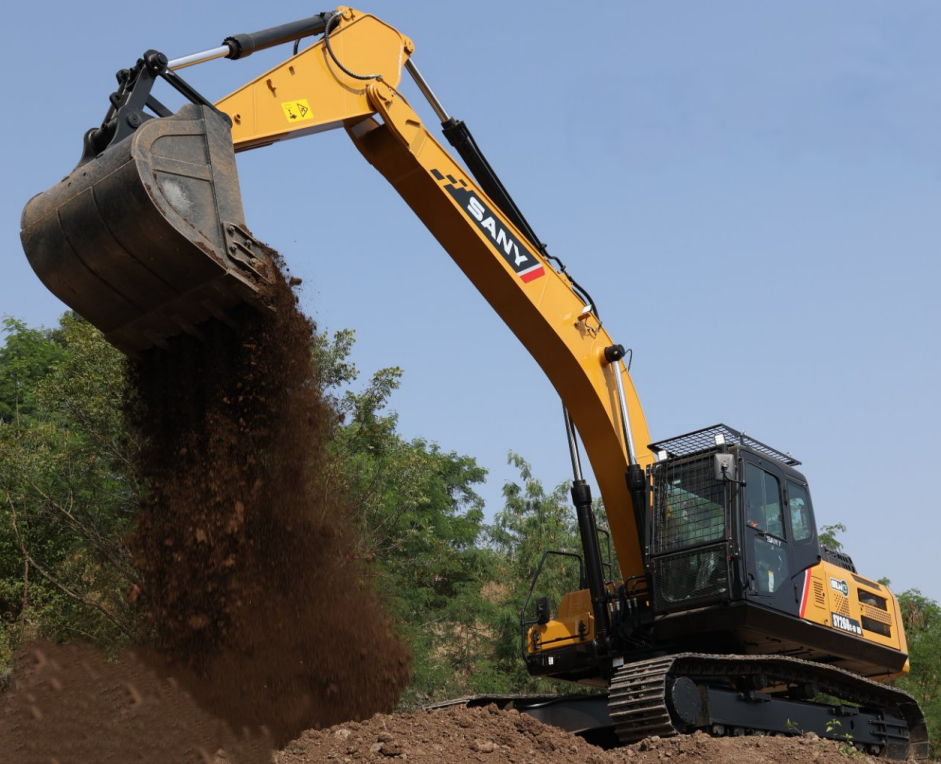

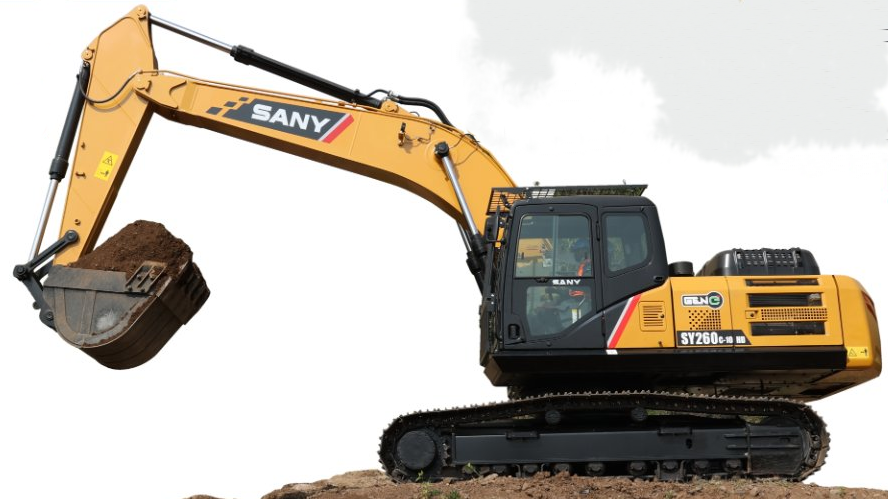

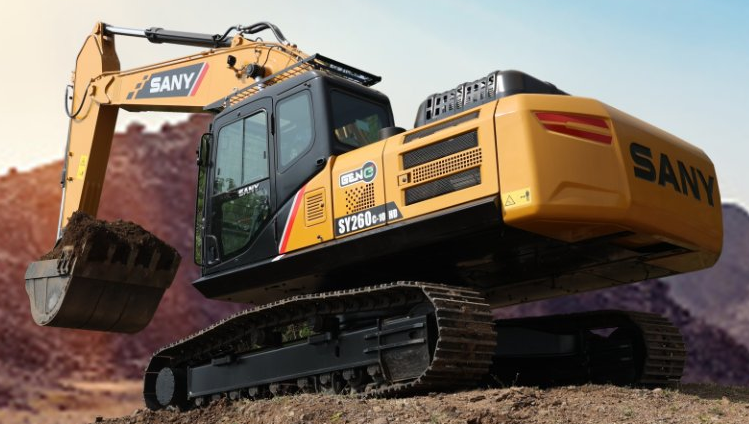

SANY SY260C-10HD GENe Hydraulic Excavator is highly versatile, excelling in dredging, agriculture, waste management, and forestry applications. Its high digging depth and efficiency make it perfect for dredging tasks, allowing for the effective excavation and removal of materials from bodies of water or riverbeds. In agriculture, its powerful digging force and fuel-efficient design enable it to handle tasks such as land preparation, soil management, and irrigation system installation. The SY260C-10HD GENe Hydraulic Excavator also performs efficiently in waste management, offering excellent material handling, sorting, and transportation capabilities in both municipal and industrial environments. Additionally, SANY SY260C-10HD GENe provides superior digging and lifting capabilities for forestry applications, including land clearing and tree stump removal.


SANY SY260C-10HD GENe is equipped with an engine gross power of 197 hp, providing exceptional performance for a variety of heavy-duty tasks. It offers a maximum digging depth of 6.40 meters, allowing for deep excavation work. With an operating weight of 25.5 tons, the machine delivers stability and strength for demanding applications. Its bucket capacity ranges from 1.3 to 1.6 cubic meters, making SY260C-10HD GENe Hydraulic Excavator highly versatile and capable of handling various materials efficiently. This combination of power, depth, and capacity ensures that the SANY SY260C-10HD GENe Hydraulic Excavator can tackle a wide range of projects with ease and precision.


SANY SY260C-10HD GENe Hydraulic Excavator is equipped with a highly efficient hydraulic power system that reduces power loss, leading to fuel savings and improved performance, which helps minimize operational costs while enhancing productivity. It features an advanced hydraulic auto power boost system, delivering a 10% momentary increase in power at the digging end to handle tough digging conditions, reducing operational time and increasing efficiency. SY260C-10HD GENe Hydraulic Excavator proven hydraulic system, with reliable aggregates, ensures high output and reduced wear, making SANY SY260C-10HD GENe ideal for demanding applications. Additionally, the self-diagnosis system integrated into the machine provides error codes and service reminders for easy maintenance, allowing operators to address potential issues before they cause significant problems, ensuring long-term reliability and peak performance.

Sany SY260C-10HD GENe Key Specifications

Sany SY260C-10HD GENe Features

Engine

Model Mitsubishi D06FRC
Type 6 cylinder, electronic injection, CRDI
Engine Gross Power 197 hp(147 kw) @ 2100 rpm
Max. Torque 750 Nm @ 1350 rpm
Displacement 6.37 L

Undercarriage

No. of Shoes 49
No. of Upper Rollers 2
No. of Bottom Rollers 9
Track Shoe Width 600 mm

Swing System

Max. Swing Speed 10.6 rpm
Min. Swing Radius 3800-3915 mm

Drive and Brake

Max. Travel Speed 5.4 km/h
Gradeability 35%(70°)

Hydraulic System

Main Pump Type 2 variable displacement axial piston pumps
Main Pump max. Oil Flow 2 x 260 lpm
Swing Circuit 25.5 MPa
Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 475 L
Engine Oil and Filter 29 L
Hydraulic Tank Capacity 277 L

Weight and Ground Pressure

Operating Weight 25500 kg
Ground Pressure 47.3 kPa

Dimensions

Overall Length 10290-10360 mm
Overall Height 3255 mm
Bucket Capacity 1.6 m³
Track Gauge 2590 mm
Ground Clearance 470 mm

Working Ranges

Max. Dumping Height 6405-6715 mm
Max. Digging Depth 6403-6705 mm
Max. Digging Reach 9757-10225 mm
Boom Length 5900 mm
Arm Length 2500 mm
Bucket Digging Force 188 kN
Arm Crowding Force 144 kN
