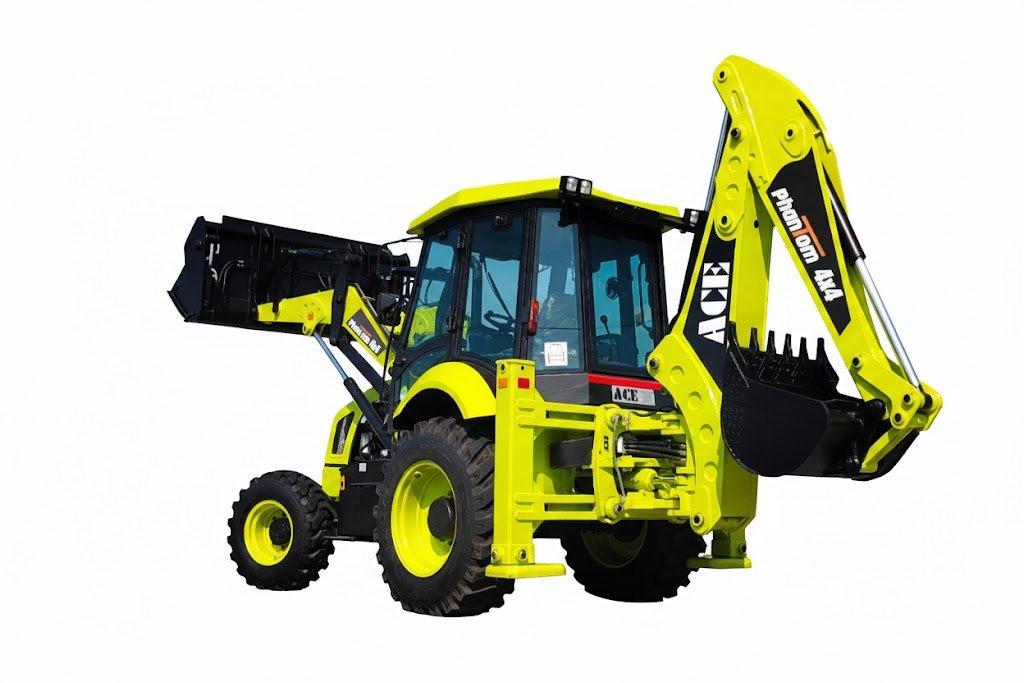

ACE Phantom 4WD Backhoe Loader

The ACE Phantom 4WD backhoe loader is a popular name for tackling multiple applications like construction, agriculture, waste management, and infrastructure development. Additionally, it is used in many operations such as digging, trenching, moving and transporting materials, and small-scale demolition.

The ACE Phantom 4WD's features are a Kirloskar BS-||| diesel engine and a hydraulic power steering system, offering high power output and stability in rough terrain.

Its high-performance engine generates 377 Nm of high torque, and its operating weight capacity is 8040 kg. It delivers smooth material handling operations with speed and efficiency.

*Ex-Showroom Price

Coming Soon

ACE Phantom 4WD Key Specifications

ACE Phantom 4WD Features

Dump Height 2.76 m

Load over Height 3.34 m

Reach at Ground 1.77 m

Max. Reach at Full Height 1.22 m

Arm Loader Break-out Force 4950 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.25 m

Bucket Pin Height 3.63 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.08 m

Rollback at Ground 44°

Max. Working Height 5.47 m

Max. Load over Height 3.79 m

Bucket Rotation Power 175°

Side Reach to Center Line of Machine 5.59 m

Dipper Tearout Force (Arm Crowding Force) 4000 kgf

Engine

Make Kirloskar

Model 4R1040TA (BSIII)

Engine Gross Power 96 HP @ 2200 rpm

Max. Torque 377 Nm @ 1400 rpm

Electrical System

Battery 12 V

Transmission

Max. Forward Speed 40 km/h

Transmission Type Synchro shuttle transmission

Steering System

Steering Type Hydrostatic steering

Drive and Brake

Service Brake Hydraulically actuated wet disc brakes

Parking Brake Mechanically actuated disc brakes

Tyres

Front Tyre Size 12.5/80-18-12 PR

Rear Tyre Size 16.90-28-12 PR

Hydraulic System

Main Pump Flow 118 lpm

Hydraulic System Relief Pressure 210 bar

Axles

Front Axle Type Drive & steer axle, centrally pivoted

Rear Axle Type Rigid axle with Carraro planetary drive

Refill Capacity

Fuel Tank Capacity 150 L

Engine Oil Capacity 11.5 L

Transmission Oil Capacity 17 L

Torque Converter 17 L

Rear Axle Oil Capacity 3 L

Dimensions

Dump Height 2.76 m

Load over Height 3.34 m

Reach at Ground 1.77 m

Max. Reach at Full Height 1.22 m

Arm Loader Break-out Force 4950 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.25 m

Bucket Pin Height 3.63 m

Reach at Full Height (Bucket Dumped) 0.89 m

Below Ground Level Dig Depth 0.08 m

Rollback at Ground 44°

Max. Working Height 5.47 m

Max. Load over Height 3.79 m

Bucket Rotation Power 175°

Side Reach to Center Line of Machine 5.59 m

Dipper Tearout Force (Arm Crowding Force) 4000 kgf

Top Applications of ACE Phantom 4WD

1. Construction

The ACE Phantom 4WD is designed specifically for construction tasks, including demolition, material handling, transferring materials, and more.

2. Agriculture

The ACE Phantom 4WD is also widely used in agriculture. It offers many features, including a 6-in-1 bucket option and multiple attachment capabilities.

3. Road Construction

This multipurpose machine can handle various tasks such as digging, moving materials, and more without needing any extra machinery.

4. Infrastructure Development

The ACE Phantom 4WD is the perfect partner for infrastructure development projects from site preparation to material handling, helping reduce downtime and boost productivity.

5. Waste Management

The ACE Phantom 4WD is widely used by municipal corporations in dump yards and other sites for loading trash into trucks.
