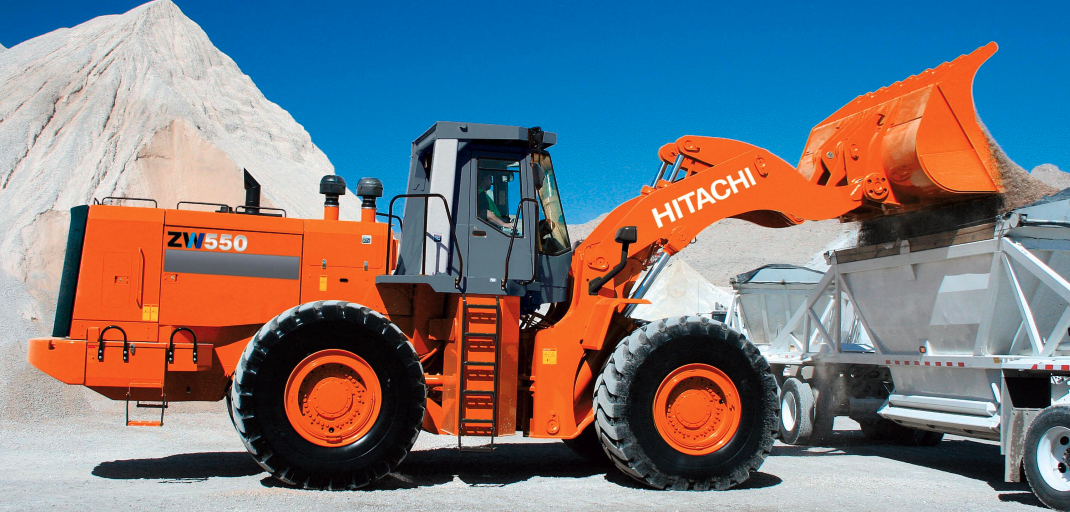

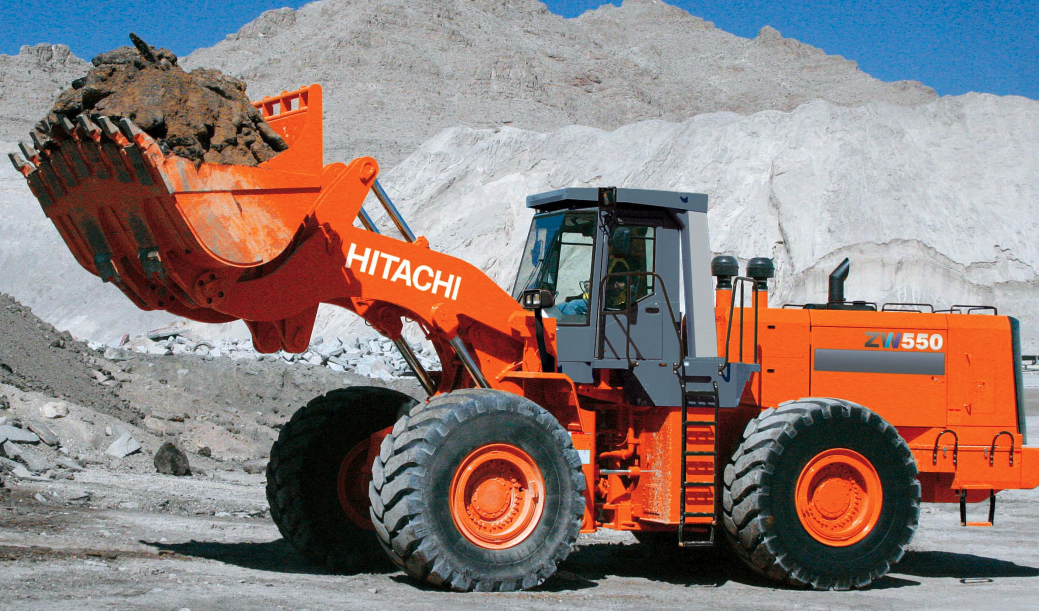

Tata Hitachi ZW 550

Tata Hitachi ZW 550 Wheel Loader is a high-performance machine designed to excel in various applications such as construction, road construction, waste management, landscaping, and agriculture. The Tata Hitachi ZW 550 is a powerful solution for industries requiring heavy-duty material handling, featuring advanced hydraulic systems, a large bucket capacity, and cutting-edge technology. Tata Hitachi ZW 550, powered by a robust 483 HP engine and an impressive operating weight of 45,960 kg, is built for heavy-duty tasks, offering unmatched durability and power. With a bucket capacity ranging from 6.0 to 10.0 m³, the ZW 550 is ideal for large-scale material handling. Its maximum operating height of 6,910 to 7,185 mm ensures efficient performance in challenging environments, optimizing material loading and unloading operations. Tata Hitachi ZW 550 Wheel Loader is equipped with advanced features such as a Load Sensing Hydraulic Steering System, which provides enhanced control and precision during operation. Its Advanced Rimpull Control and Acceleration system ensures smooth and efficient movement, while the computer-controlled engine optimizes performance for increased fuel efficiency and productivity.

Tata Hitachi ZW 550 Features

Engine
Model	Cummins QSK19	Engine Gross Power	483 HP(360 KW) @ 1800 rpm
Displacement	18.87 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	36.0 km/h	Max. Reverse Speed	23.6 km/h
Transmission Type	Torque converter, planetary gear type powershift with computer-controlled automatic shift	Torque Converter	Three element, single stage, single phase

Steering System
Steering Type	Articulated frame steering	Turning Radius Outside of Wheels	7045 mm

Drive and Brake
Service Brake	Inboard mounted fully hydraulic 4 wheel wet disc brake

Tyres
Tyre Size	35 / 65-33-24PR

Hydraulic System
Raise Time	8.4 Sec.	Dump Time	1.7 Sec.
Lower Time	5.0 Sec.	Total Hydraulic Cycle Time	15.1 Sec.

Axles
Front Axle Type	Fixed to the front frame	Rear Axle Type	Trunnion support
Oscillation Angle	26°

Refill Capacity
Fuel Tank Capacity	660 L	Engine Oil Capacity	61 L
Transmission Oil Capacity	90 L

Operating Weight
Operating Weight	45130 - 45960 kg

Dimensions
Static Tipping Load	28990 - 30300 kgf	Overall Length	11010 - 11350 mm
Bucket Capacity	6.0 - 10.0 m³	Loader Bucket Break-out Force	31800 - 45800 kgf
Max. Digging Depth	130 - 190 mm	Wheelbase	4150 mm
Ground Clearance	545 mm

Engine
Model	Cummins QSK19
Engine Gross Power	483 HP(360 KW) @ 1800 rpm
Displacement	18.87 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	36.0 km/h
Max. Reverse Speed	23.6 km/h
Transmission Type	Torque converter, planetary gear type powershift with computer-controlled automatic shift
Torque Converter	Three element, single stage, single phase

Steering System
Steering Type	Articulated frame steering
Turning Radius Outside of Wheels	7045 mm

Drive and Brake
Service Brake	Inboard mounted fully hydraulic 4 wheel wet disc brake

Tyres
Tyre Size	35 / 65-33-24PR

Hydraulic System
Raise Time	8.4 Sec.
Dump Time	1.7 Sec.
Lower Time	5.0 Sec.
Total Hydraulic Cycle Time	15.1 Sec.

Axles
Front Axle Type	Fixed to the front frame
Rear Axle Type	Trunnion support
Oscillation Angle	26°

Refill Capacity
Fuel Tank Capacity	660 L
Engine Oil Capacity	61 L
Transmission Oil Capacity	90 L

Operating Weight
Operating Weight	45130 - 45960 kg

Dimensions
Static Tipping Load	28990 - 30300 kgf
Overall Length	11010 - 11350 mm
Bucket Capacity	6.0 - 10.0 m³
Loader Bucket Break-out Force	31800 - 45800 kgf
Max. Digging Depth	130 - 190 mm
Wheelbase	4150 mm
Ground Clearance	545 mm
