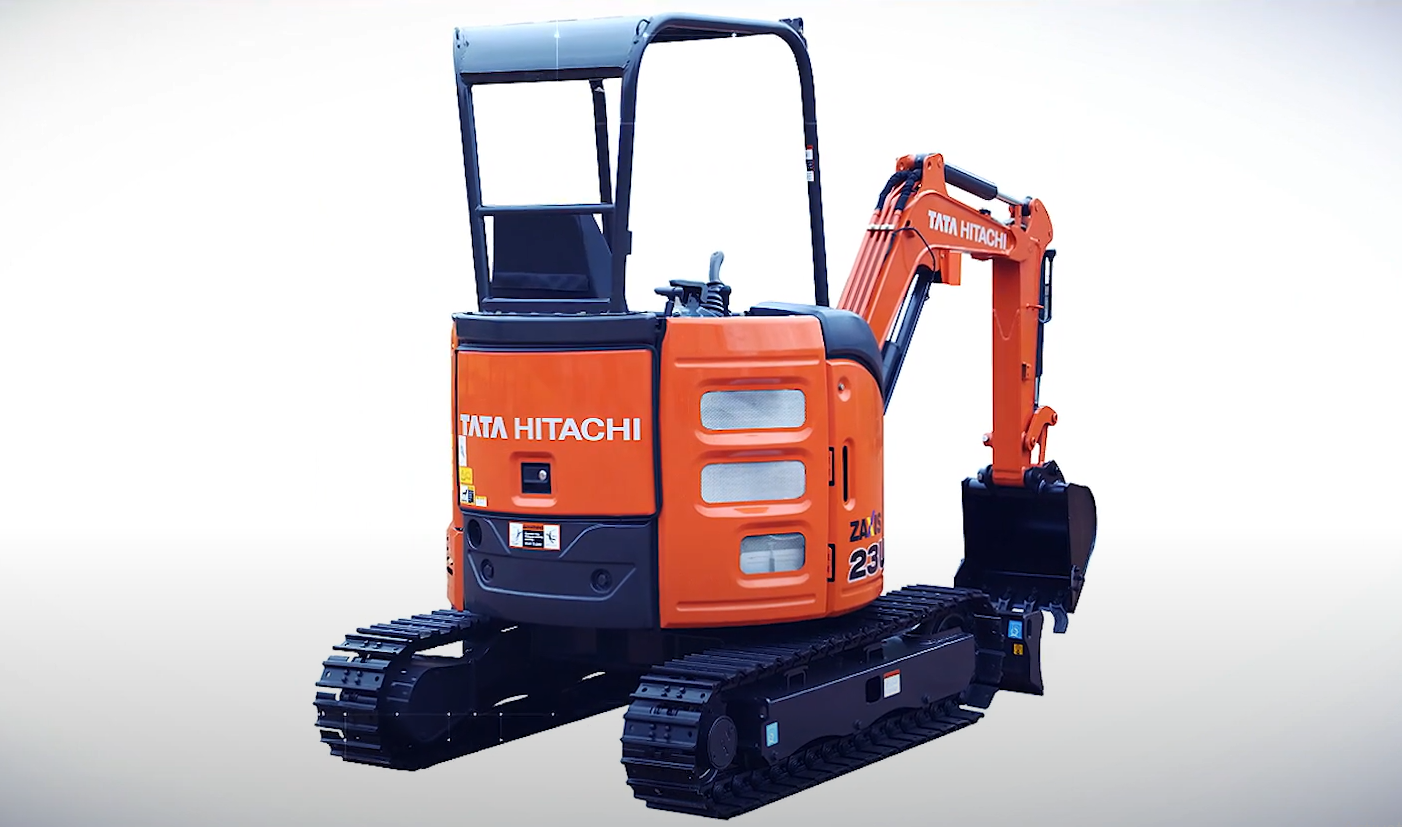

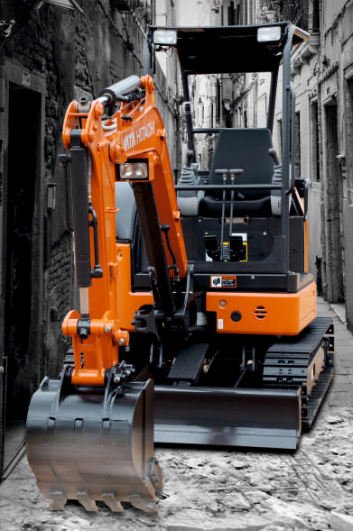

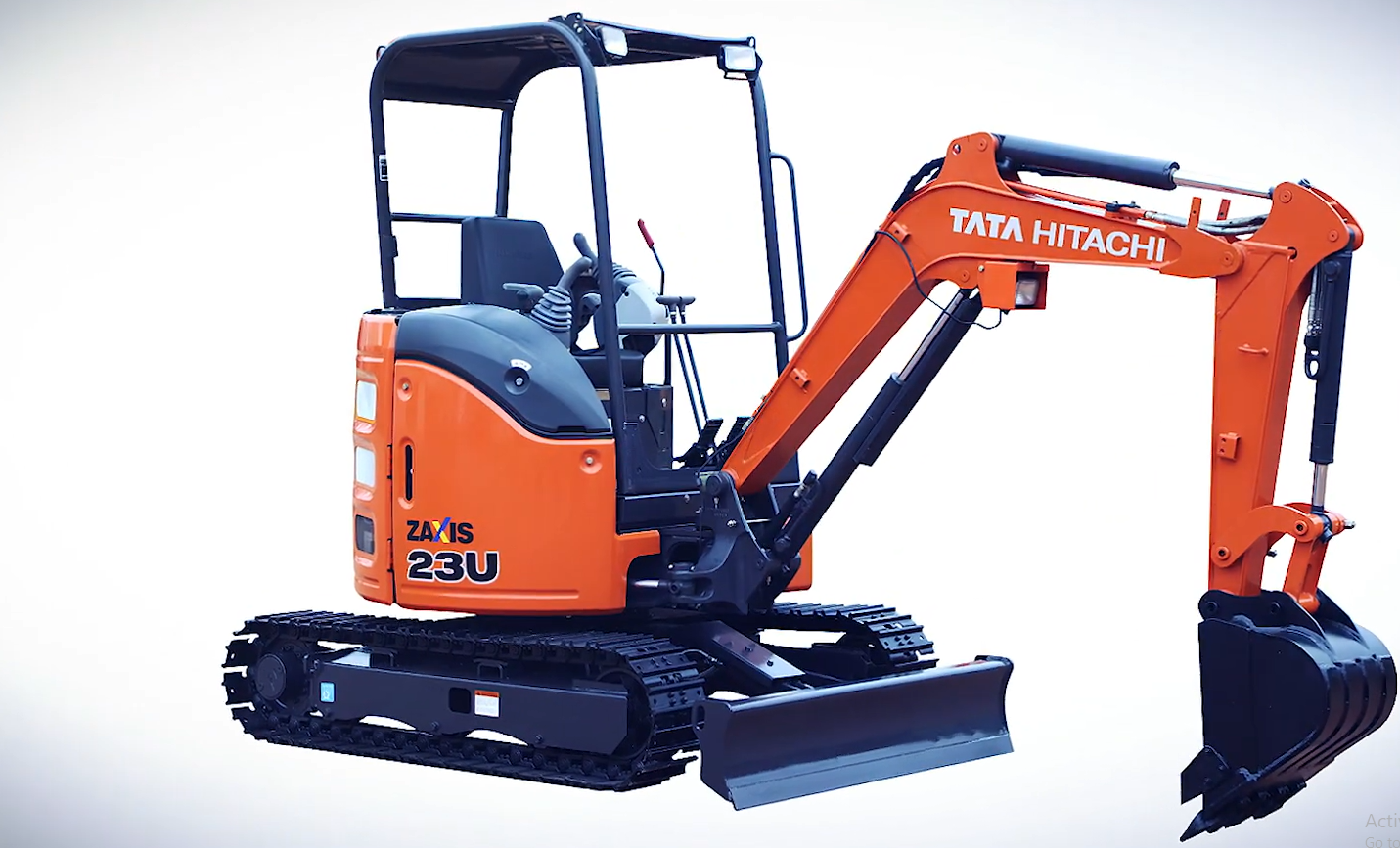

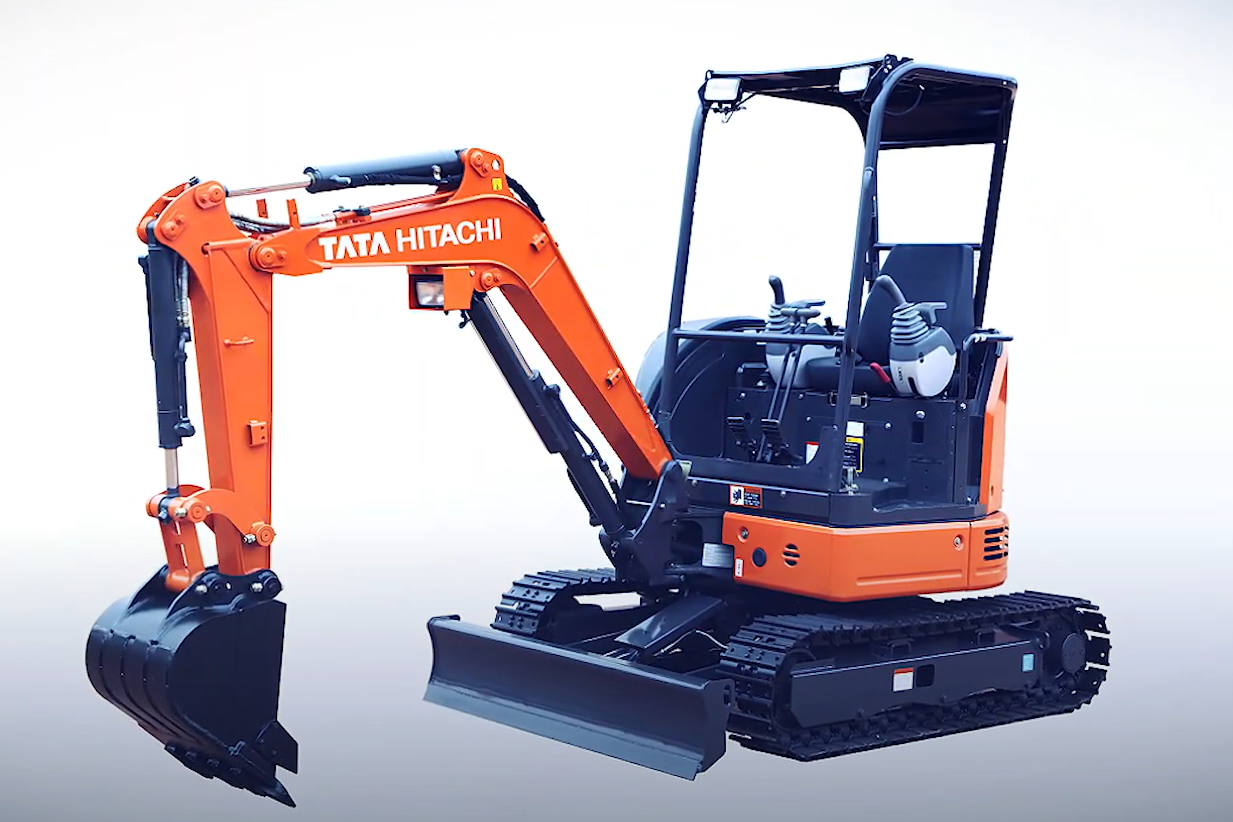

Tata Hitachi Zaxis 23U Mini Excavator is a powerful machine that boasts advanced features designed to enhance efficiency and productivity. Tata Hitachi Zaxis 23U, a versatile and powerful machine designed for a wide range of applications, including construction, infrastructure development, and agriculture. The Zaxis 23U Mini Excavator offers the perfect balance between power and mobility, ensuring smooth operation across various terrains. Tata Hitachi Zaxis 23U is powered by a robust 17.45 HP engine, ensuring top-notch performance in a compact design, perfect for tight spaces. Weighing 2356 kg, it features a bucket capacity of 0.07 m³ and a bucket digging force of 1900 kgf, providing efficient earthmoving capabilities for both heavy-duty and small-scale projects. Its maximum digging depth of 2330 mm allows for precise excavation, making the Tata Hitachi Zaxis 23U an excellent choice for tasks requiring accuracy and power. Tata Hitachi Zaxis 23U Mini Excavator stands out with its Zero Tail Swing feature, offering superior maneuverability in confined spaces where precision is essential. Combined with the Boom Swing feature, this mini excavator allows for digging and shifting without repositioning, significantly boosting productivity on the job site. Safety is also prioritized with a Lock Lever Compulsory for Engine Start, ensuring added security during operation, making the Tata Hitachi Zaxis 23U both efficient and safe for various projects.
Engine | |||
---|---|---|---|
Model | 3TNV76 | Type | 4 Cycle, water cooled, 3 cylinder swirl-chamber type |
Engine Gross Power | 17.45 HP @ 2200 rpm | Displacement | 1.115 L |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 9.2 rpm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 4.4 km/h | Gradeability | 25°(47%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 2 Variable displacement axial piston pumps, 1 gear pump |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 34 L | Hydraulic System | 30 L |
Hydraulic Oil Capacity | 19 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 2356 kg |
Dimensions | |||
---|---|---|---|
Overall Length | 3860 mm | Overall Height | 2410 mm |
Bucket Capacity | 0.07 m³ | Track Gauge | 1200 mm |
|
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 2800 mm | Max. Digging Depth | 2330 mm |
Max. Vertical Wall Digging Depth | 1940 mm | Max. Digging Reach | 4190 mm |
|
Engine | |
---|---|
Model | 3TNV76 |
Type | 4 Cycle, water cooled, 3 cylinder swirl-chamber type |
Engine Gross Power | 17.45 HP @ 2200 rpm |
Displacement | 1.115 L |
Swing System | |
---|---|
Max. Swing Speed | 9.2 rpm |
Drive and Brake | |
---|---|
Max. Travel Speed | 4.4 km/h |
Gradeability | 25°(47%) |
Hydraulic System | |
---|---|
Main Pump Type | 2 Variable displacement axial piston pumps, 1 gear pump |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 34 L |
Hydraulic System | 30 L |
Hydraulic Oil Capacity | 19 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 2356 kg |
Dimensions | |
---|---|
Overall Length | 3860 mm |
Overall Height | 2410 mm |
Bucket Capacity | 0.07 m³ |
Track Gauge | 1200 mm |
Ground Clearance | 290 mm |
|
Working Ranges | |
---|---|
Max. Dumping Height | 2800 mm |
Max. Digging Depth | 2330 mm |
Max. Vertical Wall Digging Depth | 1940 mm |
Max. Digging Reach | 4190 mm |
Max. Digging Reach at Ground Level | 4060 mm |
|
