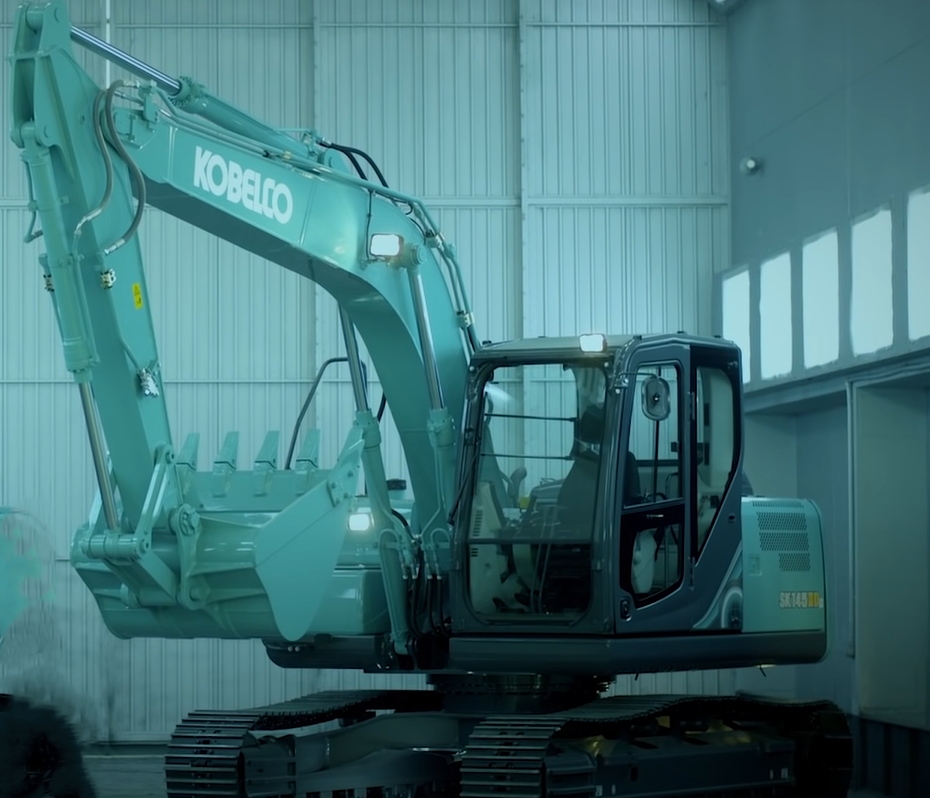

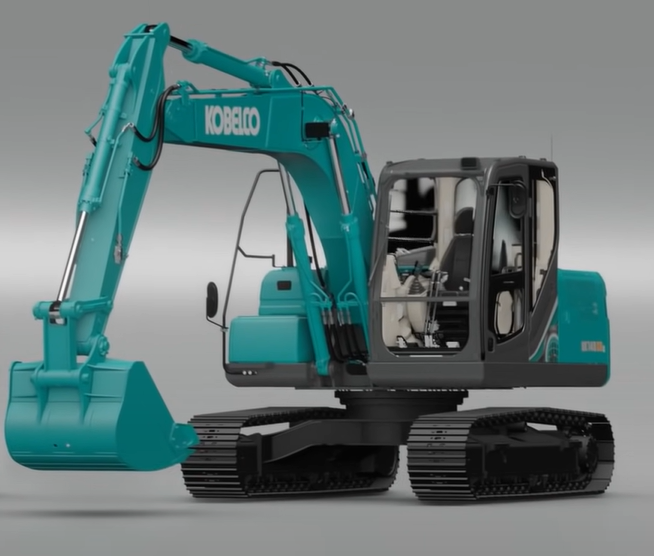

Kobelco SK145XDLC Excavator

The Kobelco SK145XDLC excavator is designed for a wide range of applications such as utility installation, quarrying, mining, road construction, and forestry. Additionally, it handles various tasks like material handling, lifting heavy loads, snow removal, building foundations, and dumping materials.

The Kobelco SK145XDLC combined with a ISUZU 4JJ1 diesel engine, provides high performance and fuel efficiency. Its unique 2-variable and 1-gear pump hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 97.9 HP at 2000 rpm and 2.9 L piston displacement, delivering lower fuel consumption and enhanced productivity.

*Ex-Showroom Price

Coming Soon

Kobelco SK145XDLC Key Specifications

Kobelco SK145XDLC Features

Engine

Model ISUZU 4JJ1

Type Four cycle, water cooled, overhead camshaft, vertical in-line, direct injection type, with turbocharger

Engine Gross Power 97.9 HP (73 kw) @ 2000 rpm

Max. Torque 365 Nm @ 1600 rpm

Displacement 2.9 L

Swing System

Max. Swing Speed 10.9 rpm

Min. Swing Radius 2.62-2.8 m

Drive and Brake

Max. Travel Speed 5.7 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement pumps + one gear pump

Main Pump max. Oil Flow 2 x 130 lpm, 1 x 20 lpm

Swing Circuit 28 MPa

Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 271 L

Engine Oil and Filter 17 L

Hydraulic System 197 L

Hydraulic Tank Capacity 94.5 L

Weight and Ground Pressure

Operating Weight 13800-14100 kg

Ground Pressure 30-41 kPa

Dimensions

Overall Length 7940-7970 mm

Overall Height 2740-3130 mm

Bucket Capacity 0.6-0.7 m³

Track Gauge 1990 mm

Ground Clearance 415 mm

Working Ranges

Max. Dumping Height 5810-6350 mm

Max. Digging Depth 5280-6030 mm

Max. Vertical Wall Digging Depth 4880-5620 mm

Max. Digging Reach 8090-8830 mm

Max. Digging Reach at Ground 7930-8690 mm

Boom Length 4680 mm

Arm Length 2090-2840 mm

Bucket Digging Force 89.2-89.3 kN

Arm Crowding Force 57.9-71.5 kN

Top Applications of Kobelco SK145XDLC

1. Forest Work

Its 0.7 m³ bucket capacity improves job site efficiency and enhances material handling operations in forest activities.

2. Utility Installations

The Kobelco SK145XDLC's swing speed helps in easily installing cables or pipelines and provides higher efficiency and faster work.

3. Road Construction

The Kobelco SK145XDLC excavator's large fuel tank capacity reduced downtime on road construction sites and improved productivity.

4. Demolition

Its 14,100 kg operating weight handles large loads with ease and keeps demolition operations steady and efficient.

5. Waste Management

The Kobelco SK145XDLC is ideal for deeper excavation work, whether in dump yards or waste management.
