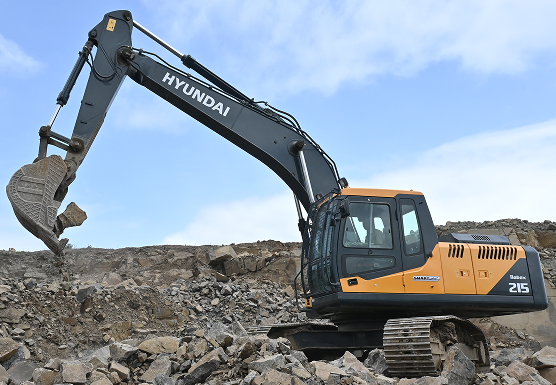

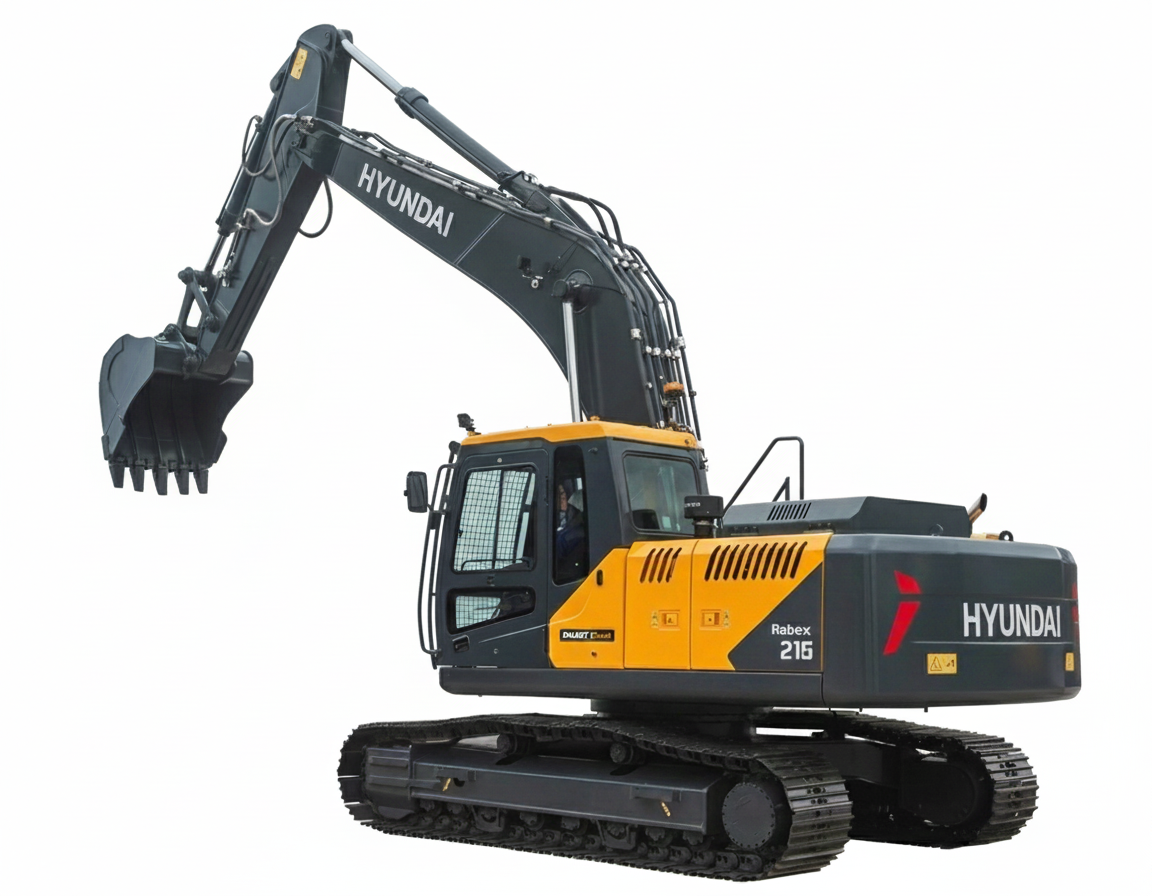

Hyundai R215 SMART X PLUS Excavator

The Hyundai R215 SMART X PLUS excavator is working in multiple applications, including construction, utility installations, road maintenance, waste management, and mining sites. It can perform multiple tasks like digging, excavating, building foundations, snow removal, dredging, and lifting operations.

The Hyundai R215 SMART X PLUS featured easy maintenance, an automatic fire detection and suspension system, and more. Additionally, it works with multiple attachments like rock breakers, grapples, augers, buckets, and more.

Powered by a 140 HP engine, it offers smooth riding in uneven terrain. Its maximum forward speed is up to 5.3 km/h provides faster work without compromising performance.

*Ex-Showroom Price

₹ 64 - 66 Lakhs

Hyundai R215 SMART X PLUS Key Specifications

Hyundai R215 SMART X PLUS Features

Engine

Model Cummins 6BT5.9-C

Engine Gross Power 140 HP(104 KW) @ 2000 rpm

Max. Torque 564 Nm @ 1600 rpm

Displacement 5.88 L

Undercarriage

No. of Shoes 48

No. of Upper Rollers 2

No. of Bottom Rollers 8

Track Shoe Width 600 mm

Swing System

Max. Swing Speed 11 rpm

Min. Swing Radius 3680-3789 mm

Drive and Brake

Max. Travel Speed 5.3 km/h

Gradeability 70% (35°)

Hydraulic System

Main Pump Type 2 Variable Displacement Piston Pumps

Main Pump max. Oil Flow 2 x 220 lpm

Swing Circuit 240 kgf/cm²

Travel Circuit 330 kgf/cm²

Refill Capacity

Fuel Tank Capacity 340 L

Engine Oil and Filter 21 L

Hydraulic System 290 L

Hydraulic Tank Capacity 150 L

Weight and Ground Pressure

Operating Weight 21700 kg

Ground Pressure 0.47 kgf/cm²

Dimensions

Overall Length 9610 mm

Overall Height 2920 mm

Bucket Capacity 0.92-1.5 m³

Track Gauge 2390 mm

Ground Clearance 480 mm

Working Ranges

Max. Dumping Height 6254-6705 mm

Max. Digging Depth 5836-6756 mm

Max. Vertical Wall Digging Depth 4796-5828 mm

Max. Digging Reach 9101-9952 mm

Max. Digging Reach at Ground Level 8928-9795 mm

Boom Length 5680 mm

Arm Length 2000-2920 mm

Bucket Digging Force 16600 kgf

Arm Crowding Force 12600 kgf

Top Applications of Hyundai R215 SMART X PLUS

1. Road Construction

The Hyundai R215 SMART X PLUS's powerful engine ensures smooth performance in any road construction site and tough working conditions.

2. Demolition

The Hyundai R215 SMART X PLUS excavator with an 11 rpm swing speed increases daily output and reduces operator fatigue in demolition operations.

3. Waste Management

The Hyundai R215 SMART X PLUS excavator comes with a large bucket capacity and offers faster cycle times and efficient material handling in waste management.

4. Mining Sites

The Hyundai R215 SMART X PLUS excavator's high operating capacity easily handles heavy loads and performs efficiently on uneven ground or mining sites.

5. Forest Work

The Hyundai R215 SMART X PLUS excavator's digging depth easily trenches in the forest and provides versatility and efficiency during the operations.
