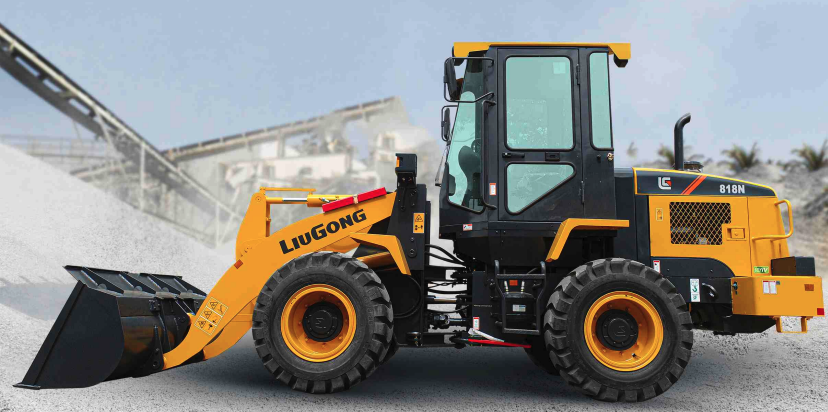

Liugong's Wheel Loader 818N is a small and efficient machine built for a variety of material handling duties across industries. The 818N comes equipped with a dependable 54.8 kW (74.5 HP) engine that runs at 2,200 rpm. With a lightweight construction and an operational weight of 5,610 kg, the 818N provides great maneuverability and agility. The 818N's 100 L fuel tank guarantees a prolonged operating duration. The 818N has a large bucket capacity of 1.2 m³, enabling efficient material handling and loading. With a maximum torque of 300 Nm at 1,300 rpm, the 818N provides enough power and traction to handle a variety of weights and chores with ease. Liugong's Wheel Loader 818N is developed to deliver dependable performance, efficiency, and adaptability over a wide range of material handling applications.
Engine | |||
---|---|---|---|
Model | 4R1190NA1 | Engine Gross Power | 74.5 hp(54.8 kW) @ 2200 RPM |
Max. Torque | 300 Nm @ 1300 RPM | Displacement | 4.76 L |
Electrical System | |||
---|---|---|---|
Battery | 12 V |
Transmission | |||
---|---|---|---|
Transmission Type | Countershaft Powershift | Max. Forward Speed | 25 km/h |
Max. Reverse Speed | 17 km/h | Torque Converter | 3 Element-Single Stage |
Axles | |||
---|---|---|---|
Front Axle Type | Dry Type Axle | Rear Axle Type | Dry Type Axle |
Oscillation Angle | 11° |
Drive and Brake | |||
---|---|---|---|
Service Brake | Air over Hydraulic with Independent | Parking Brake | Drum Brake Mechanical Actuation |
Steering System | |||
---|---|---|---|
Steering Type | Articulation | Articulation Angle | 38° |
Turning Radius | 6000 mm |
Tyres | |||
---|---|---|---|
Tyre Size | 16-20-14 PR |
Hydraulic System | |||
---|---|---|---|
Main Pump | Gear Pump | Main Pump Flow | 110 LPM |
Hydraulic Cycle Times | |||
---|---|---|---|
Total Hydraulic Cycle Time | 8.8 Sec. |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 100 L | Transmission Oil Capacity | 18 L |
Axle Oil Capacity | 8 L | Engine Oil Capacity | 12 L |
Operating Specifications | |||
---|---|---|---|
Operating Weight | 5610 kg |
Dimensions | |||
---|---|---|---|
Overall Length | 5893 mm | Max. Digging Depth | 40 mm |
Loader Bucket Breakout Force | 5649 kgf | Bucket Capacity | 1.2 m³ |
|
Engine | |
---|---|
Model | 4R1190NA1 |
Engine Gross Power | 74.5 hp(54.8 kW) @ 2200 RPM |
Max. Torque | 300 Nm @ 1300 RPM |
Displacement | 4.76 L |
Electrical System | |
---|---|
Battery | 12 V |
Transmission | |
---|---|
Transmission Type | Countershaft Powershift |
Max. Forward Speed | 25 km/h |
Max. Reverse Speed | 17 km/h |
Torque Converter | 3 Element-Single Stage |
Axles | |
---|---|
Front Axle Type | Dry Type Axle |
Rear Axle Type | Dry Type Axle |
Oscillation Angle | 11° |
Drive and Brake | |
---|---|
Service Brake | Air over Hydraulic with Independent |
Parking Brake | Drum Brake Mechanical Actuation |
Steering System | |
---|---|
Steering Type | Articulation |
Articulation Angle | 38° |
Turning Radius | 6000 mm |
Tyres | |
---|---|
Tyre Size | 16-20-14 PR |
Hydraulic System | |
---|---|
Main Pump | Gear Pump |
Main Pump Flow | 110 LPM |
Hydraulic Cycle Times | |
---|---|
Total Hydraulic Cycle Time | 8.8 Sec. |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 100 L |
Transmission Oil Capacity | 18 L |
Axle Oil Capacity | 8 L |
Engine Oil Capacity | 12 L |
Operating Specifications | |
---|---|
Operating Weight | 5610 kg |
Dimensions | |
---|---|
Overall Length | 5893 mm |
Max. Digging Depth | 40 mm |
Loader Bucket Breakout Force | 5649 kgf |
Bucket Capacity | 1.2 m³ |
Static Tipping Load | 4150 kg |
Wheelbase | 2200 mm |
Ground Clearance | 285 mm |
|
