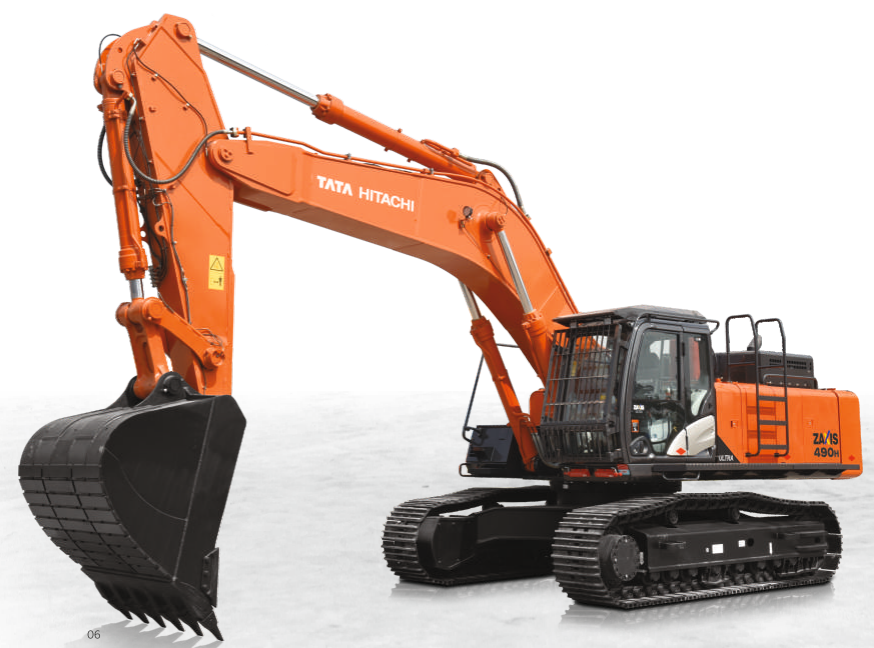

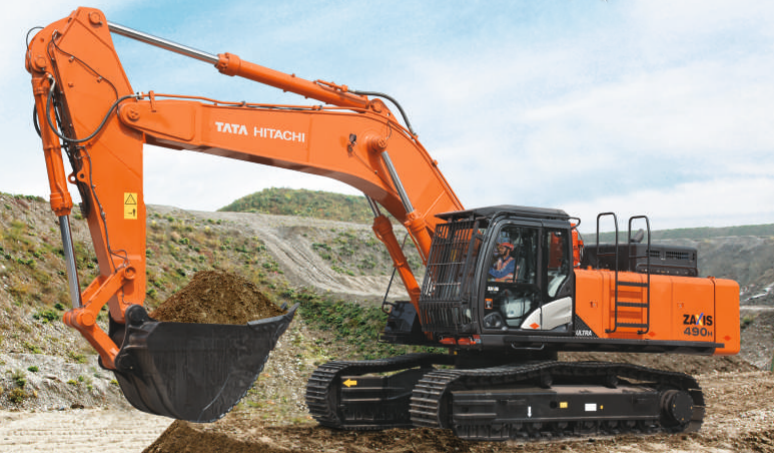

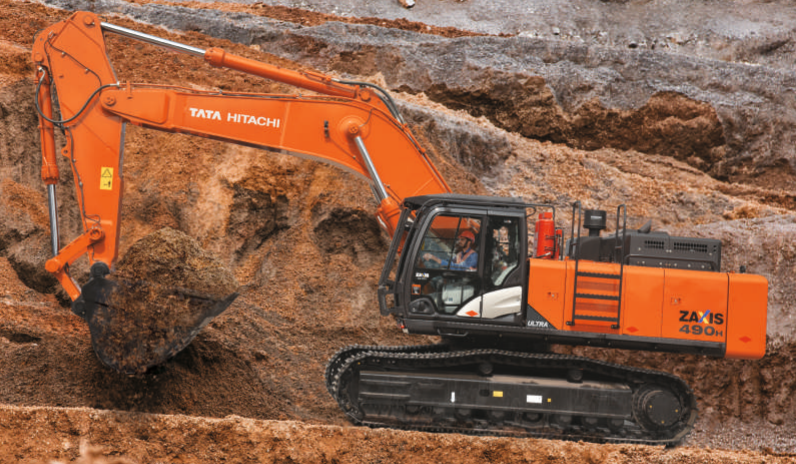

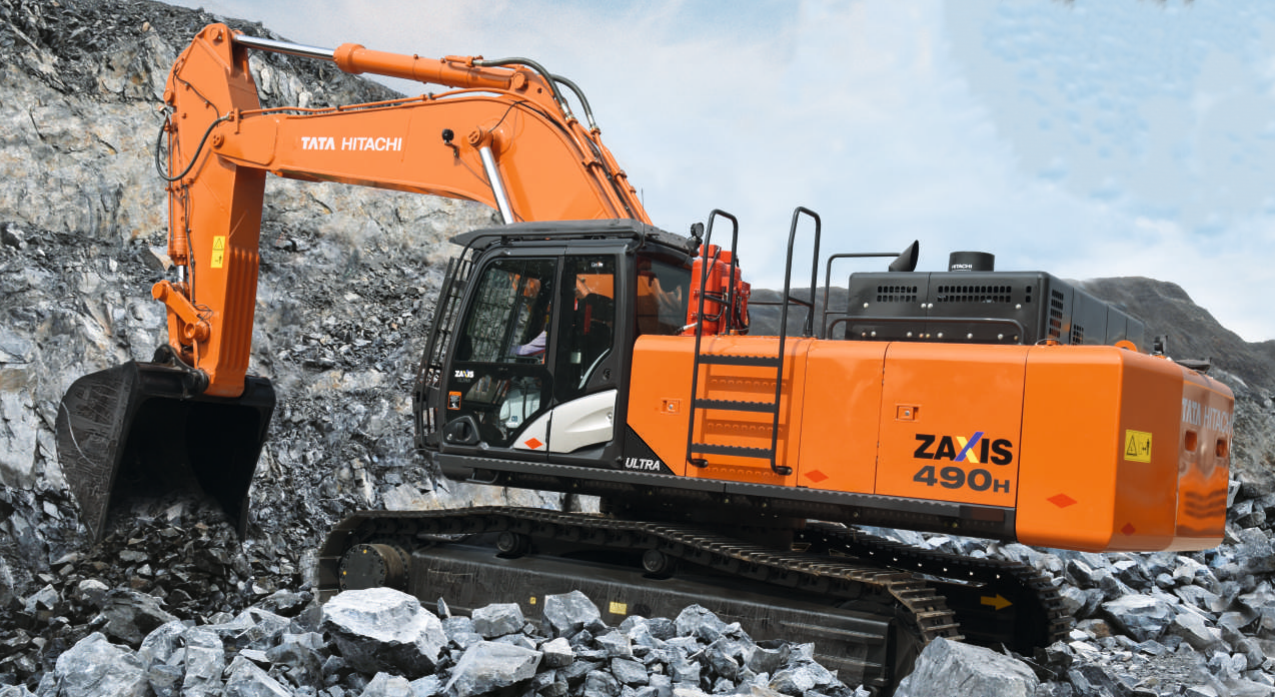

Tata Hitachi ZAXIS 490H ULTRA

Tata Hitachi ZAXIS 490H Ultra Mining Excavator is a top-tier machine designed to meet the rigorous demands of heavy-duty applications. Built for exceptional performance, the ZAXIS 490H Ultra Mining Excavator excels in challenging environments, making it an essential tool for professionals seeking reliability and efficiency in their operations. With its advanced features and robust design, this excavator delivers outstanding results, ensuring it remains a valuable asset in any heavy-duty project. Tata Hitachi ZAXIS 490H Ultra features an impressive engine gross power of 345 HP, engineered for optimal performance that enables operators to tackle challenging tasks with ease. With a substantial operating weight of 47,400 KG, it ensures stability and robustness, making it a reliable choice for large-scale projects. ZAXIS 490H Ultra Mining Excavator offers a versatile bucket capacity ranging from 1.9 to 3.1 m³, providing flexibility for various applications. Its powerful bucket digging force, varying from 22,360 to 29,130 kgf, allows for effective material handling and excavation. Additionally, the maximum digging depth of 6,053 to 10,030 mm enables deep excavations, making it suitable for complex projects that require precision and efficiency. Tata Hitachi ZAXIS 490H Ultra Mining Excavator features an innovative ECO Mode, providing extra fuel reduction during operation for enhanced efficiency. Incorporating the Human & Intelligent Operating System (HIOS), ZAXIS 490H Ultra Mining Excavator ensures smooth and precise control, significantly improving productivity while enhancing operator comfort and safety. Additionally, the factory-fitted rock breaker piping kit allows for seamless integration of rock-breaking attachments, expanding the machine's versatility for various tasks. These advanced features make the ZAXIS 490H Ultra an excellent choice for heavy-duty applications, ensuring optimal performance and adaptability in challenging environments.

Tata Hitachi ZAXIS 490H ULTRA Features

Engine
Model	Isuzu GH-6UZ1XKSA-01	Type	4-cycle water-cooled, direct injection
Engine Gross Power	345 HP @ 2000 rpm	Max. Torque	1363 Nm @ 1500 rpm
Displacement	9.839 L

Undercarriage
No. of Shoes	49	No. of Upper Rollers	2
No. of Bottom Rollers	8	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	9.5 rpm	Min. Swing Radius	3930-4850 mm

Drive and Brake
Max. Travel Speed	5.5 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 variable displacement axial piston pumps	Main Pump max. Oil Flow	2x400 lpm
Swing Circuit	290 kgf/cm²	Travel Circuit	360 kgf/cm²

Refill Capacity
Fuel Tank Capacity	725 L	Engine Oil and Filter	41 L
Hydraulic System	510 L	Hydraulic Tank Capacity	310 L

Weight and Ground Pressure
Operating Weight	47359-47759 kg	Ground Pressure	0.899-0.907 kgf/cm²

Dimensions
Overall Length	12110 mm	Overall Height	3170 mm
Bucket Capacity	1.9-3.1 m³	Track Gauge	2740 mm
Ground Clearance	495 mm

Working Ranges
Max. Dumping Height	3030-3550 mm	Max. Digging Depth	5920-10030 mm
Max. Vertical Wall Digging Depth	4150-9980 mm	Max. Digging Reach	10460-14620 mm
Max. Digging Reach at Ground Level	10240-14440 mm	Boom Length	6.3 m
Arm Length	2.5-7.0 m	Bucket Digging Force	22360-29130 kgf
Arm Crowding Force	12440-30520 kgf

Engine
Model	Isuzu GH-6UZ1XKSA-01
Type	4-cycle water-cooled, direct injection
Engine Gross Power	345 HP @ 2000 rpm
Max. Torque	1363 Nm @ 1500 rpm
Displacement	9.839 L

Undercarriage
No. of Shoes	49
No. of Upper Rollers	2
No. of Bottom Rollers	8
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	9.5 rpm
Min. Swing Radius	3930-4850 mm

Drive and Brake
Max. Travel Speed	5.5 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 variable displacement axial piston pumps
Main Pump max. Oil Flow	2x400 lpm
Swing Circuit	290 kgf/cm²
Travel Circuit	360 kgf/cm²

Refill Capacity
Fuel Tank Capacity	725 L
Engine Oil and Filter	41 L
Hydraulic System	510 L
Hydraulic Tank Capacity	310 L

Weight and Ground Pressure
Operating Weight	47359-47759 kg
Ground Pressure	0.899-0.907 kgf/cm²

Dimensions
Overall Length	12110 mm
Overall Height	3170 mm
Bucket Capacity	1.9-3.1 m³
Track Gauge	2740 mm
Ground Clearance	495 mm

Working Ranges
Max. Dumping Height	3030-3550 mm
Max. Digging Depth	5920-10030 mm
Max. Vertical Wall Digging Depth	4150-9980 mm
Max. Digging Reach	10460-14620 mm
Max. Digging Reach at Ground Level	10240-14440 mm
Boom Length	6.3 m
Arm Length	2.5-7.0 m
Bucket Digging Force	22360-29130 kgf
Arm Crowding Force	12440-30520 kgf
