JCB NXT 150

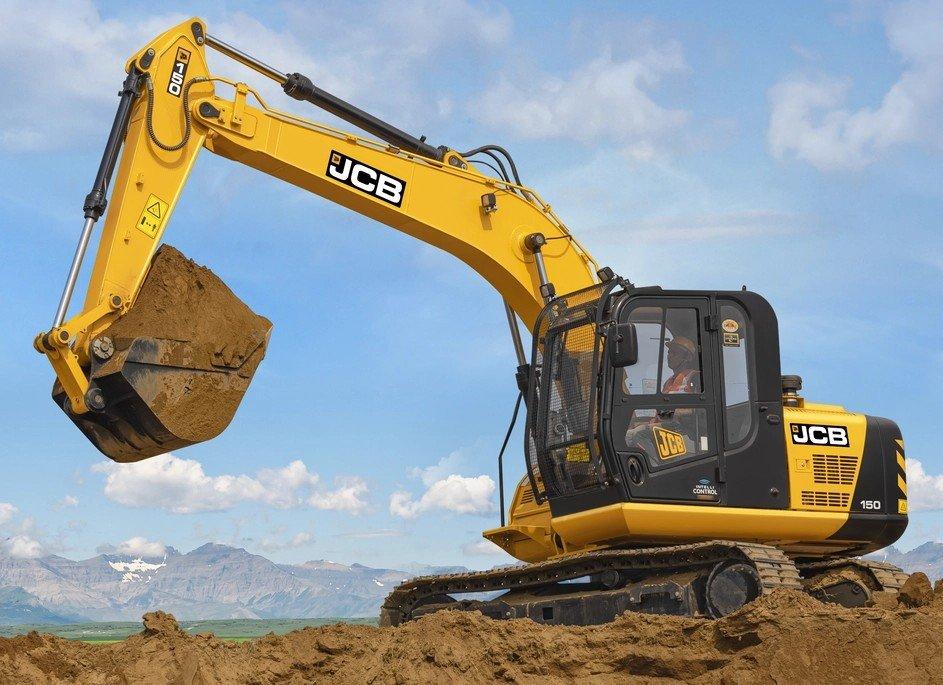

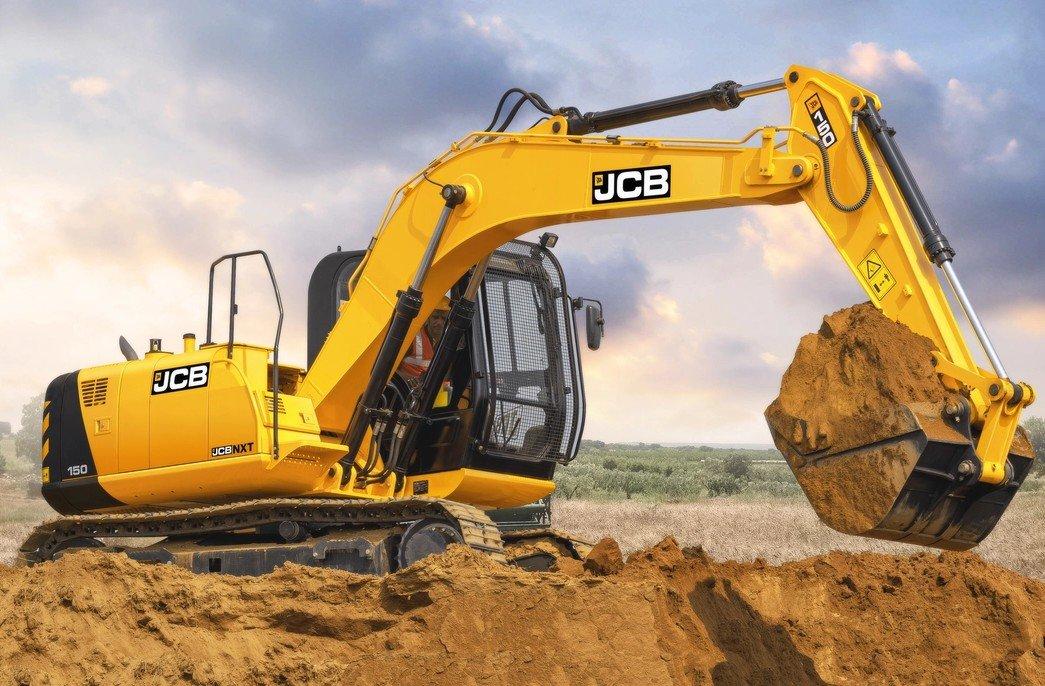

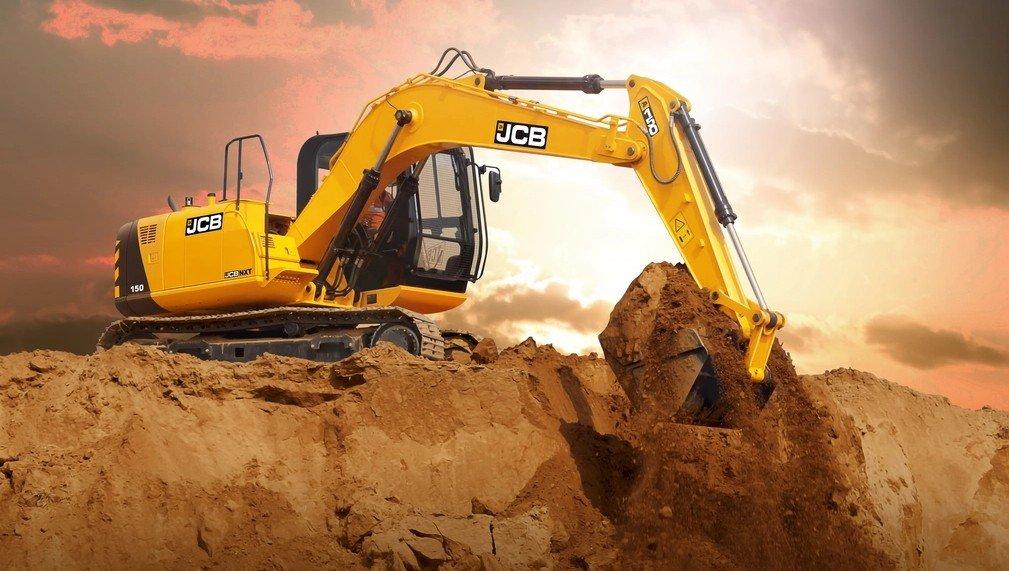

JCB NXT 150 Hydraulic Excavator is a highly versatile machine, excelling in a range of applications that enhance productivity across various industries. In agriculture, it is ideal for land preparation, soil movement, and numerous farming operations, ensuring efficiency and effective execution of tasks. For waste management, the NXT 150 Hydraulic Excavator is perfect for loading and transporting waste materials, contributing significantly to streamlined waste management solutions. In forestry, it supports tree removal and land clearing, demonstrating adaptability in rugged environments and complex terrains. Additionally, JCB NXT 150 is well-suited for marine construction, facilitating dredging and other marine project work, and providing reliable performance in both aquatic and shoreline applications. JCB NXT 150 boasts key specifications that enhance its performance and versatility across various applications. With an engine gross power of 75 kW, it delivers reliable and efficient operation. This NXT 150 Hydraulic Excavator has an operating weight of 14,700 kg, providing stability and support during heavy-duty tasks. Its maximum digging depth reaches up to 5.21 meters, allowing for effective excavation in a variety of environments. Additionally, the bucket capacity ranges from 0.63 to 0.75 m³, making JCB NXT 150 Hydraulic Excavator suitable for a wide range of material handling and digging requirements. JCB NXT 150 Hydraulic Excavator stands out with its unique selling points that enhance both performance and efficiency. It features ecoHYDRAULICS Technology, which minimizes hydraulic losses, leading to improved fuel efficiency and substantial cost savings over time, positioning the NXT 150 Hydraulic Excavator as an environmentally conscious choice. The regenerative hydraulic system allows for higher operating speeds, optimizing performance for quicker cycle times and increased productivity. Safety and comfort are prioritized with laminated glass on the front and right-hand side of the cabin, providing excellent visibility for the operator. Additionally, JCB NXT 150 offers flexible power modes, allowing users to select from three user-friendly options Power Plus, Power, and Economy to tailor the machine’s performance to specific job requirements, enhancing its versatility across various applications.

JCB NXT 150 Features

Engine
Model	Cummins 4BT 3.9C	Engine Gross Power	100 HP
Displacement	3.9 L

Undercarriage
No. of Shoes	44	No. of Upper Rollers	1
No. of Bottom Rollers	7	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	13.6 rpm	Min. Swing Radius	2.12 m

Drive and Brake
Max. Travel Speed	3.6 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 variable displacement axial piston	Main Pump max. Oil Flow	2x120 lpm
Swing Circuit	279 bar	Travel Circuit	330 bar

Refill Capacity
Fuel Tank Capacity	253 L	Engine Oil and Filter	13.5 L
Hydraulic System	173 L	Hydraulic Tank Capacity	73 L

Weight and Ground Pressure
Operating Weight	14700 kg	Ground Pressure	0.39 kg/cm²

Dimensions
Overall Length	7.71 m	Overall Height	2.81 m
Bucket Capacity	0.75 m³	Track Gauge	1.99 m
Ground Clearance	460 mm

Working Ranges
Max. Dumping Height	8.88 m	Max. Digging Depth	5.21 m
Max. Vertical Wall Digging Depth	4.63 m	Max. Digging Reach	8.03 m
Max. Digging Reach at Ground level	7.89 m	Boom Length	4.7 m
Arm Length	2.1 m	Bucket Digging Force	9432 kgf
Arm Crowding Force	7566 kgf

Engine
Model	Cummins 4BT 3.9C
Engine Gross Power	100 HP
Displacement	3.9 L

Undercarriage
No. of Shoes	44
No. of Upper Rollers	1
No. of Bottom Rollers	7
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	13.6 rpm
Min. Swing Radius	2.12 m

Drive and Brake
Max. Travel Speed	3.6 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 variable displacement axial piston
Main Pump max. Oil Flow	2x120 lpm
Swing Circuit	279 bar
Travel Circuit	330 bar

Refill Capacity
Fuel Tank Capacity	253 L
Engine Oil and Filter	13.5 L
Hydraulic System	173 L
Hydraulic Tank Capacity	73 L

Weight and Ground Pressure
Operating Weight	14700 kg
Ground Pressure	0.39 kg/cm²

Dimensions
Overall Length	7.71 m
Overall Height	2.81 m
Bucket Capacity	0.75 m³
Track Gauge	1.99 m
Ground Clearance	460 mm

Working Ranges
Max. Dumping Height	8.88 m
Max. Digging Depth	5.21 m
Max. Vertical Wall Digging Depth	4.63 m
Max. Digging Reach	8.03 m
Max. Digging Reach at Ground level	7.89 m
Boom Length	4.7 m
Arm Length	2.1 m
Bucket Digging Force	9432 kgf
Arm Crowding Force	7566 kgf
