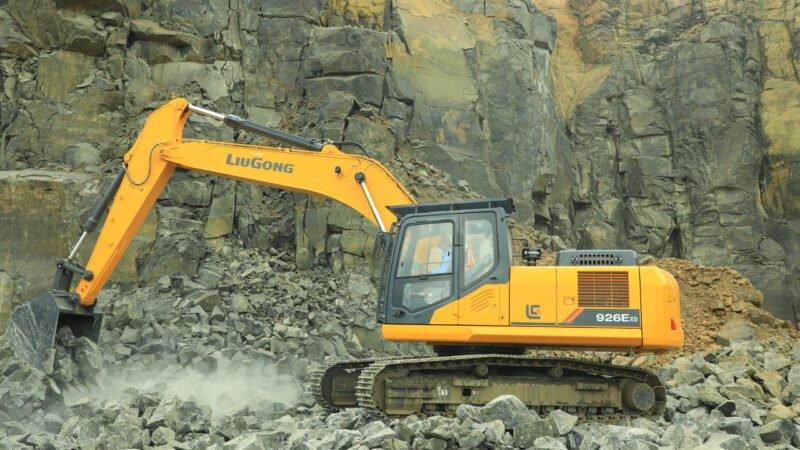

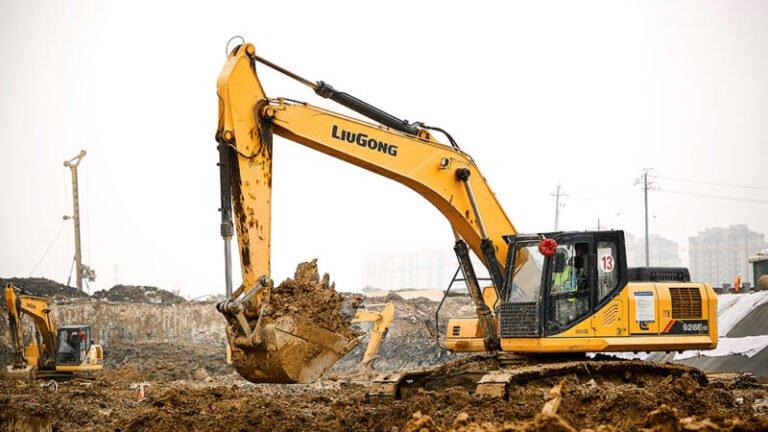

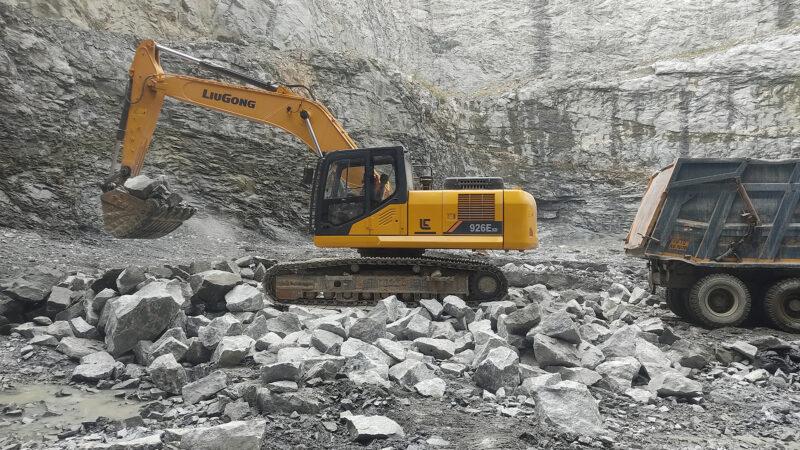

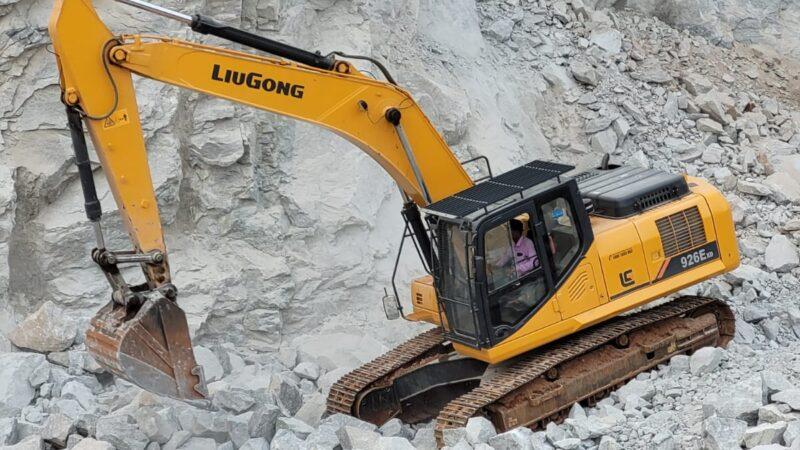

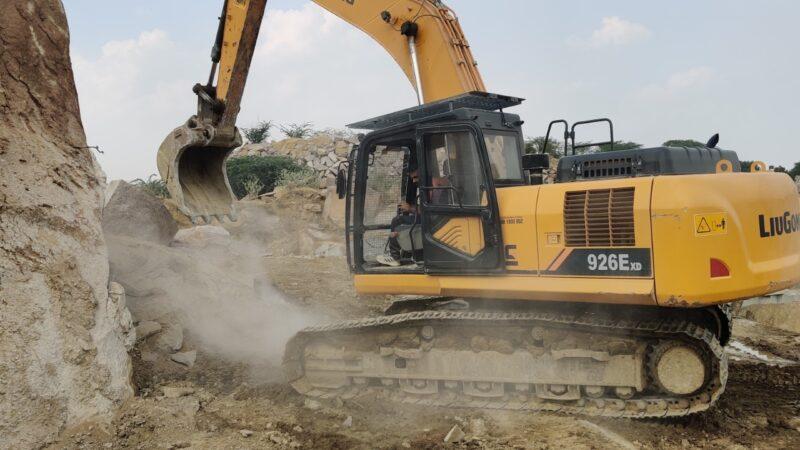

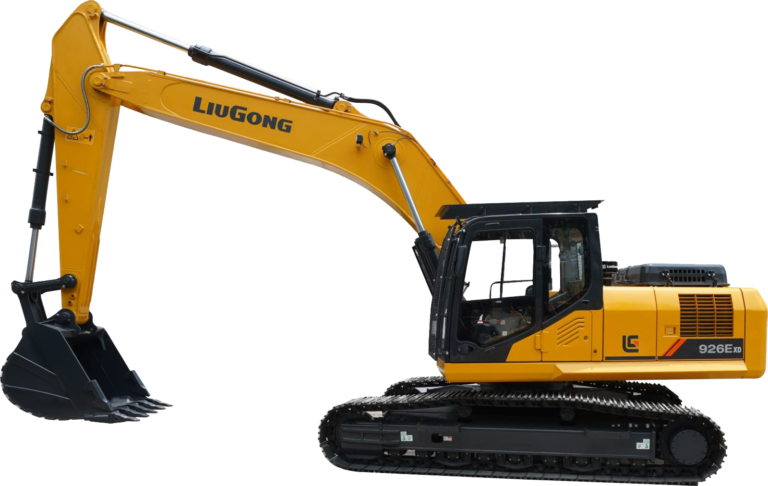

Liugong 926E XD

The Excavator 926E XD by Liugong is a high-performance equipment designed for a wide range of excavation jobs. The 926E XD is driven by a strong 188 HP engine that runs at 2,050 rpm, ensuring efficient and powerful excavation operations. With a robust working weight of 26,500 kg, the 926E XD provides exceptional stability and longevity. The 926E XD can dig a maximum depth of 6,915 mm. With a basic bucket capacity of 1.5 m³. The 926E XD produces a significant torque of 800 Nm at 1,200 rpm, assuring robust performance and improved digging capabilities. 926E XD is your dependable partner for reaching peak performance with accuracy and power. Liugong's xcavator 926E XD is intended to provide outstanding performance, efficiency, and durability in a variety of excavation applications.

Liugong 926E XD Features

Engine
Make	CUMMINS	Engine Model	QSB7
Gross Power	188 hp @ 2050 rpm	Peak Torque	800 N-m @ 1200 rpm
Number of Cylinders	6	Displacement	6.7 L
Aspiration	Tourbocharged

Hydraulic System
Main Pump Type	Two Variable Displacement Piston Pumps	Maximum Flow	2 x 240 LPM

Relief Valve Setting
Implement	34.3/37.3 MPa	Travel Circuit	34.3 MPa
Swing Circuit	28.5 MPa	Pilot Circuit	3.9 MPa

Swing System
Swing Speed	12 rpm	Swing Torque	80, 00 N-m
Swing Motor	Axial Piston Motor	Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed

Optional
ARM	2500 mm

Buckets
XD Bucket	1.35 m³	GP Bucket	1.5 m³

Undercarriage
Center Frame	X-Plate	Track Frame	Box Type
Track Shoe Each Side	51	Track Guard	3
Shoe Width, Triple Grouser	600 mm	Bottom Rollers Each Side	9
Top Rollers Each Side	2

Service Capacities
Fuel Tank	540 L	Engine Oil	25 L
Final Drive	5.5 x 2 L	Cooling System	25 L
Hydraulic System Total	330 L	Swing Device	4.4 L
Hydraulic Reservoir	210 L

Drive System
Drive Motor	Axial Piston Motor	Drive Reduction	Planetary Gear
Max. Drawbar Pull	248 kN	Travel Speed (High/Low)	(5.1/3.3) Km/h
Gradeability	70%) (35°)

Electrical System
Voltage	24 V	Battery	12 V, 120Ah x2
Working Lights	5

Working Range
Boom	6000 mm	Arm	2980 mm
Max. Digging Reach	10330 mm	Max. Digging Reach on Ground	10155 mm
Max. Digging Depth	6915 mm	Max. Digging Depth 2.44m (8')	6710 mm
Max. Vertical Wall Digging Depth	6060 mm	Max. Cutting Height	9815 mm
Max. Dumping Height	6830 mm	Min. Front Swing Radius	3645 mm
Bucket Digging Force (ISO)	179 kN	Arm Digging Force (ISO)	134 kN
Bucket Capacity	1.35/1.5 m³

Operating Weight
Operating Weight	26500 kg	Shoe Ground Pressure	56.4 kPa

Engine
Make	CUMMINS
Engine Model	QSB7
Gross Power	188 hp @ 2050 rpm
Peak Torque	800 N-m @ 1200 rpm
Number of Cylinders	6
Displacement	6.7 L
Aspiration	Tourbocharged

Hydraulic System
Main Pump Type	Two Variable Displacement Piston Pumps
Maximum Flow	2 x 240 LPM

Relief Valve Setting
Implement	34.3/37.3 MPa
Travel Circuit	34.3 MPa
Swing Circuit	28.5 MPa
Pilot Circuit	3.9 MPa

Swing System
Swing Speed	12 rpm
Swing Torque	80, 00 N-m
Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed

Optional
ARM	2500 mm

Buckets
XD Bucket	1.35 m³
GP Bucket	1.5 m³

Undercarriage
Center Frame	X-Plate
Track Frame	Box Type
Track Shoe Each Side	51
Track Guard	3
Shoe Width, Triple Grouser	600 mm
Bottom Rollers Each Side	9
Top Rollers Each Side	2

Service Capacities
Fuel Tank	540 L
Engine Oil	25 L
Final Drive	5.5 x 2 L
Cooling System	25 L
Hydraulic System Total	330 L
Swing Device	4.4 L
Hydraulic Reservoir	210 L

Drive System
Drive Motor	Axial Piston Motor
Drive Reduction	Planetary Gear
Max. Drawbar Pull	248 kN
Travel Speed (High/Low)	(5.1/3.3) Km/h
Gradeability	70%) (35°)

Electrical System
Voltage	24 V
Battery	12 V, 120Ah x2
Working Lights	5

Working Range
Boom	6000 mm
Arm	2980 mm
Max. Digging Reach	10330 mm
Max. Digging Reach on Ground	10155 mm
Max. Digging Depth	6915 mm
Max. Digging Depth 2.44m (8')	6710 mm
Max. Vertical Wall Digging Depth	6060 mm
Max. Cutting Height	9815 mm
Max. Dumping Height	6830 mm
Min. Front Swing Radius	3645 mm
Bucket Digging Force (ISO)	179 kN
Arm Digging Force (ISO)	134 kN
Bucket Capacity	1.35/1.5 m³
