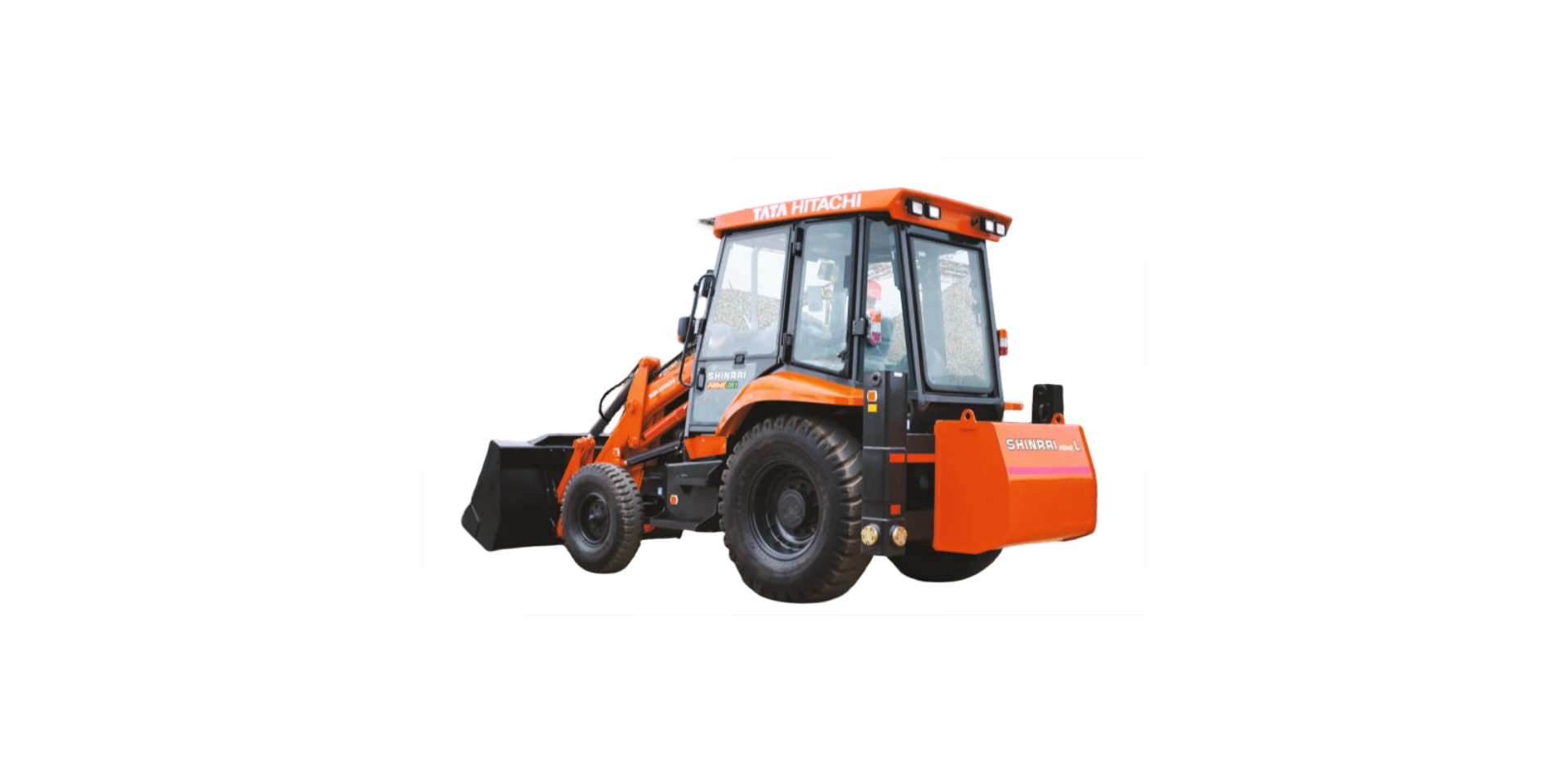

Tata Hitachi Shinrai Prime L Backhoe Loader is a versatile machine designed to handle a variety of tasks across multiple industries. In construction, it excels at earthmoving, digging, and material loading, ensuring efficiency in diverse projects. In agriculture, it is highly effective for material movement and land preparation, boosting productivity in farming operations. The Shinrai Prime L Backhoe Loader is also well-suited for waste management, performing waste handling and recycling tasks with precision and ensuring clean and efficient operations. Additionally, its robust build makes Tata Hitachi Shinrai Prime L an excellent choice for demolition activities, delivering reliable performance in breaking and material handling tasks. Tata Hitachi Shinrai Prime L is powered by a robust engine delivering a gross power of 55.4 kW, ensuring reliable performance for various tasks. With an operating weight of 7800 kg, it offers stability and durability for heavy-duty applications. The machine features a bucket capacity of 1.1 m³, making Shinrai Prime L Backhoe Loader efficient for material handling and excavation. Its compact wheelbase of 2130 mm enhances maneuverability, allowing Tata Hitachi Shinari Prime L Backhoe Loader to perform effectively in confined spaces and challenging job sites. Tata Hitachi Shinrai Prime L Backhoe Loader stands out with its innovative features, including a CEV IV Japanese engine that combines fuel efficiency with compliance to stringent emission standards. Equipped with an advanced After Treatment Device (DOC - Diesel Oxidation Catalyst), Shinrai Prime L Backhoe Loader ensures superior emission control, making it an eco-friendly choice. The loader incorporates electronically controlled parameters, optimizing performance for smoother operations and prolonged engine life, ensuring reliability even in challenging conditions. Additionally, the rotary fuel injection pump delivers precise fuel delivery, enhancing overall efficiency and performance, making Tata Hitachi Shinrai Prime L a highly dependable and cost-effective solution for diverse applications.
Engine | |||
---|---|---|---|
Make | Tata Hitachi | Model | V3800-TIE4B |
Engine Gross Power | 74.3 HP(55.4 KW) @ 2200 rpm | Max. Torque | 305 Nm @ 1500 rpm |
Electrical System | |||
---|---|---|---|
Battery | 12 V, 130 Ah |
Transmission | |||
---|---|---|---|
Max. Forward Speed | 32 km/h | Max. Reverse Speed | 9 km/h |
Transmission Type | Carraro-make synchro-shuttle transmission | Max. Forward Speed | 32 km/h |
|
Steering System | |||
---|---|---|---|
Steering Type | Hydraulic actuation with priority for smooth control |
Drive and Brake | |||
---|---|---|---|
Service Brake | Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces | Parking Brake | Hand-operated disc brake on the rear axle |
Tyres | |||
---|---|---|---|
Front Tyre size | 9x16, 16 PR | Rear Tyre size | 16.9x28, 12 PR |
Hydraulic System | |||
---|---|---|---|
Max. Pump Flow | 113 lpm @ 1950 rpm | Hydraulic System Relief Pressure | 245 bar |
Axles | |||
---|---|---|---|
Front Axle Type | Heavy-duty, non-powered axle | Rear Axle Type | rear heavy-duty Carraro axle |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 128 L | Engine Oil Capacity | 13.2 L |
Transmission Oil Capacity | 16 L | Rear Axle Oil Capacity | 17.1 L |
Dimensions | |||
---|---|---|---|
Dump Height | 2690 mm | Load over Height | 3305 mm |
Reach at Ground Level | 1620 mm | Max. Reach at Full Height | 1332 mm |
|
Engine | |
---|---|
Make | Tata Hitachi |
Model | V3800-TIE4B |
Engine Gross Power | 74.3 HP(55.4 KW) @ 2200 rpm |
Max. Torque | 305 Nm @ 1500 rpm |
Electrical System | |
---|---|
Battery | 12 V, 130 Ah |
Transmission | |
---|---|
Max. Forward Speed | 32 km/h |
Max. Reverse Speed | 9 km/h |
Transmission Type | Carraro-make synchro-shuttle transmission |
Max. Forward Speed | 32 km/h |
Max. Reverse Speed | 9 km/h |
Transmission Type | Carraro-make synchro-shuttle Transmission |
|
Steering System | |
---|---|
Steering Type | Hydraulic actuation with priority for smooth control |
Drive and Brake | |
---|---|
Service Brake | Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces |
Parking Brake | Hand-operated disc brake on the rear axle |
Tyres | |
---|---|
Front Tyre size | 9x16, 16 PR |
Rear Tyre size | 16.9x28, 12 PR |
Hydraulic System | |
---|---|
Max. Pump Flow | 113 lpm @ 1950 rpm |
Hydraulic System Relief Pressure | 245 bar |
Axles | |
---|---|
Front Axle Type | Heavy-duty, non-powered axle |
Rear Axle Type | rear heavy-duty Carraro axle |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 128 L |
Engine Oil Capacity | 13.2 L |
Transmission Oil Capacity | 16 L |
Rear Axle Oil Capacity | 17.1 L |
Dimensions | |
---|---|
Dump Height | 2690 mm |
Load over Height | 3305 mm |
Reach at Ground Level | 1620 mm |
Max. Reach at Full Height | 1332 mm |
Arm Loader Break-out Force | 5488 kgd |
Loader Bucket Capacity | 1.1 m³ |
Bucket Pin Height | 3550 mm |
Below Ground Level Dig Depth | 110 mm |
Bucket Loader Break-out Force | 6580 kgf |
|
