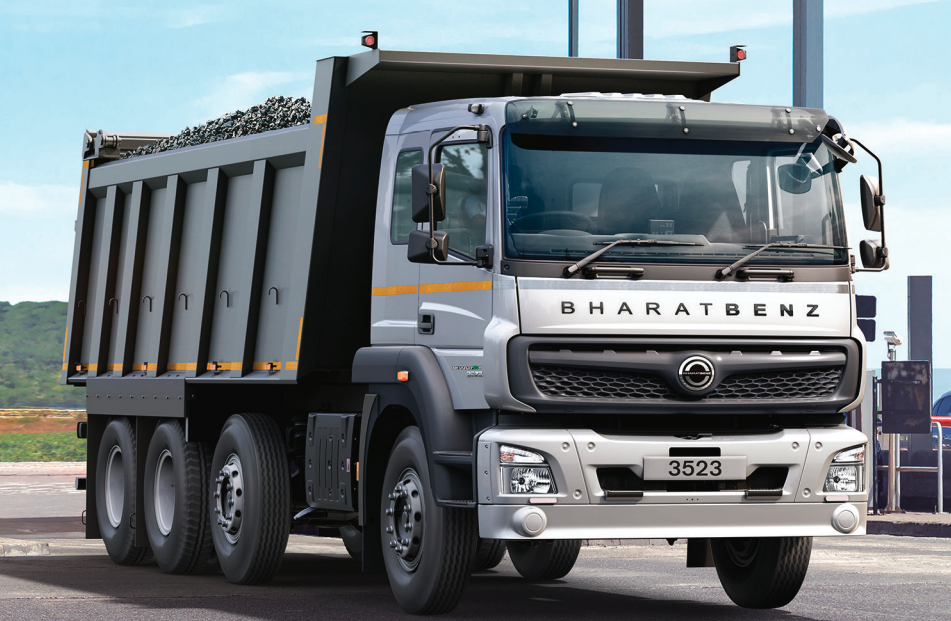

BharatBenz 3523RT Dump Truck is renowned for its versatility and exceptional performance across various sectors. In paving, it efficiently transports and dumps materials for large projects, ensuring timely completion. For site development, this 3523RT Dump Truck is ideal for hauling construction materials, soil, and debris, facilitating effective site preparation. In sewage and wastewater management, its large payload capacity makes it perfectly suited for moving and disposing of waste in large-scale operations. Additionally, when it comes to heavy equipment transport, the BharatBenz 3523RT excels at safely and efficiently hauling bulky equipment and machinery, proving its reliability in demanding environments. BharatBenz 3523RT Dump Truck is equipped with powerful specifications that enhance its performance in heavy-duty applications. With an engine gross power of 180 kW, it delivers reliable power for demanding tasks. The fuel tank capacity of 330 liters allows for extended operation without frequent refueling, while the gross vehicle weight of 35,000 kg ensures 3523RT Dump truck can handle substantial loads. Additionally, the 5775 mm wheelbase provides stability and improved handling on various terrains, making BharatBenz 3523RT an ideal choice for construction, waste management, and other heavy-duty operations. BharatBenz 3523RT Dump Truck boasts several unique selling points that make BharatBenz 3523RT an exceptional choice for heavy-duty operations. Its sleeper cabin is designed for long-haul comfort, allowing drivers to rest during extended trips, which is perfect for continuous operations. The single plate, dry-type clutch enhances transmission performance, ensuring smooth gear transitions and increased durability for demanding tasks. Additionally, the parabolic front suspension provides a smoother ride and better load management, minimizing wear and tear on rugged terrain. For safety, the dual-line service brake with ABS offers optimal stopping power, significantly improving safety when hauling heavy loads on challenging surfaces.
Engine | |||
---|---|---|---|
Model | OM 926 | Engine Gross Power | 180 KW @ 2200 rpm |
Max. Torque | 850 Nm @ 1200-1600 rpm | No. of Cylinders | 6 |
|
Electrical System | |||
---|---|---|---|
Battery | 24 V, 120 Ah | Battery Capacity | 120 Ah |
Voltage | 24 V |
Transmission | |||
---|---|---|---|
Max. Travel Speed | 60 km/h | Clutch Diameter | 395 mm |
Steering System | |||
---|---|---|---|
Steering Type | Hydraulic power assisted |
Drive and Brake | |||
---|---|---|---|
Service Brake | Pneumatic foot operated, dual line with ABS | Parking Brake | Pneumatic operated hand control valve |
Tyres | |||
---|---|---|---|
Tyre Size | 90R20 |
Suspension | |||
---|---|---|---|
Front Suspension Type | Parabolic | Rear Suspension Type | Balancer |
Axles | |||
---|---|---|---|
Front Axle Type | IF 7.0 | Rear Axle Type | IR440+ , IT-10 |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 330 L |
Operating Specifications | |||
---|---|---|---|
Gross Vehicle Weight | 35000 kg |
Dimensions | |||
---|---|---|---|
Overall Length | 8835 mm | Overall Height | 2965 mm |
Overall Width | 2490 mm | Ground Clearance | 230 mm |
|
Engine | |
---|---|
Model | OM 926 |
Engine Gross Power | 180 KW @ 2200 rpm |
Max. Torque | 850 Nm @ 1200-1600 rpm |
No. of Cylinders | 6 |
Displacement | 7.2 L |
|
Electrical System | |
---|---|
Battery | 24 V, 120 Ah |
Battery Capacity | 120 Ah |
Voltage | 24 V |
Transmission | |
---|---|
Max. Travel Speed | 60 km/h |
Clutch Diameter | 395 mm |
Steering System | |
---|---|
Steering Type | Hydraulic power assisted |
Drive and Brake | |
---|---|
Service Brake | Pneumatic foot operated, dual line with ABS |
Parking Brake | Pneumatic operated hand control valve |
Tyres | |
---|---|
Tyre Size | 90R20 |
Suspension | |
---|---|
Front Suspension Type | Parabolic |
Rear Suspension Type | Balancer |
Axles | |
---|---|
Front Axle Type | IF 7.0 |
Rear Axle Type | IR440+ , IT-10 |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 330 L |
Operating Specifications | |
---|---|
Gross Vehicle Weight | 35000 kg |
Dimensions | |
---|---|
Overall Length | 8835 mm |
Overall Height | 2965 mm |
Overall Width | 2490 mm |
Ground Clearance | 230 mm |
Wheelbase | 5775 mm |
|
