Liugong 950E
Liugong 950E

Liugong 950E

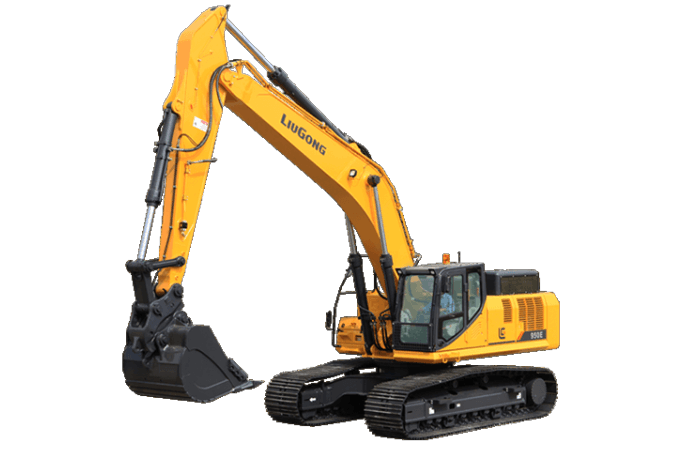

Liugong 950E Hydraulic Excavator is a highly versatile machine designed for a variety of applications. In flood control, it excels in preventing erosion, constructing flood barriers, and reinforcing riverbanks with its powerful digging capabilities. For rubble removal, it efficiently handles construction debris, demolition rubble, and natural material, making this heavy duty excavator ideal for clearing and preparing sites. The 950E Hydraulic Excavator is also well-suited for environmental remediation, using its superior excavation power to clear contaminated sites and prepare land for reclamation and restoration. In agricultural development, Liugong 950E supports tasks like land leveling, irrigation system preparation, and soil excavation, helping create fertile, well-prepared fields for farming.


Liugong 950E is powered by a robust 375 hp engine, delivering exceptional performance for heavy-duty tasks. With an operating weight of 46,500 kg, it provides stability and strength for demanding environments. This heavy duty excavator features a bucket capacity of 2.6 m³, enabling efficient material handling for large-scale projects. Additionally, its maximum digging depth of 6,521 mm allows for deep excavation, making Liugong 950E Hydraulic Excavator suitable for a wide range of construction, environmental, and agricultural applications.


Liugong 950E Hydraulic Excavator boasts several unique selling points that set it apart in its category. Its Intelligent Power Control (IPC) System optimizes fuel efficiency and power, ensuring peak performance while reducing environmental impact and operational costs. Powered by a robust 375 hp engine, this heavy duty excavator provides the necessary strength for demanding tasks like rubble removal, flood control, and environmental remediation. 950E Hydraulic Excavator is extra strong and reliable, constructed with high-strength materials to endure the toughest working environments. For maximum operator comfort, the Liugong 950E offers a spacious, ergonomic cabin with intuitive controls, helping to reduce operator fatigue and boosting productivity during long shifts.

Liugong 950E Key Specifications

Liugong 950E Features

Engine

Model QSM11
Engine Gross Power 375 hp @ 2100 rpm
Max. Torque 1898 Nm @ 1400 rpm
Displacement 10.8 L

Undercarriage

No. of Shoes 51
No. of Upper Rollers 2
No. of Bottom Rollers 9
Track Shoe Width 600 mm

Swing System

Max. Swing Speed 8.5 rpm
Min. Swing Radius 4645 mm

Drive and Brake

Max. Travel Speed 5.5 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement piston pumps
Main Pump max. Oil Flow 2 x 380 lpm
Swing Circuit 28 MPa
Travel Circuit 32.3 MPa

Refill Capacity

Fuel Tank Capacity 620 L
Engine Oil and Filter 37.8 L
Hydraulic System 520 L
Hydraulic Tank Capacity 290 L

Weight and Ground Pressure

Operating Weight 46500 kg
Ground Pressure 82.2 kPa

Dimensions

Overall Length 11515 mm
Overall Height 3550 mm
Bucket Capacity 3.2 m³
Track Gauge 2140 mm
Ground Clearance 532 mm

Working Ranges

Max. Dumping Height 7038 mm
Max. Digging Depth 6521 mm
Max. Vertical Wall Digging Depth 5204 mm
Max. Digging Reach 10625 mm
Max. Digging Reach at Ground Level 10388 mm
Boom Length 6500 mm
Arm Length 2550 mm
Bucket Digging Force 265 kN
Arm Crowding Force 280 kN
