JCB 55Z
JCB 55Z

JCB 55Z

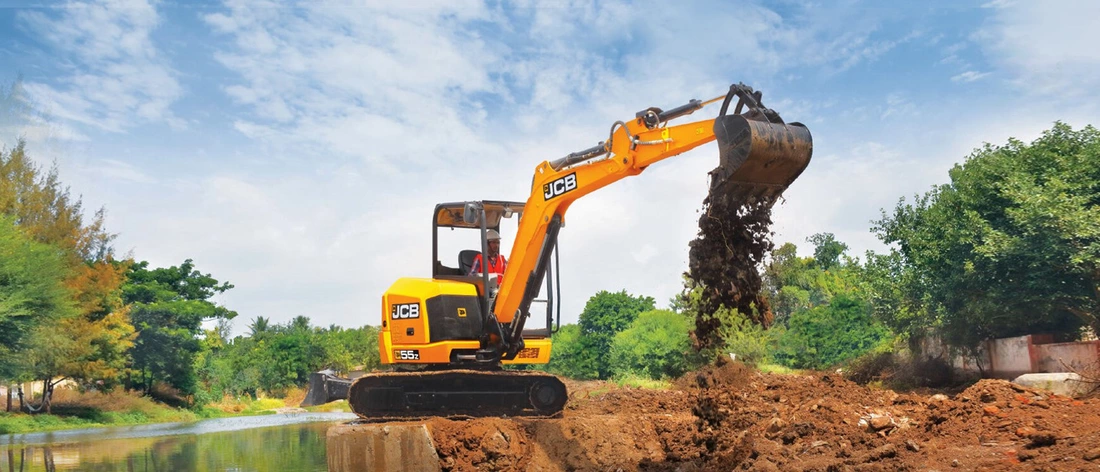

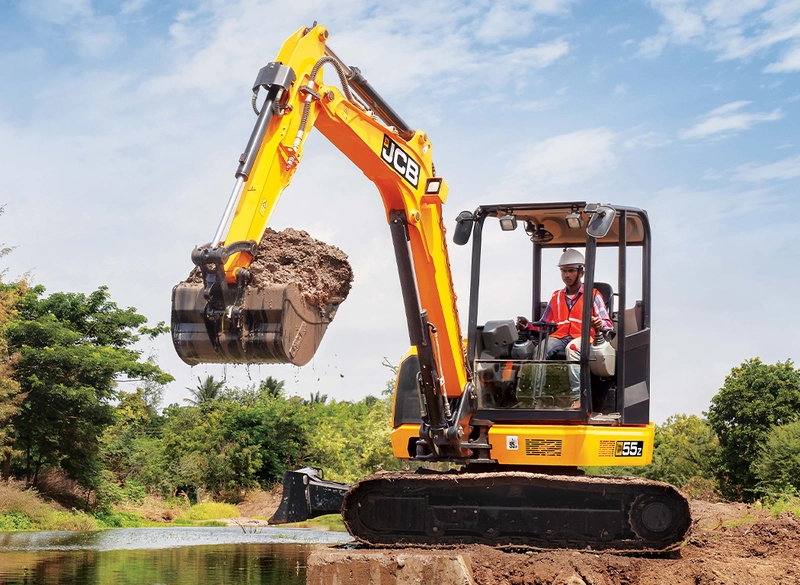

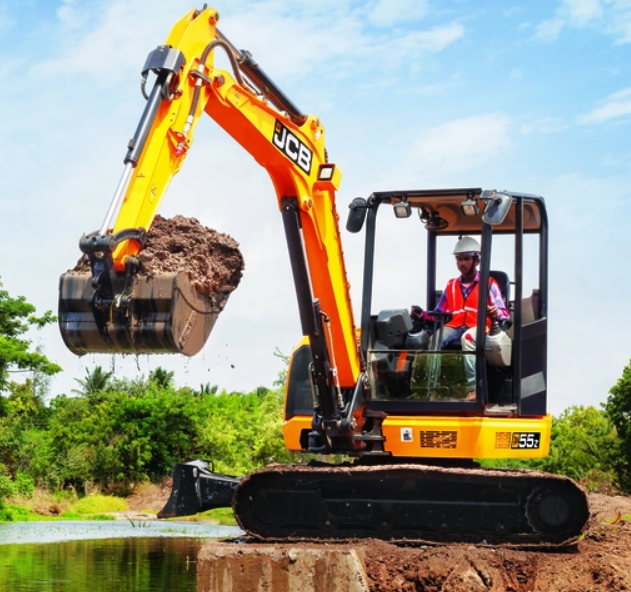

JCB 55Z Mini Excavator is designed to excel in a variety of applications, showcasing its versatility and efficiency. In demolition tasks, mini excavtor provides the power and precision necessary for tearing down structures and clearing debris, making 55Z Mini Excavator an effective choice for both small and large-scale projects. In agricultural settings, the JCB 55Z proves invaluable for tasks such as digging, trenching, and transporting materials, thus enhancing productivity on the farm. Its capabilities extend to site cleanup, where this mini excavator efficiently handles the removal of rubble and debris from construction sites or after natural disasters, ensuring a safe and organized work environment. Furthermore, during renovation projects, this mini excavator is a reliable partner, adept at digging foundations and landscaping while maintaining optimal performance in confined spaces. With its robust features and efficient operation, the JCB 55Z is an essential tool for various heavy-duty tasks. JCB 55Z is equipped with impressive specifications that enhance its performance across various applications. Mini Excavator boasts an engine gross power of 35.7 kW, providing reliable and robust performance. With an operating weight of 5520 kg, 55Z Mini Excavator maintains stability and control during operations. This mini excavator achieves a maximum digging depth of 3.84 m, allowing it to tackle deeper excavation tasks efficiently. Additionally, the maximum dump height of 4.27 m facilitates effective material handling and placement, making the JCB 55Z Mini Excavator a versatile choice for construction, demolition, and agricultural projects. JCB 55Z Mini Excavator stands out with its unique selling points that enhance its performance and operator experience. Powered by a Stage 3A 404D-22 Diesel Engine, this excavator ensures efficient fuel usage while meeting stringent emissions standards, resulting in a lower environmental impact. The auto idler with a one-touch feature automatically adjusts the engine speed based on workload, optimizing fuel consumption and improving overall efficiency. Operator comfort is prioritized with a fully adjustable suspension seat, which reduces fatigue during long hours of operation, promoting a more productive work environment. Additionally, the heavy-duty boom with internal baffle plates offers enhanced strength and durability, enabling the JCB 55Z to handle demanding excavation tasks with ease, making it an ideal choice for a variety of applications.

JCB 55Z Key Specifications

JCB 55Z Features

Engine
Model Stage 3A 404D-22
Type Water cooled diesel engine
Engine Gross Power 35.7 KW @ 2600 rpm
Max. Torque 143 Nm @ 1800 rpm
Displacement 2.17 L
Undercarriage
No. of Upper Rollers 1
No. of Bottom Rollers 4
Track Shoe Width 400 mm
Swing System
Max. Swing Speed 8.3 rpm
Min. Swing Radius 2.16-2.64 m
Drive and Brake
Max. Travel Speed 4.6 km/h
Hydraulic System
Main Pump Type Piston
Main Pump max. Oil Flow 126 lpm @ 2000 rpm
Refill Capacity
Fuel Tank Capacity 76 L
Engine Oil and Filter 9.1 L
Hydraulic System 100 L
Hydraulic Tank Capacity 55 L
Weight and Ground Pressure
Operating Weight 5520 kg
Dimensions
Overall Length 5.52 m
Overall Height 2.55 m
Bucket Capacity 0.14-0.22 m³
Track Gauge 1.55 m
Ground Clearance 300 mm
Working Ranges
Max. Dumping Height 4.27 m
Max. Digging Depth 3.61-3.84 m
Max. Vertical Wall Digging Depth 2.05 m
Max. Digging Reach 6.2 m
Max. Digging Reach at Ground Level 6.0 m
Boom Length 2.86 m
Arm Length 1.57 m
Bucket Digging Force 42 kN
Arm Crowding Force 29 kN
