ACE 15XWE

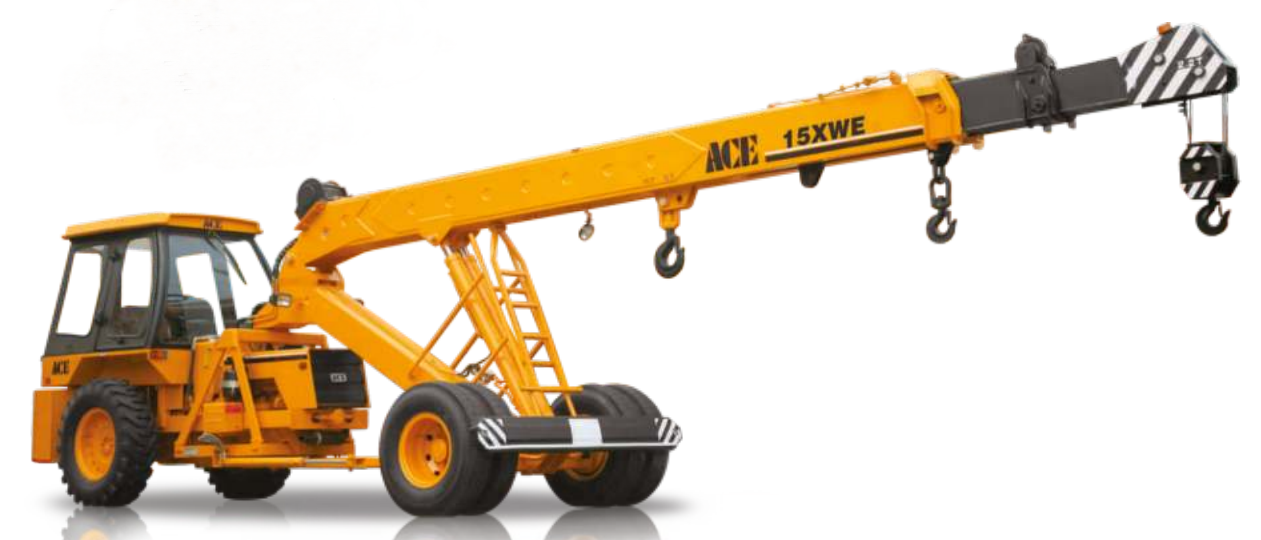

ACE 15 XWE Hydraulic Mobile Crane is exceptionally versatile, making it suitable for various applications. In industrial maintenance, 15 XWE Hydraulic Mobile Crane excels at lifting heavy machinery and equipment for repairs and maintenance tasks. For utilities and power generation, ACE 15 XWE is perfect for installing and maintaining power lines and associated equipment. In the telecommunications sector, it efficiently handles the installation and upkeep of telecommunication towers and equipment. Additionally, during demolition projects, the ACE 15 XWE provides the strength and maneuverability necessary for safe and effective dismantling of structures. ACE 15 XWE boasts an impressive lifting capacity of 15 tons, making it a powerful tool for various lifting tasks. Equipped with a robust 48 HP engine, 15 XWE Hydraulic Mobile Crane delivers reliable power, effortlessly handling heavy loads. It features a maximum lifting height of 17.7 meters, allowing operators to perform high-level tasks with precision and safety. Additionally, with a 45-liter fuel tank capacity, the ACE 15 XWE ensures longer operational hours, making it an ideal choice for extended projects and demanding job sites. ACE 15 XWE Hydraulic Mobile Crane incorporates several advanced features that significantly enhance its functionality and safety. The Audio Over Hoisting Indication alerts operators when 15 XWE Hydraulic Mobile Crane approaches its lifting limit, preventing overloading and ensuring safe operations. Equipped with a 9-Speed Synchromesh Gear Box with Crawler Box Transmission, this advanced system allows for smooth operation and precise control, making it easier to maneuver in tight spaces. The Pneumatically Assisted Hydraulic Brakes provide enhanced stopping power, ensuring safety during heavy lifting operations. Additionally, the ACE 15 XWE Hydraulic Mobile Crane features a Self-Adjusting Hook Block that simplifies load handling and enhances efficiency. This innovative design allows for quick adjustments without compromising safety, making it easier for operators to manage various lifting tasks effectively.

ACE 15XWE Features

Engine
Model	Simpson S433 F1	Type	4 Cylinder, water cooled diesel engine
Engine Gross Power	48 BHP(36 KW) @ 2200 rpm	No. of Cylinder	4

Electrical System
Battery	12 V, 88 Ah Negative earth with 35 Ah alternator	Voltage	12 V

Transmission
Transmission Type	Heavy duty, sliding mesh	Clutch Type	Heavy duty, single, dry friction, wire woven clutch plate with diaphragm type pressure plate
Max. Travel Speed	28 km/h

Steering System
Steering Type	Lever operated	Articulation Angle	55°
Turning Radius	6.5 m

Drive and Brake
Service Brake	Pneumatically assisted hydraulic brakes

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)	Rear Tyre Size	14.00x25-12 PR (2 Nos.)

Refill Capacity
Fuel Tank Capacity	45 L

Hoist and Winch System
Hoist Rope Diameter	13 mm	Hoist Single Line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	15 T

Engine
Model	Simpson S433 F1
Type	4 Cylinder, water cooled diesel engine
Engine Gross Power	48 BHP(36 KW) @ 2200 rpm
No. of Cylinder	4

Electrical System
Battery	12 V, 88 Ah Negative earth with 35 Ah alternator
Voltage	12 V

Transmission
Transmission Type	Heavy duty, sliding mesh
Clutch Type	Heavy duty, single, dry friction, wire woven clutch plate with diaphragm type pressure plate
Max. Travel Speed	28 km/h

Steering System
Steering Type	Lever operated
Articulation Angle	55°
Turning Radius	6.5 m

Drive and Brake
Service Brake	Pneumatically assisted hydraulic brakes

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)
Rear Tyre Size	14.00x25-12 PR (2 Nos.)

Refill Capacity
Fuel Tank Capacity	45 L

Hoist and Winch System
Hoist Rope Diameter	13 mm
Hoist Single Line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	15 T
