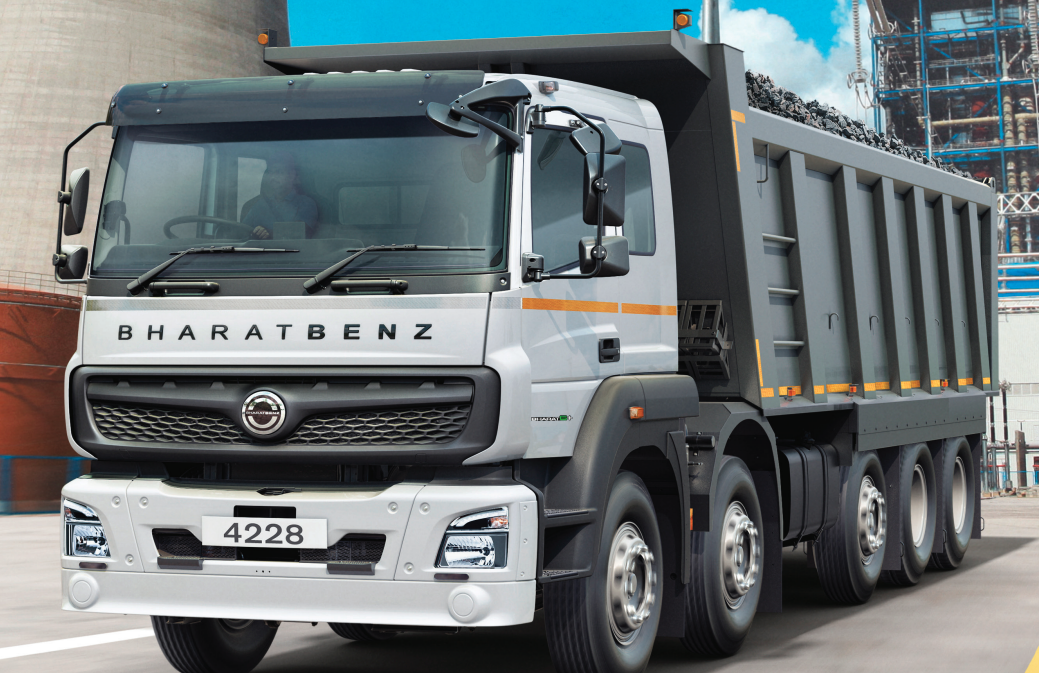

BharatBenz 4228RT Dump Truck is a versatile and highly effective solution across various sectors. In flood control and mitigation, it efficiently transports materials and equipment to manage flood risks and maintain drainage systems. For forestry and logging, this 4228RT Dump Truck is ideal for hauling timber and other forestry products, ensuring smooth transport from remote sites to processing areas. Its capabilities extend to recycling operations, where it effectively manages the transportation of recyclable materials, supporting eco-friendly practices in waste management. Additionally, in railroad projects, the BharatBenz 4228RT is designed to handle heavy loads associated with railroad construction and maintenance, making it a vital asset for any railway project. BharatBenz 4228RT is designed to deliver exceptional performance and reliability across various heavy-duty applications. With a robust engine that provides a gross power of 210 kW, this truck ensures efficient operation while managing demanding loads. Its impressive fuel tank capacity of 330 liters supports extended operational periods, reducing downtime for refueling. The 4228RT Dump Truck boasts a gross vehicle weight of 42,000 kg, making it suitable for transporting substantial materials without compromising performance. Additionally, the 6575 mm wheelbase enhances stability and maneuverability, making the BharatBenz 4228RT an ideal choice for challenging terrains and heavy-duty tasks. BharatBenz 4228RT Dump Truck stands out in the heavy-duty market with several unique selling points that enhance its performance and usability. The single tyre lift rear axle feature significantly improves maneuverability and load distribution, making 4228RT Dump Truck easier to handle heavy loads in rough terrains. Its mechanical synchromesh gearbox ensures smooth shifting and improved performance, allowing for reliable gear transitions and efficient power delivery. The pneumatically operated hand control valve parking brake enhances safety during loading and unloading operations by providing secure stopping capabilities. Additionally, the balancer rear suspension system offers excellent stability and comfort, reducing wear on the vehicle while effectively accommodating heavy loads, making the BharatBenz 4228RT an excellent choice for diverse applications.
Engine | |||
---|---|---|---|
Model | Om 926 | Engine Gross Power | 210 KW @ 2200 rpm |
Max. Torque | 1100 Nm @ 1200-1600 rpm | No. of Cylinders | 6 |
|
Electrical System | |||
---|---|---|---|
Battery | 24 V, 120 Ah | Battery Capacity | 120 Ah |
Voltage | 24 V |
Transmission | |||
---|---|---|---|
Max. Travel Speed | 60 km/h | Clutch Diameter | 395 mm |
Steering System | |||
---|---|---|---|
Steering Type | Hydraulic power assisted |
Drive and Brake | |||
---|---|---|---|
Service Brake | Pneumatic foot operated, dual line with ABS | Parking Brake | Pneumatic operated hand control valve |
Tyres | |||
---|---|---|---|
Tyre Size | 90R20 |
Suspension | |||
---|---|---|---|
Front Suspension Type | Parabolic | Rear Suspension Type | Balancer |
Axles | |||
---|---|---|---|
Front Axle Type | IF 7.0 | Rear Axle Type | IRT390-11 |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 330 L |
Operating Specifications | |||
---|---|---|---|
Gross Vehicle Weight | 42000 kg |
Dimensions | |||
---|---|---|---|
Overall Length | 9635 mm | Overall Height | 2955 mm |
Overall Width | 2490 mm | Ground Clearance | 247 mm |
|
Engine | |
---|---|
Model | Om 926 |
Engine Gross Power | 210 KW @ 2200 rpm |
Max. Torque | 1100 Nm @ 1200-1600 rpm |
No. of Cylinders | 6 |
Displacement | 7.2 L |
|
Electrical System | |
---|---|
Battery | 24 V, 120 Ah |
Battery Capacity | 120 Ah |
Voltage | 24 V |
Transmission | |
---|---|
Max. Travel Speed | 60 km/h |
Clutch Diameter | 395 mm |
Steering System | |
---|---|
Steering Type | Hydraulic power assisted |
Drive and Brake | |
---|---|
Service Brake | Pneumatic foot operated, dual line with ABS |
Parking Brake | Pneumatic operated hand control valve |
Tyres | |
---|---|
Tyre Size | 90R20 |
Suspension | |
---|---|
Front Suspension Type | Parabolic |
Rear Suspension Type | Balancer |
Axles | |
---|---|
Front Axle Type | IF 7.0 |
Rear Axle Type | IRT390-11 |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 330 L |
Operating Specifications | |
---|---|
Gross Vehicle Weight | 42000 kg |
Dimensions | |
---|---|
Overall Length | 9635 mm |
Overall Height | 2955 mm |
Overall Width | 2490 mm |
Ground Clearance | 247 mm |
Wheelbase | 6575 mm |
|
