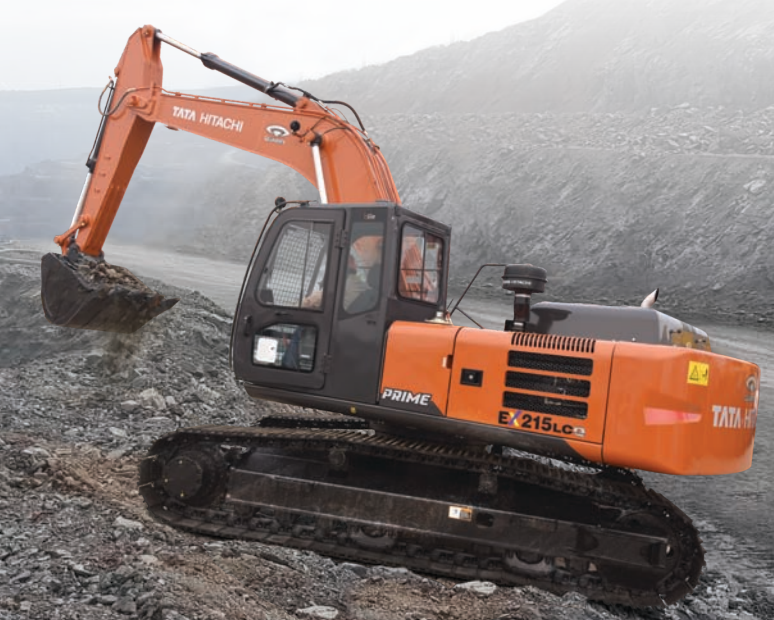

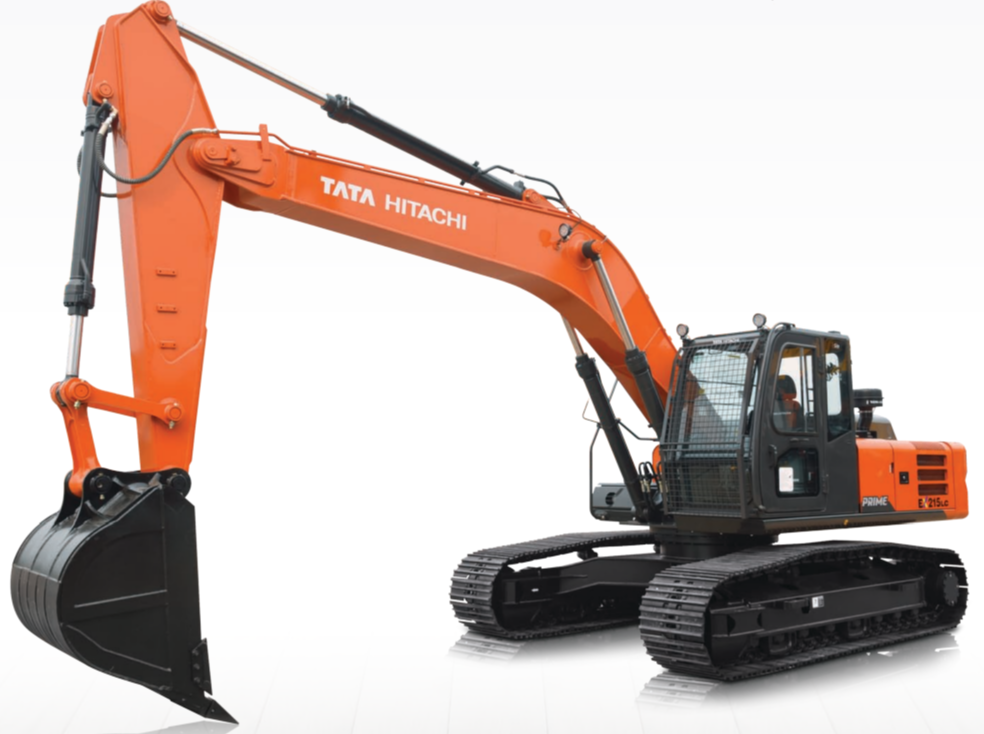

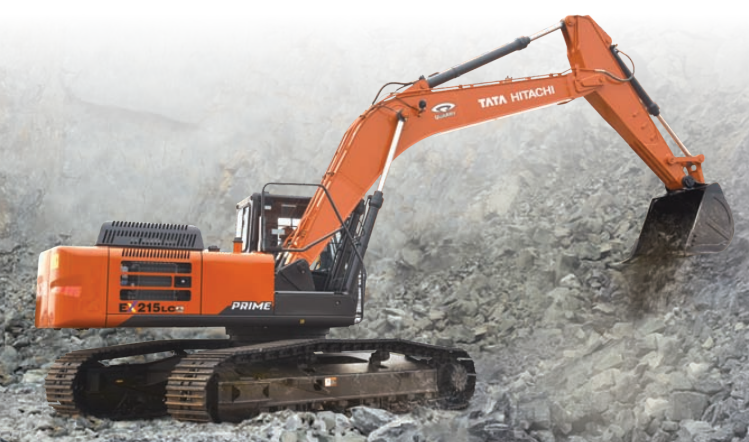

Tata Hitachi EX 215 LCQ Prime Hydraulic Excavator is a versatile and powerful machine, expertly engineered to tackle demanding tasks across various industries. EX 215 LCQ Prime Hydraulic excavator excels in mining, construction, infrastructure, solid waste management, and quarry operations. With its sturdy build and innovative features, the EX 215 LCQ Prime is the go-to machine for projects requiring high performance and reliability. Whether operating in rugged quarries or complex construction sites, the Tata Hitachi EX 215 LCQ Prime is designed to deliver powerful, fuel-efficient results, making it a vital asset for any operation. Tata Hitachi EX 215 LCQ Prime is powered by a robust 140 HP engine and has an operating weight of 21,250 KG, ensuring optimal performance in even the most challenging environments. With a bucket capacity of 1.02 m³ and a bucket digging force of 12,250 kgf, it offers exceptional digging power for efficient material handling and excavation. The machine's maximum digging depth of 5,910 mm makes it perfect for deep and precise excavations, ideal for projects requiring high accuracy and efficiency. Tata Hitachi EX 215 LCQ Prime Hydraulic Excavator is equipped with an advanced Intelligent Optimum Hydraulic System, enhancing operational efficiency by optimizing hydraulic flow and improving the performance of various attachments. Tata Hitachi EX 215 LCQ's auto idle and auto deceleration functions help conserve fuel by automatically reducing engine speed when the machine is idle, significantly contributing to lower operational costs. The fuel-saving pump system further boosts efficiency, making the EX 215 LCQ Prime Hydraulic Excavator an economical choice for mining, construction, infrastructure, solid waste management, and quarry operations. Additionally, the improved bucket cylinder provides enhanced strength and durability, ensuring this excavator can withstand the rigors of tough job sites while delivering powerful and reliable performance.
Engine | |||
---|---|---|---|
Model | Cummins 6BT5.9C | Type | 6 Cylinder water cooled, direct injection |
Engine Gross Power | 140 HP @ 2000 rpm | Max. Torque | 566 Nm @ 1600 rpm |
Undercarriage | |||
---|---|---|---|
No. of Shoes | 49 | No. of Upper Rollers | 2 |
No. of Bottom Rollers | 8 | Track Shoe Width | 600 mm |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 13.3 rpm | Min. Swing Radius | 3720 mm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 4.2 km/h | Gradeability | 35°(70%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 2 Variable displacements axial piston pumps | Main Pump max. Oil Flow | 2x221 lpm |
Swing Circuit | 275 kgf/cm² | Travel Circuit | 350 kgf/cm² |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 300 L | Engine Oil Capacity | 22 L |
Hydraulic System | 220 L | Hydraulic Tank Capacity | 129 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 21250 kg | Ground Pressure | 0.44 kgf/cm² |
Dimensions | |||
---|---|---|---|
Overall Length | 9720 mm | Overall Height | 2850 mm |
Bucket Capacity | 1.02 m³ | Track Gauge | 2390 mm |
|
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 6230 mm | Max. Digging Depth | 5910 mm |
Max. Vertical Wall Digging Depth | 5050 mm | Max. Digging Reach | 9250 mm |
|
Engine | |
---|---|
Model | Cummins 6BT5.9C |
Type | 6 Cylinder water cooled, direct injection |
Engine Gross Power | 140 HP @ 2000 rpm |
Max. Torque | 566 Nm @ 1600 rpm |
Undercarriage | |
---|---|
No. of Shoes | 49 |
No. of Upper Rollers | 2 |
No. of Bottom Rollers | 8 |
Track Shoe Width | 600 mm |
Swing System | |
---|---|
Max. Swing Speed | 13.3 rpm |
Min. Swing Radius | 3720 mm |
Drive and Brake | |
---|---|
Max. Travel Speed | 4.2 km/h |
Gradeability | 35°(70%) |
Hydraulic System | |
---|---|
Main Pump Type | 2 Variable displacements axial piston pumps |
Main Pump max. Oil Flow | 2x221 lpm |
Swing Circuit | 275 kgf/cm² |
Travel Circuit | 350 kgf/cm² |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 300 L |
Engine Oil Capacity | 22 L |
Hydraulic System | 220 L |
Hydraulic Tank Capacity | 129 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 21250 kg |
Ground Pressure | 0.44 kgf/cm² |
Dimensions | |
---|---|
Overall Length | 9720 mm |
Overall Height | 2850 mm |
Bucket Capacity | 1.02 m³ |
Track Gauge | 2390 mm |
Ground Clearance | 450 mm |
|
Working Ranges | |
---|---|
Max. Dumping Height | 6230 mm |
Max. Digging Depth | 5910 mm |
Max. Vertical Wall Digging Depth | 5050 mm |
Max. Digging Reach | 9250 mm |
Max. Digging Reach at Ground Level | 9060 mm |
Boom Length | 5680 mm |
Arm Length | 2200 mm |
Bucket Digging Force | 11000 kgf |
Arm Crowding Force | 11300 kgf |
|
