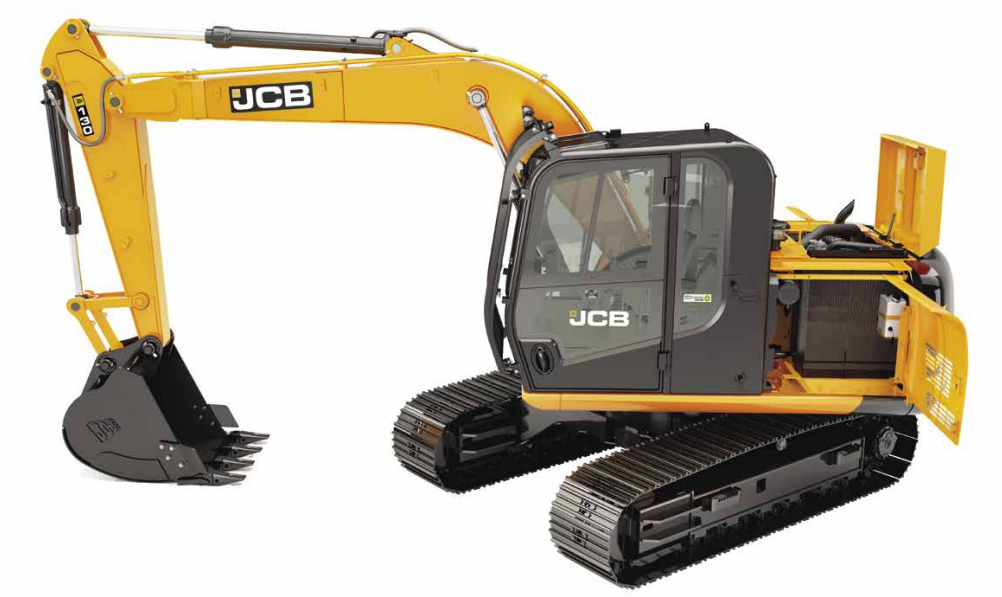

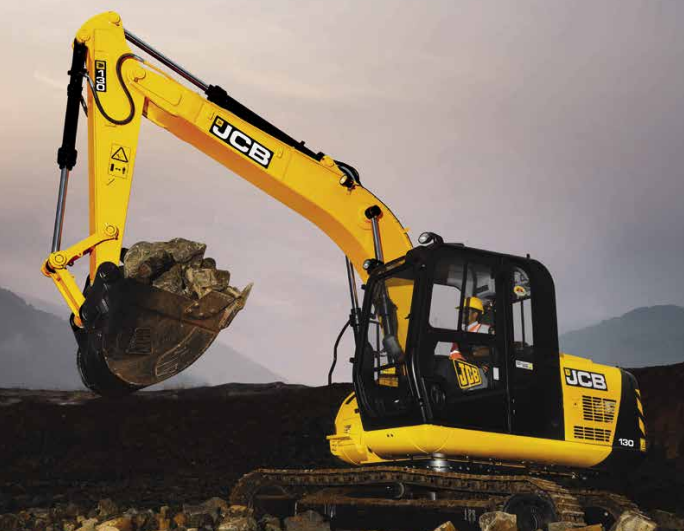

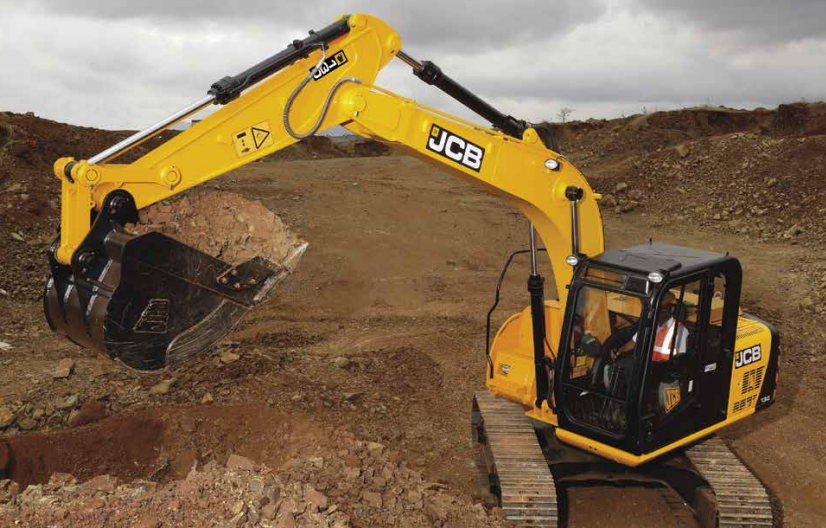

JCB 130

JCB 130 Hydraulic Excavator is designed to excel in various applications, providing reliable performance across multiple industries. In road construction, this excavator efficiently handles tasks such as digging foundations and grading, ensuring robust support for development projects. For utilities and pipeline installation, 130 Hydraulic Excavator offers precision and speed, making it an essential tool for utility contractors. Its capability extends to dredging operations, where it effectively removes materials for land reclamation, demonstrating its power and versatility. Additionally, in the agriculture sector, this high-performance excavator enhances productivity by assisting with tasks ranging from land clearing to trenching, making JCB 130 a valuable asset for farming operations. JCB 130 features key specifications that enhance its performance and versatility. this excavator is powered by a robust 60 kW engine, enabling efficient operation across various applications. With an operating weight of 12,800 kg, 130 Hydraulic Excavator provides stability and strength for demanding tasks. The prductive-enhancing excavator achieves a maximum digging depth of 4.83 m, allowing it to tackle deep excavation projects effectively. Additionally, it accommodates a bucket capacity ranging from 0.5 to 0.65 m³, making JCB 130 Hydraulic Excavator suitable for handling different materials and optimizing productivity on the job site. JCB 130 Hydraulic Excavator stands out with several unique selling points that enhance its functionality and operator experience. JCB 130 offers selectable Productivity (P) and Economy (E) modes, allowing operators to tailor performance to specific job requirements, maximizing efficiency without sacrificing power. Additionally, 130 Hydraulic excavator is equipped with twin travel speeds, providing the flexibility needed to navigate various terrains and job site conditions effectively. Operator comfort is prioritized with a vibration-absorbing cab mounted on six viscous mounts, significantly reducing fatigue during extended work hours. Furthermore, its heavy-duty X-frame with a belly guard enhances durability and offers superior protection for the excavator's components, ensuring longevity and reliability even in the most challenging environments.

JCB 130 Features

Engine
Model	JCB 444 NA	Type	Water cooled, 4 stroke, 4-cylinder, direct injection
Engine Gross Power	80 HP @ 2000 rpm	Displacement	4.4 L

Undercarriage
No. of Shoes	42	No. of Upper Rollers	1
No. of Bottom Rollers	6	Track Shoe Width	500 mm

Swing System
Max. Swing Speed	12 rpm	Min. Swing Radius	2.14 m

Drive and Brake
Max. Travel Speed	4.6 km/h	Gradability	35°(70%)

Hydraulic System
Main Pump Type	2 no’s variable displacement axial piston	Main Pump max. Oil Flow	2 x 117 lpm
Swing Circuit	279 bar	Travel Circuit	320 bar

Refill Capacity
Fuel Tank Capacity	253 L	Engine Oil and Filter	14 L
Hydraulic System	124 L	Hydraulic Tank Capacity	73 L

Weight and Ground Pressure
Operating Weight	12800 kg	Ground Pressure	0.45 kg/cm²

Dimensions
Overall Length	7.27 m	Overall Height	2.86 m
Bucket Capacity	0.5-0.65 m³	Track Gauge	1.99 m
Ground Clearance	464 mm

Working Ranges
Max. Dumping Height	6.12 m	Max. Digging Depth	4.83 m
Max. Vertical Wall Digging Depth	4.28 m	Max. Digging Reach	7.61 m
Max. Digging Reach at Ground Level	7.45 m	Boom Length	4.40 m
Arm Length	1.95 m	Bucket Digging Force	8614 kgf
Arm Crowding Force	5792 kgf

Engine
Model	JCB 444 NA
Type	Water cooled, 4 stroke, 4-cylinder, direct injection
Engine Gross Power	80 HP @ 2000 rpm
Displacement	4.4 L

Undercarriage
No. of Shoes	42
No. of Upper Rollers	1
No. of Bottom Rollers	6
Track Shoe Width	500 mm

Swing System
Max. Swing Speed	12 rpm
Min. Swing Radius	2.14 m

Drive and Brake
Max. Travel Speed	4.6 km/h
Gradability	35°(70%)

Hydraulic System
Main Pump Type	2 no’s variable displacement axial piston
Main Pump max. Oil Flow	2 x 117 lpm
Swing Circuit	279 bar
Travel Circuit	320 bar

Refill Capacity
Fuel Tank Capacity	253 L
Engine Oil and Filter	14 L
Hydraulic System	124 L
Hydraulic Tank Capacity	73 L

Weight and Ground Pressure
Operating Weight	12800 kg
Ground Pressure	0.45 kg/cm²

Dimensions
Overall Length	7.27 m
Overall Height	2.86 m
Bucket Capacity	0.5-0.65 m³
Track Gauge	1.99 m
Ground Clearance	464 mm

Working Ranges
Max. Dumping Height	6.12 m
Max. Digging Depth	4.83 m
Max. Vertical Wall Digging Depth	4.28 m
Max. Digging Reach	7.61 m
Max. Digging Reach at Ground Level	7.45 m
Boom Length	4.40 m
Arm Length	1.95 m
Bucket Digging Force	8614 kgf
Arm Crowding Force	5792 kgf
