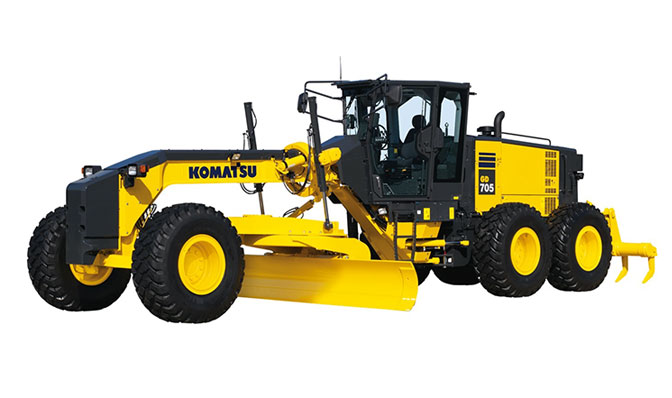

Komatsu GD705-5 Motor Grader

The Komatsu GD705-5 motor grader is built for maximum productivity, featuring a high-performance Komatsu SAA6D114E-3 engine, an operator-friendly suspension seat, and an advanced electronic monitoring system.

Ideal for tasks such as earthmoving, grading, landscaping, and more, the GD705-5 delivers cutting-edge precision without compromising in performance.

Its robust engine generates 260 kW of power and 1130 Nm of torque and provides accurate work even on uneven surfaces. With a 408 L fuel tank, it completes any operations without frequent refuelling.

*Ex-Showroom Price

Coming Soon

Komatsu GD705-5 Key Specifications

Komatsu GD705-5 Features

Engine

Model Komatsu SAA6D114E-3

Engine Gross Power 260 KW(194 HP) @ 1950 rpm

Max. Torque 1130 Nm @ 1450 rpm

No. of Cylinders 6

Bore 114 mm

Stroke 135 mm

Displacement 8.27 L

Transmission

Max. Forward Speed 42.5 km/h

Max. Reverse Speed 34.1 km/h

Steering System

Steering Type Hydraulic power steering

Steering Angle 50°

Articulation Angle 27°

Min. Turning Radius 7.6 m

Drive and Brake

Service Brake . Foot operated, sealed oil disc brakes, hydraulically actuated on four tandem wheels

Parking Brake Manually actuated, spring applied, hydraulically released caliper

Tyres

Tyre Size 16.00-24, with tube

Hydraulic System

Main Pum Type Variable displacement piston pump

Axles

Front Axle Type Solid bar construction welded steel sections

Rear Axle Type Alloy steel, heat treated, full floating axle

Oscillation Angle 32°

Refill Capacity

Fuel Tank Capacity 408 L

Transmission Oil Capacity 62 L

Blade Range

Max. Lift above Ground 450 mm

Max. Depth of Cut 710 mm

Operating Specifications

Operating Weight 19300 kg

Weight on Front Axle 5500 kg

Weight on Rear Axle 13800 kg

Dimensions

Overall Length 11050 mm

Overall Height 3260 mm

Wheelbase 6800 mm

Top Applications of Komatsu GD705-5

Road Construction

The Komatsu GD705-5 offers precise grading and surface leveling for road construction and delivers smooth and accurate results for highways, streets, and infrastructure projects.

Snow Removal

Widely used in cold locations, the Komatsu GD705-5 clears snow from roads, highways, and large open areas, maintaining a safe and secure path.

Quarry Sites

On Quarry Sites, the Komatsu GD705-5 hauls roads with its high-precision blade, allowing trucks to move safely with huge material loads.

Landscaping

GD705-5 is helping to make parks, gardens, and large outdoor spaces by providing flat surfaces with its high-performance blade. Makes landscape work faster and more accurate.

Earthmoving

The Komatsu GD705-5 is built for moving and leveling soil for building sites, mining areas, and farming operations.
